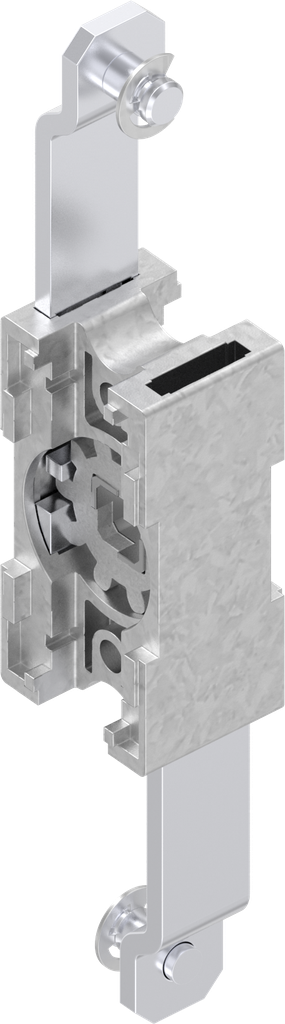

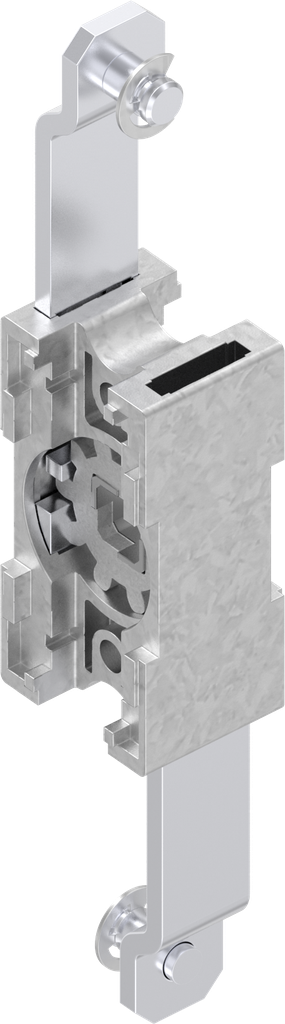

Rod control for flat rods or round rods, Zinc die and steel zinc-plated; 1121-U1-C

https://www.emka.com/products/1121-u1-c https://www.emka.com/web/image/product.template/64482/image_1920?unique=d190e6a

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

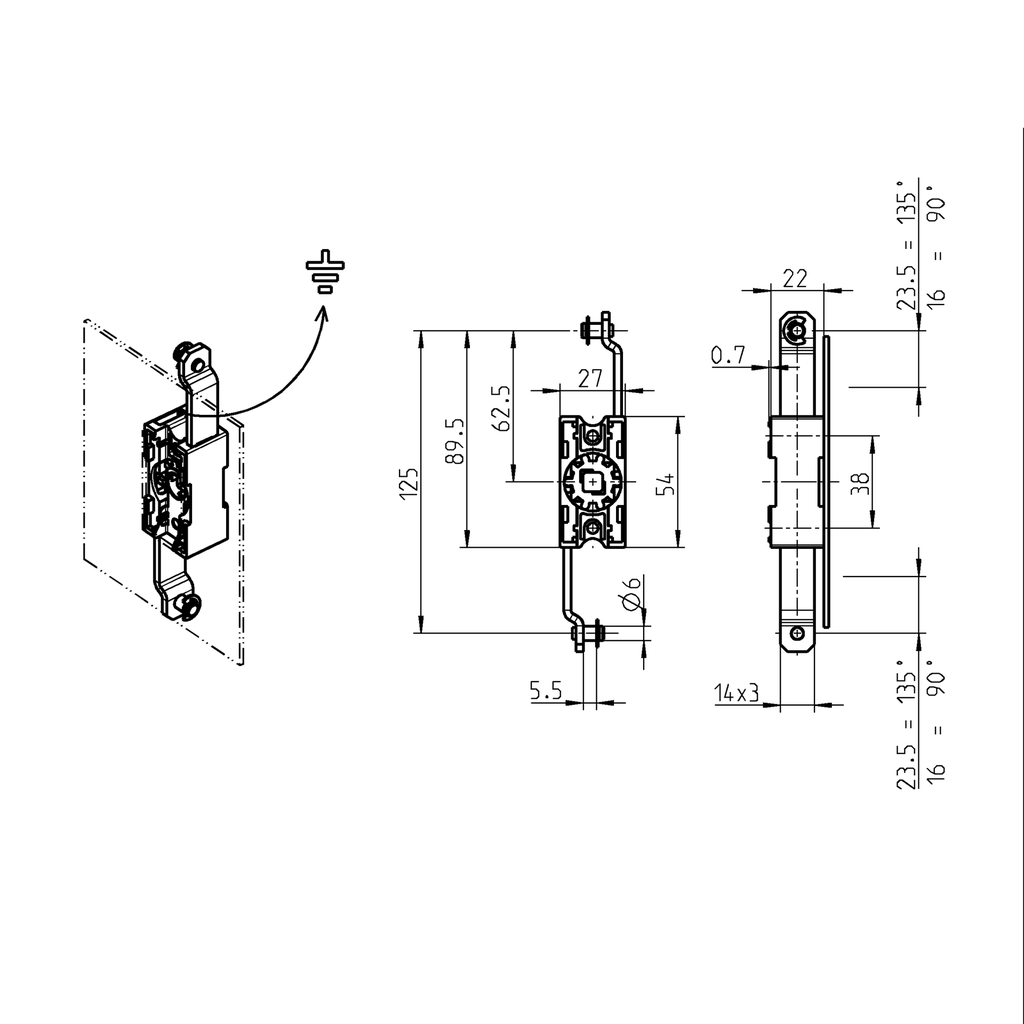

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U1-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-160
    Material of the module : Zinc die and steel
    Surface of the module: zinc-plated
    Rod: Flat rod,Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Rod control accessories
    Adapter

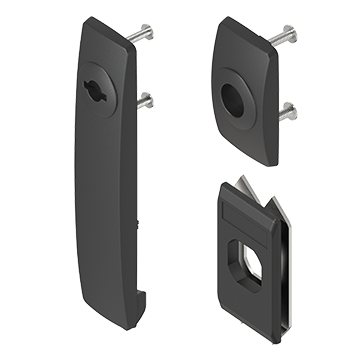

    Escutcheon
