Catch for rod with locking slider, Zinc die black powder-coated
Catch for rod with locking slider, Zinc die black powder-coated
Flat rod with notch, Steel zinc-plated
Flat rod with notch, Steel zinc-plated

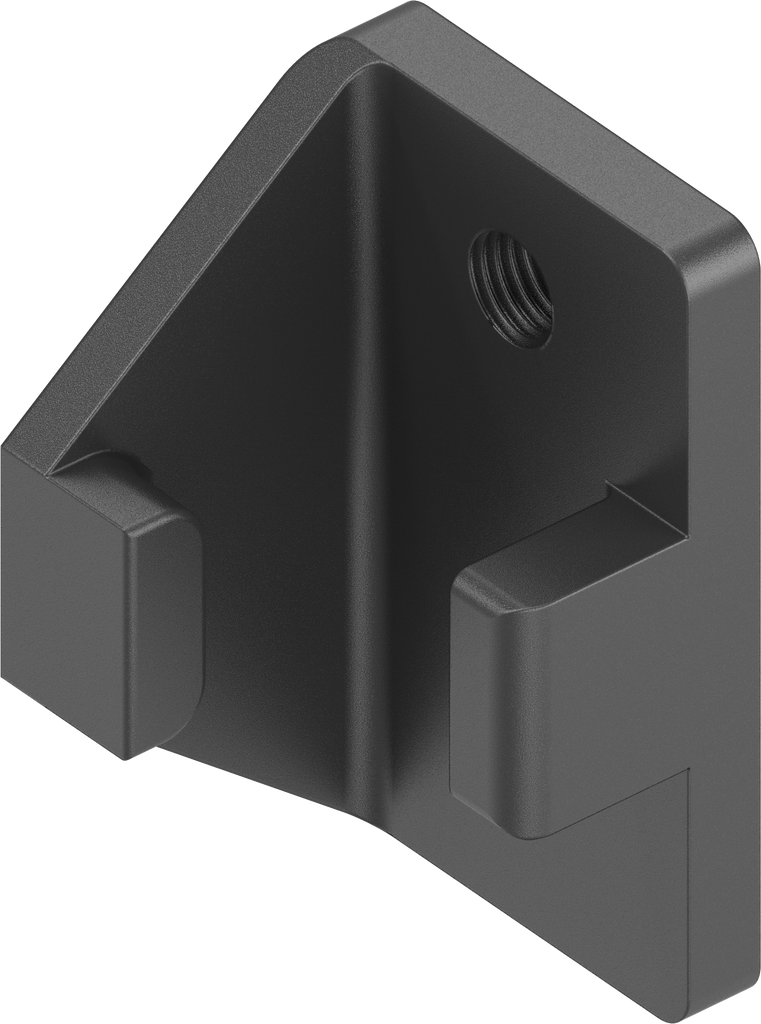

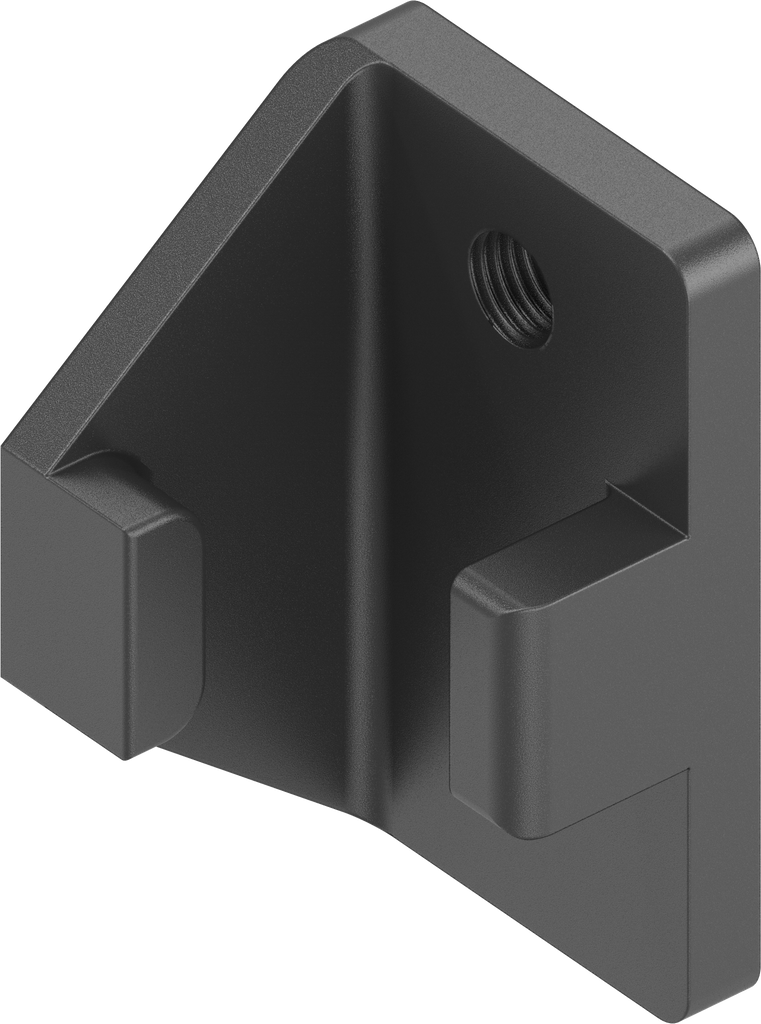

Catch for rod with locking slider, Zinc die black powder-coated; 1121-54-P

https://www.emka.com/products/1121-54-p https://www.emka.com/web/image/product.template/64332/image_1920?unique=0705b63

    This combination does not exist.

    Outside the sealing
    Contact Us

    Product information:

    Catch interchangeable with 120° hinge, catalogue page 4A-190, or 180° hinge, catalogue page 4A-210
    Internal Reference: 1121-54-P
    Product Type: Catch
    Material: Zinc die
    Program: 1121
    Surface: black powder-coated
    Catalog sheet: 3ZA-1220
    Type of fastening: with female thread M6
    Mounting Positions : Outside the sealing
    Flat Bar Size: Flat rod 14 x 3
    Locking system type: Flat rod with locking slider
    No Specifications
    View All Products
    Rod
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZA-1220
    Product data sheet
    CAD file | 1121-54-P_igs
    CAD file | 1121-54-P_stp
