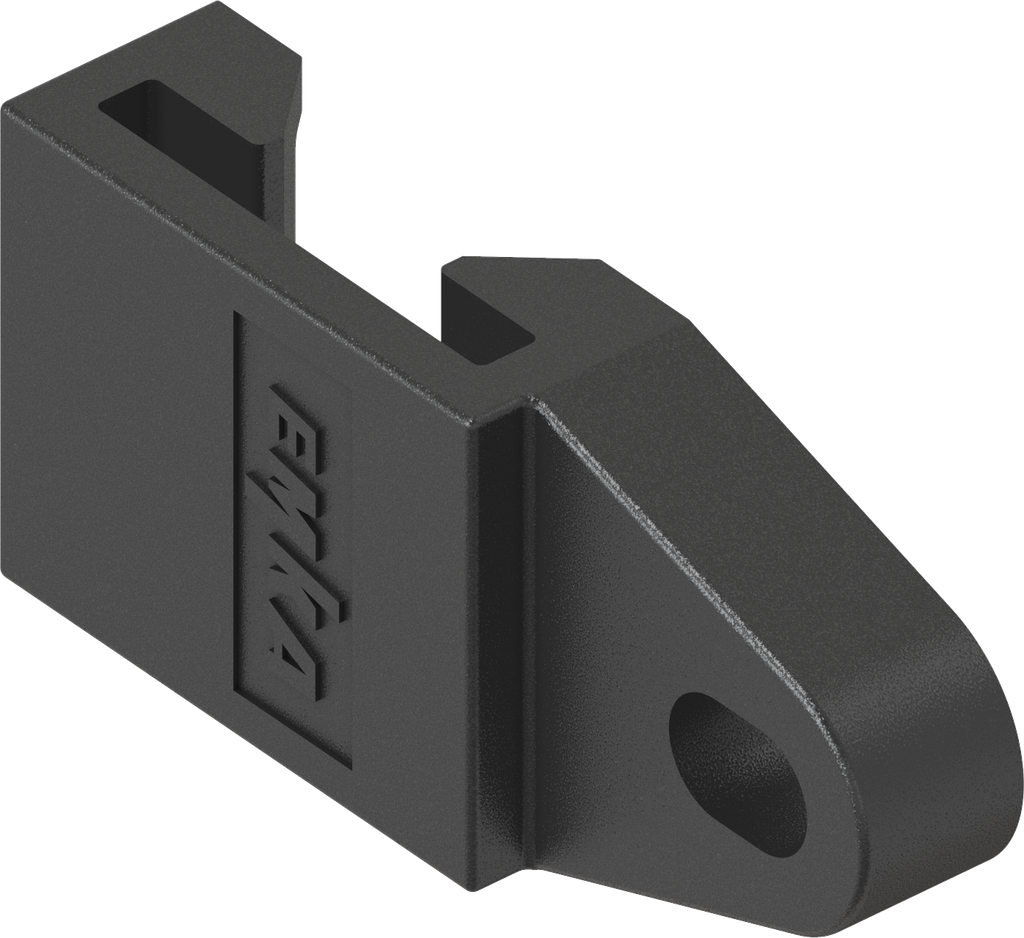

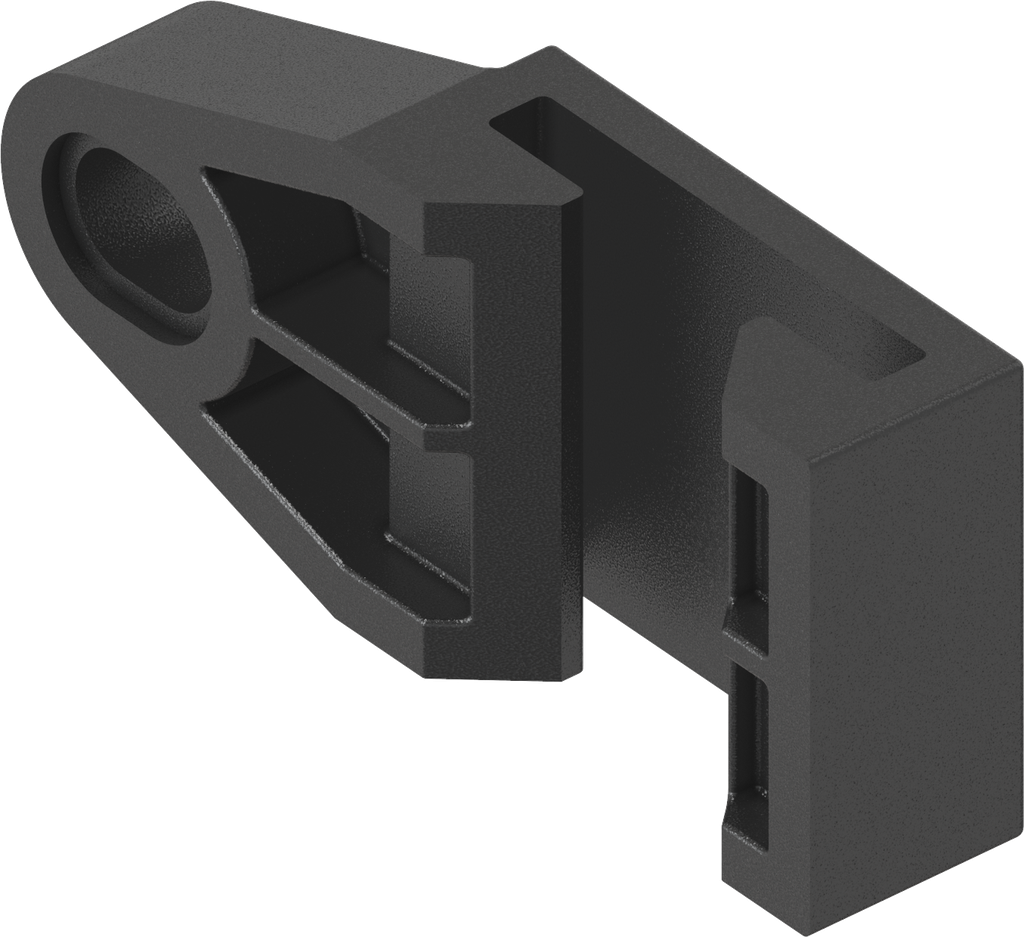

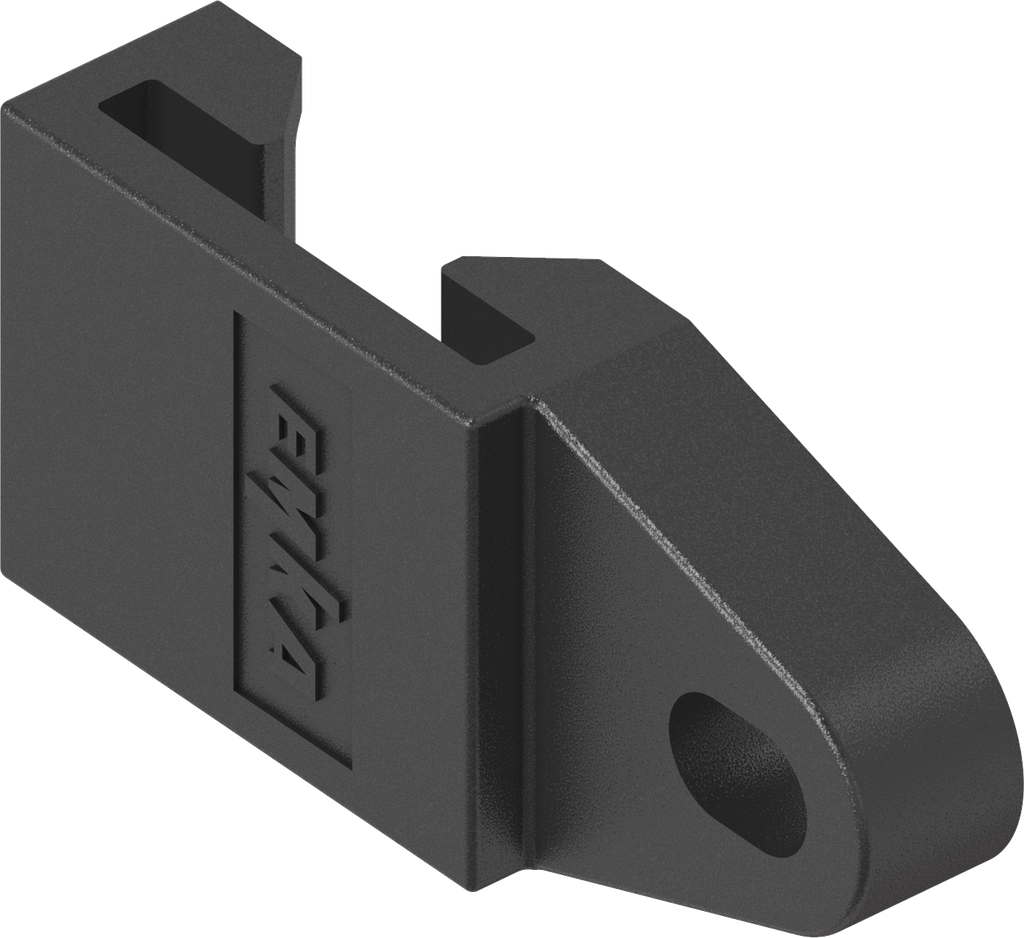

Rod guide, Polyamide GF black; 1121-169

https://www.emka.com/products/1121-169 https://www.emka.com/web/image/product.template/64411/image_1920?unique=da50b81

for horizontal flat rods

    This combination does not exist.

    Contact Us

    Product information:

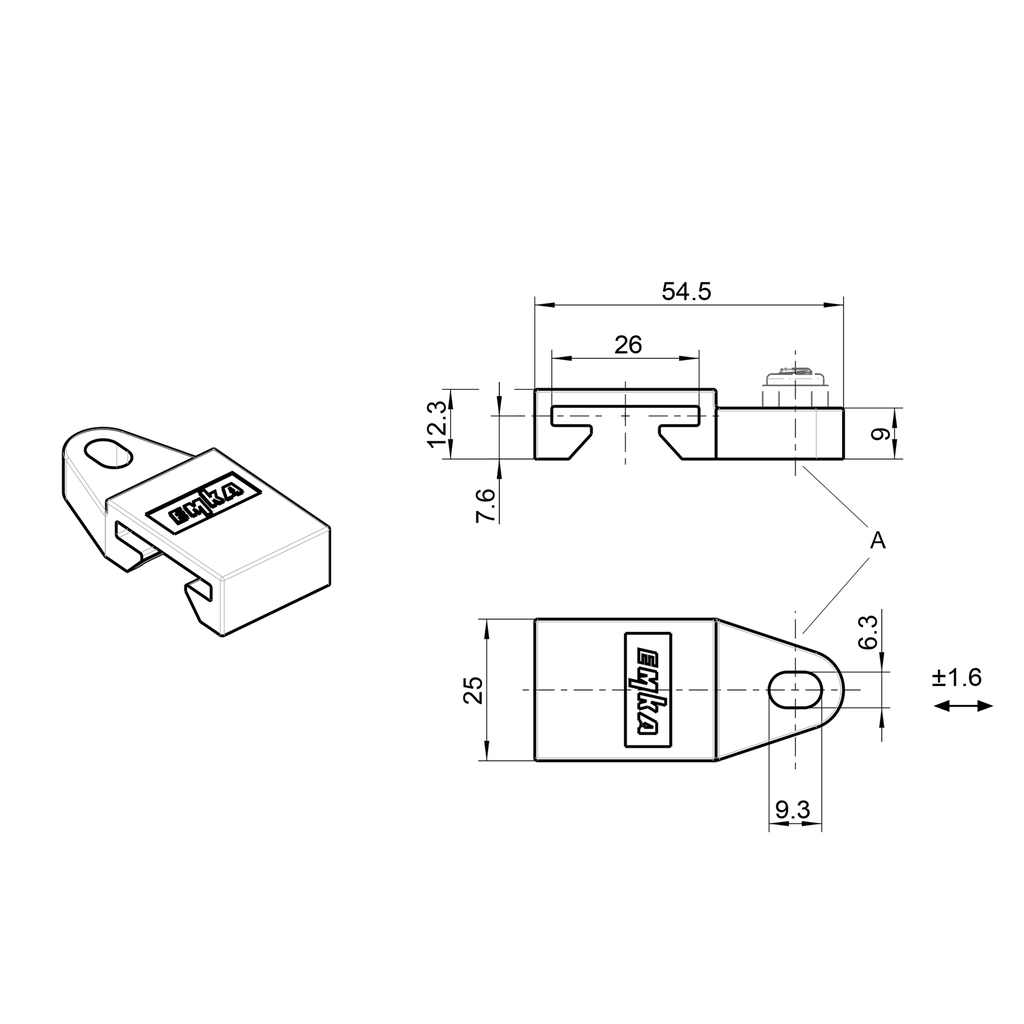

    Rod guide suitable for locking point with compression function for multiple interlocking A = Centre locking point
    Internal Reference: 1121-169
    Product Type: Rod guide
    Material: Polyamide GF
    Program: 1121
    Surface: black
    Catalog sheet: 3ZD-200
    Fixing of rod guide: Weld stud M6 x 16,Weld stud Ø 6 x 8-M4 (female thread),Blind rivet
    For Flat Bars: 14 x 3, horizontal

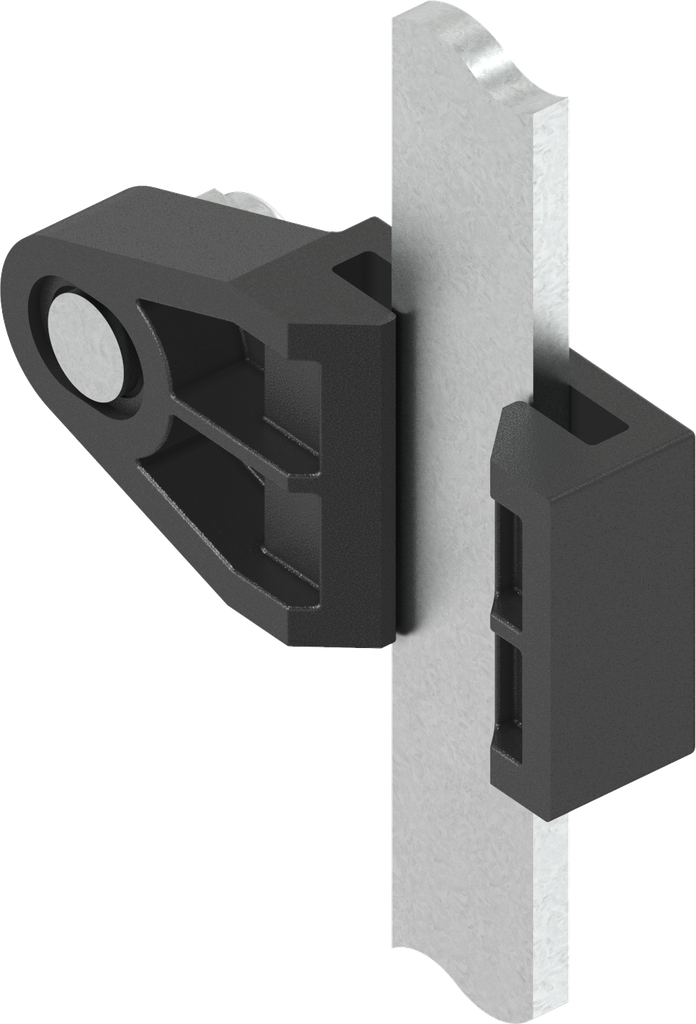

    Assembly: Pre-assembly on flat rod
    No Specifications
    View All Products
    Rod control
    Locking point
    Corner guide
    Here you can find the product data sheets and CAD files of this product
