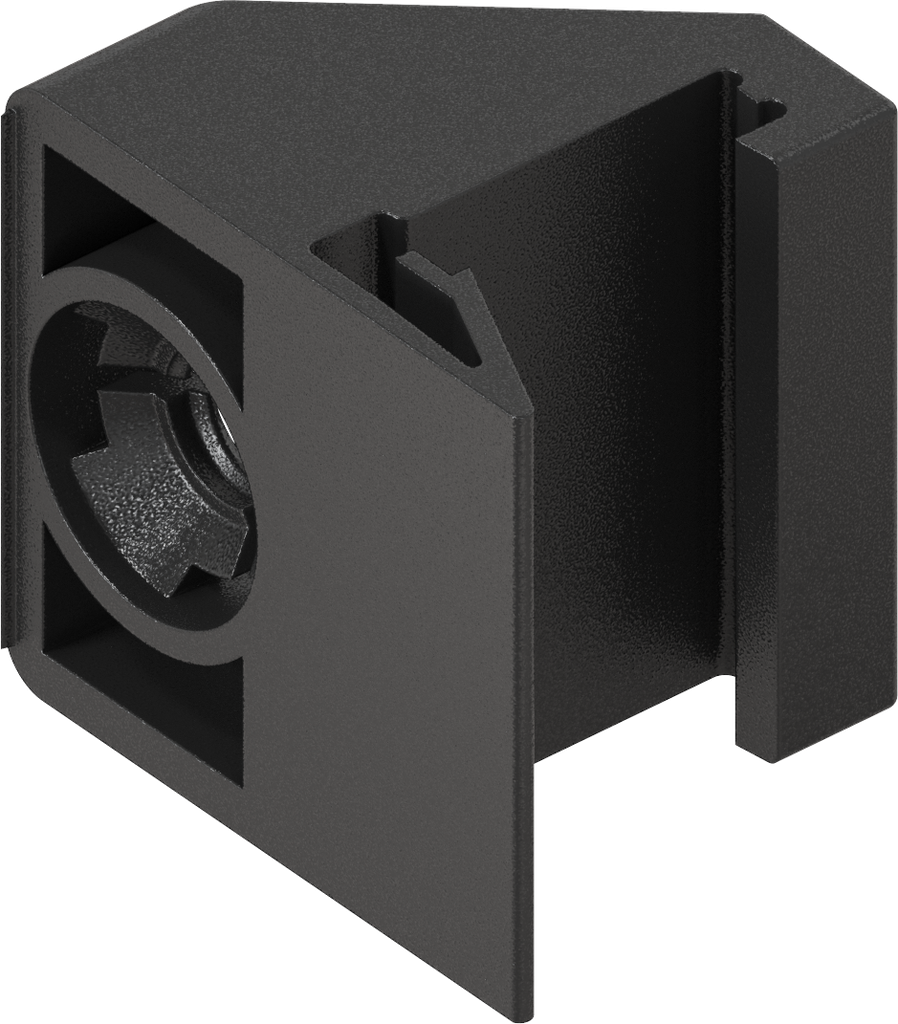

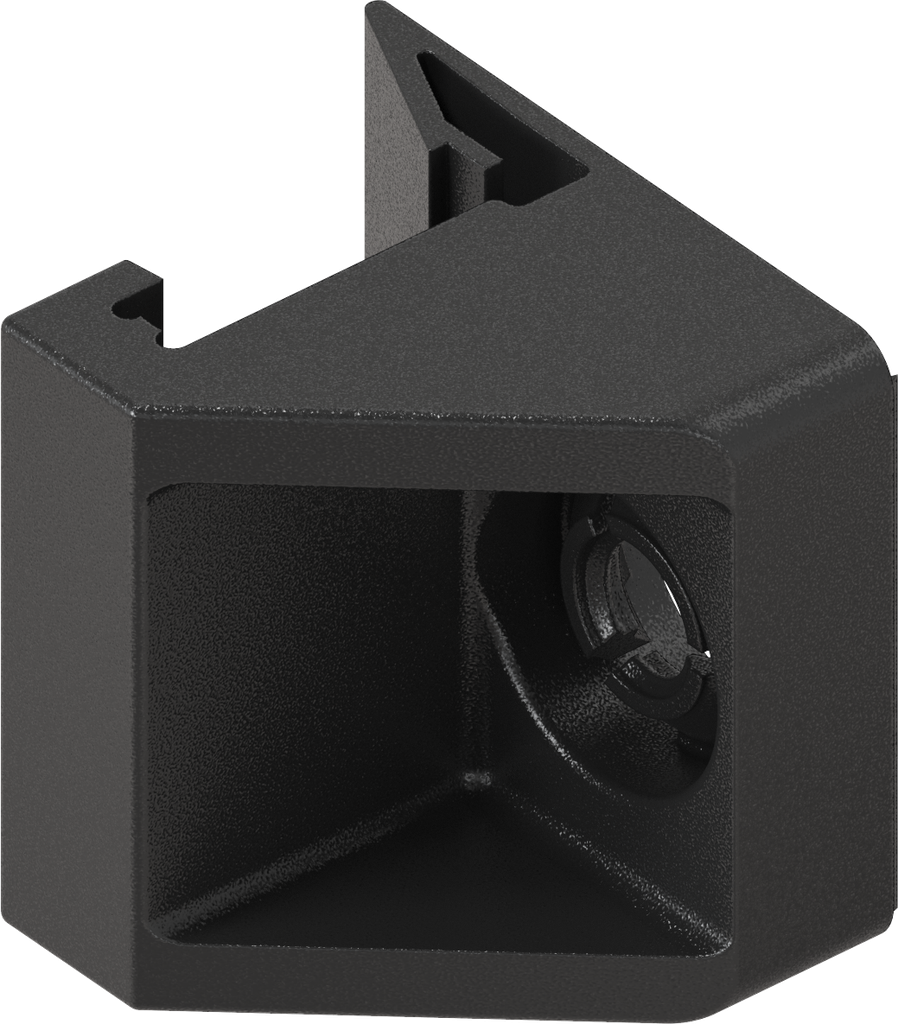

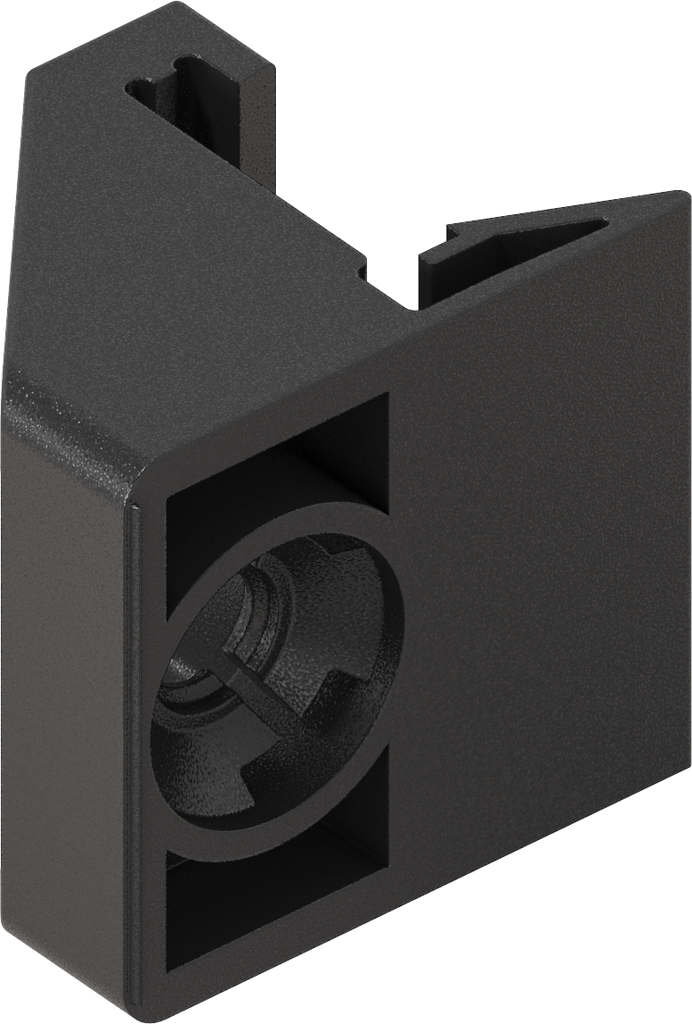

Rod guide clip in for flat rod 14 x 3, Plastic black; 1121-127

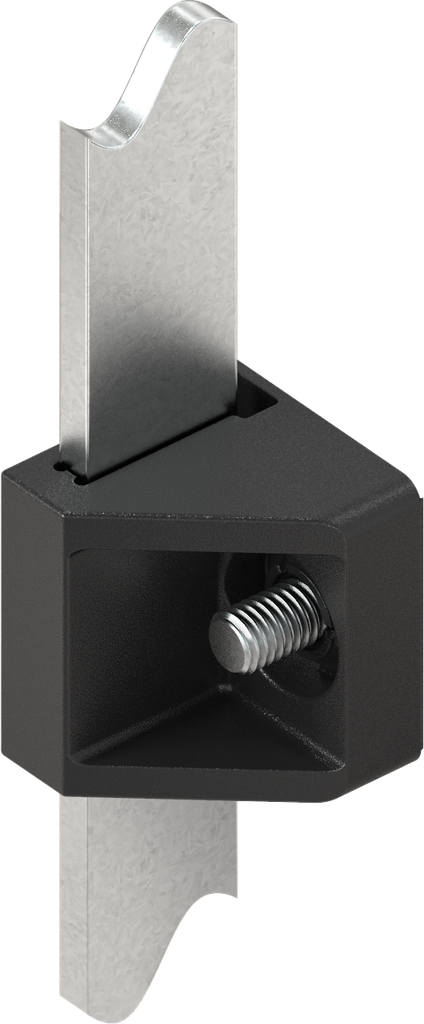

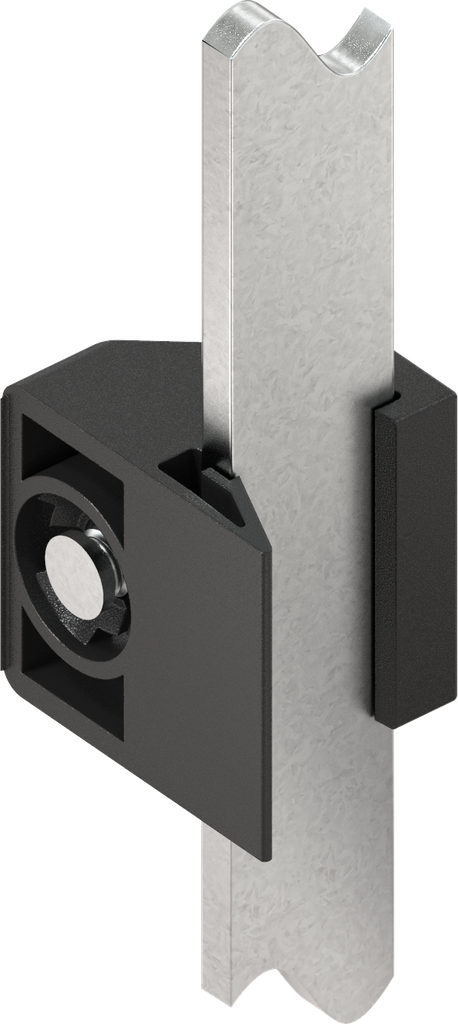

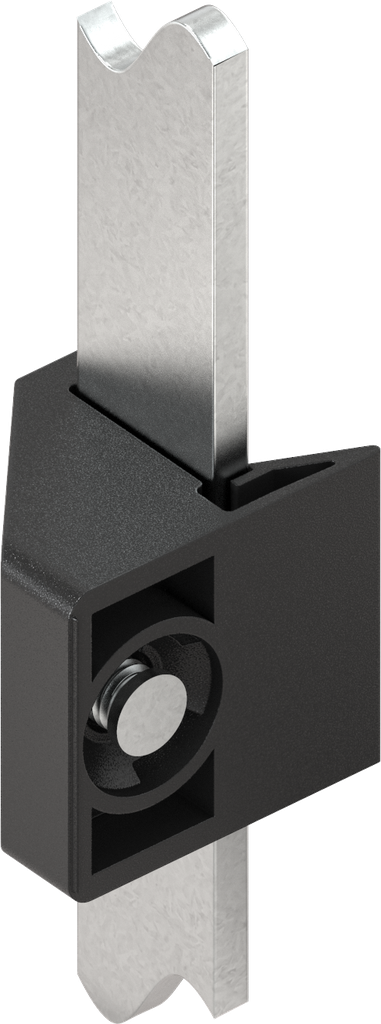

Rod guide is clipped onto the weld stud, flat rod is clipped in
Product information:

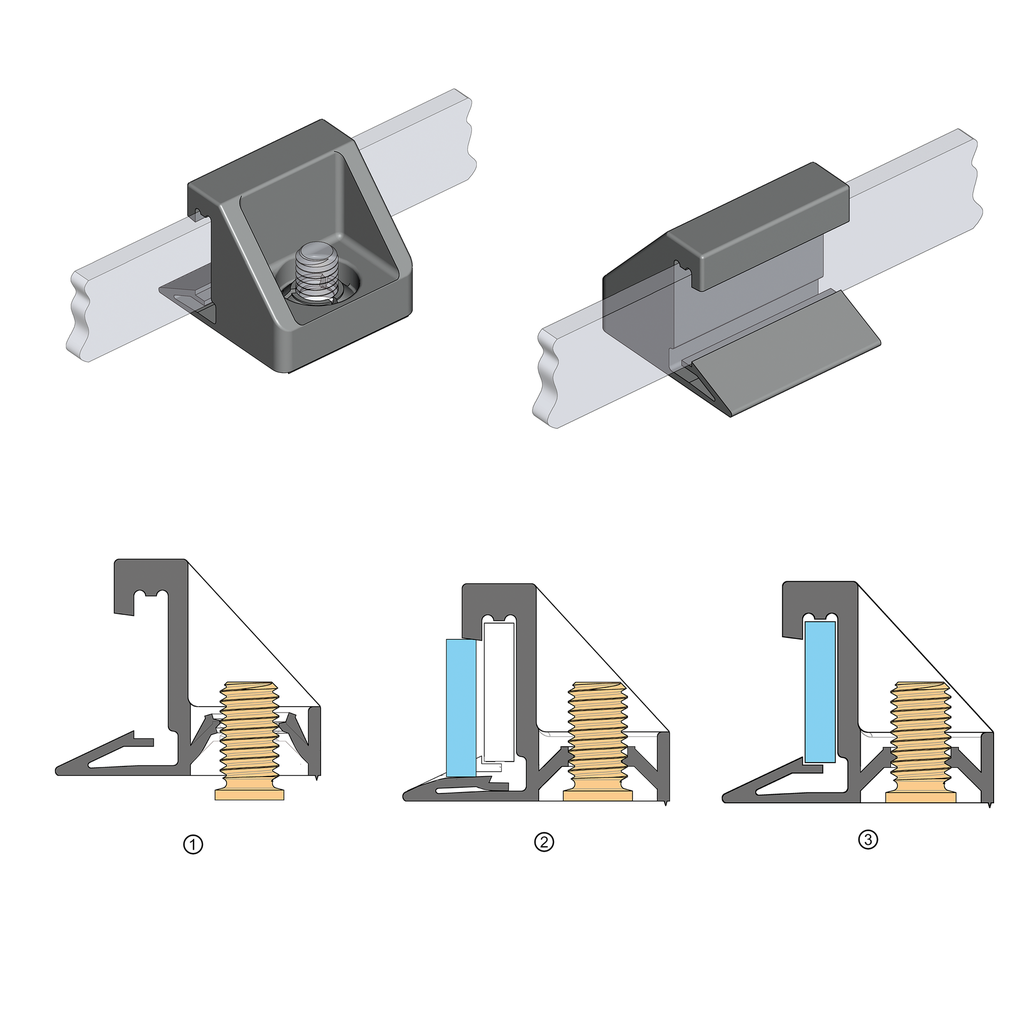

Pull-out force: Fmax. = 350 N Typical value F = 135 N These values refer to thread with surface raw or zinc-plated and free from grease ① = Assembly of the rod guide to the weld stud ② = Assembly of the flat rod into rod guide ③ = Rod guide completely assembled
① = Assembly of the rod guide to the weld stud
② = Assembly of the flat rod into rod guide
③ = Rod guide completely assembled
Internal Reference:
1121-127
Product Type:
Rod guide
Material:
Plastic
Program:
1121
Surface:
black
Catalog sheet:
3ZC-160
Article with property rights:
Yes
Fixing of rod guide:
Weld stud M6x10,Weld stud M6 x 12
For Flat Bars:
14 x 3
Assembly:
Pre-assembly of rod guide,Flat rod will clip-in,Rod guide clip-in, flat rod will clip-in
