Rod with locking slider, Polyamide GF black
Rod with locking slider, Polyamide GF black
Catch for rod with locking slider, Polyamide silver grey metallic
Catch for rod with locking slider, Polyamide silver grey metallic

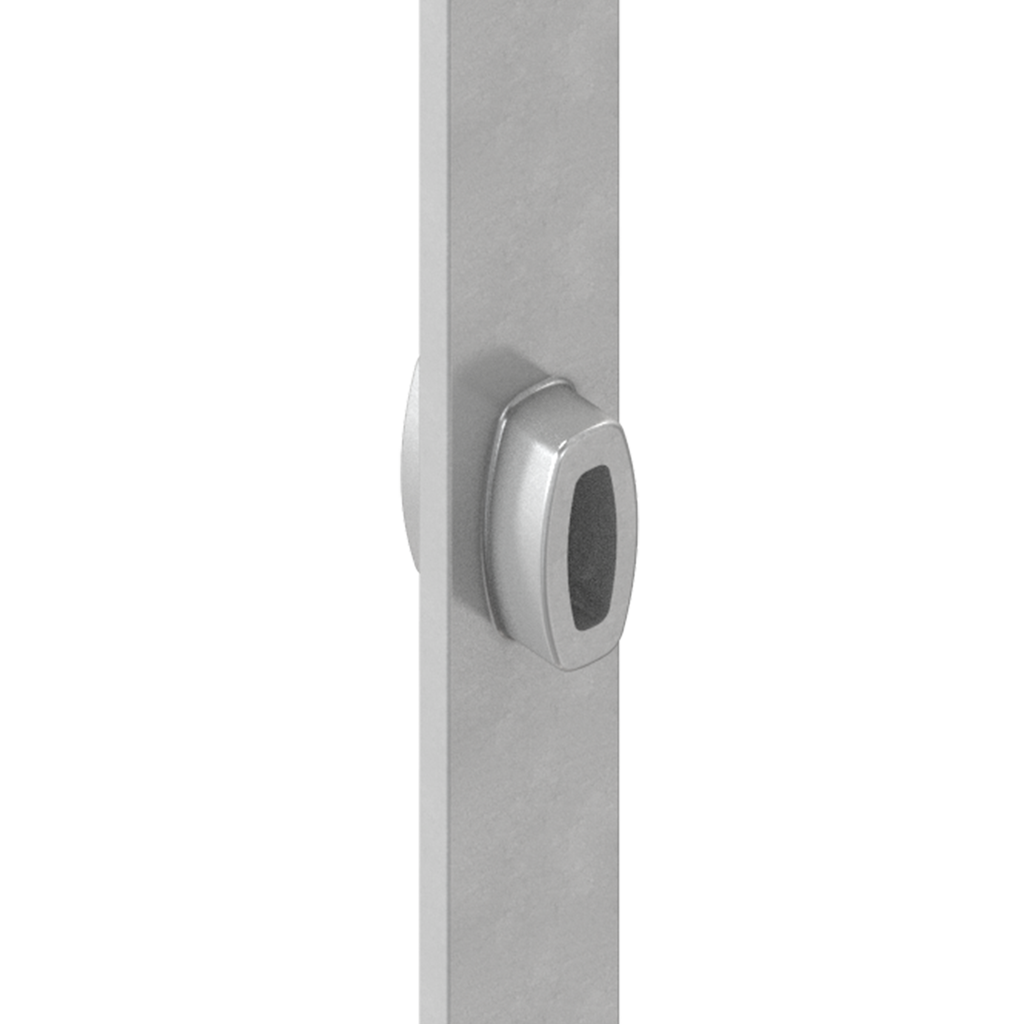

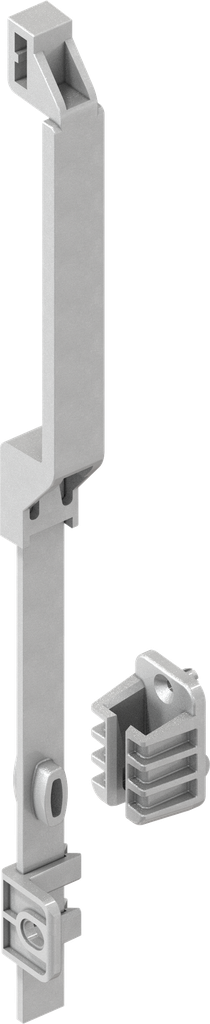

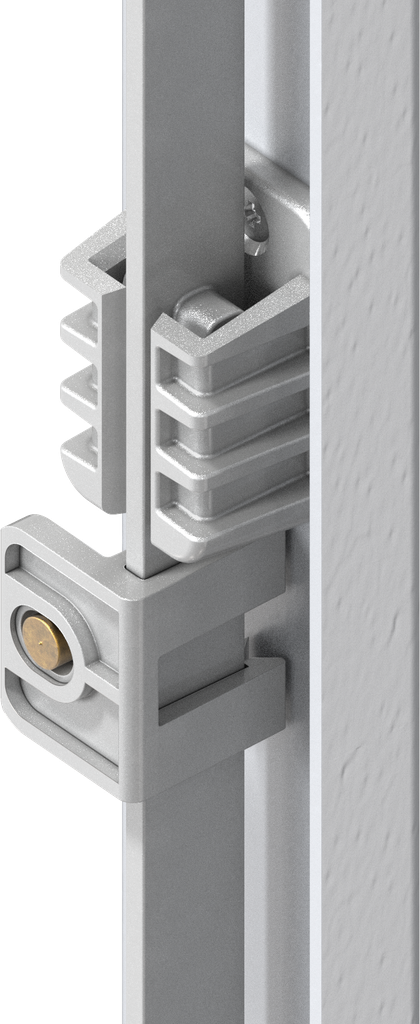

Rod with locking slider, Polyamide GF silver grey metallic; 1121-115-01CX

https://www.emka.com/products/1121-115-01cx https://www.emka.com/web/image/product.template/64382/image_1920?unique=f86255a

with 5 locking points

    This combination does not exist.

    Contact Us

    Assembly instruction:

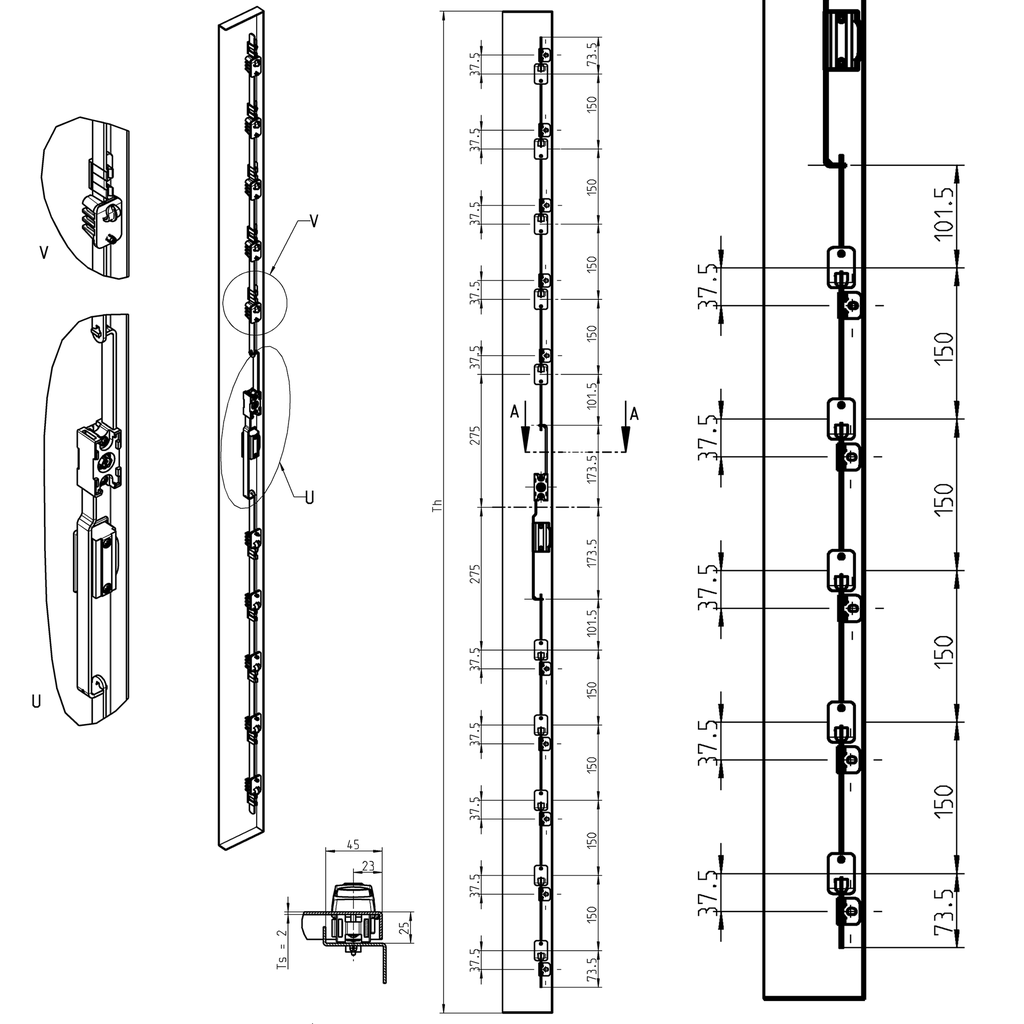

    Rod has to be shortened for door height 1600-1900 mm.

    Akeneo Note:

    For door height 1600 - 1900 with 4 to 5 locking points. For door height 1900 - 2200 with 5 locking points.
    Internal Reference: 1121-115-01CX
    Product Type: Rod
    Material: Polyamide GF
    Program: 1121
    Surface: silver grey metallic
    Catalog sheet: 3ZA-340
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 4 point, 5 point
    Article with property rights: Yes
    Flat Bar Outside: Flat rod with locking slider
    For Door Height: 1600-2200

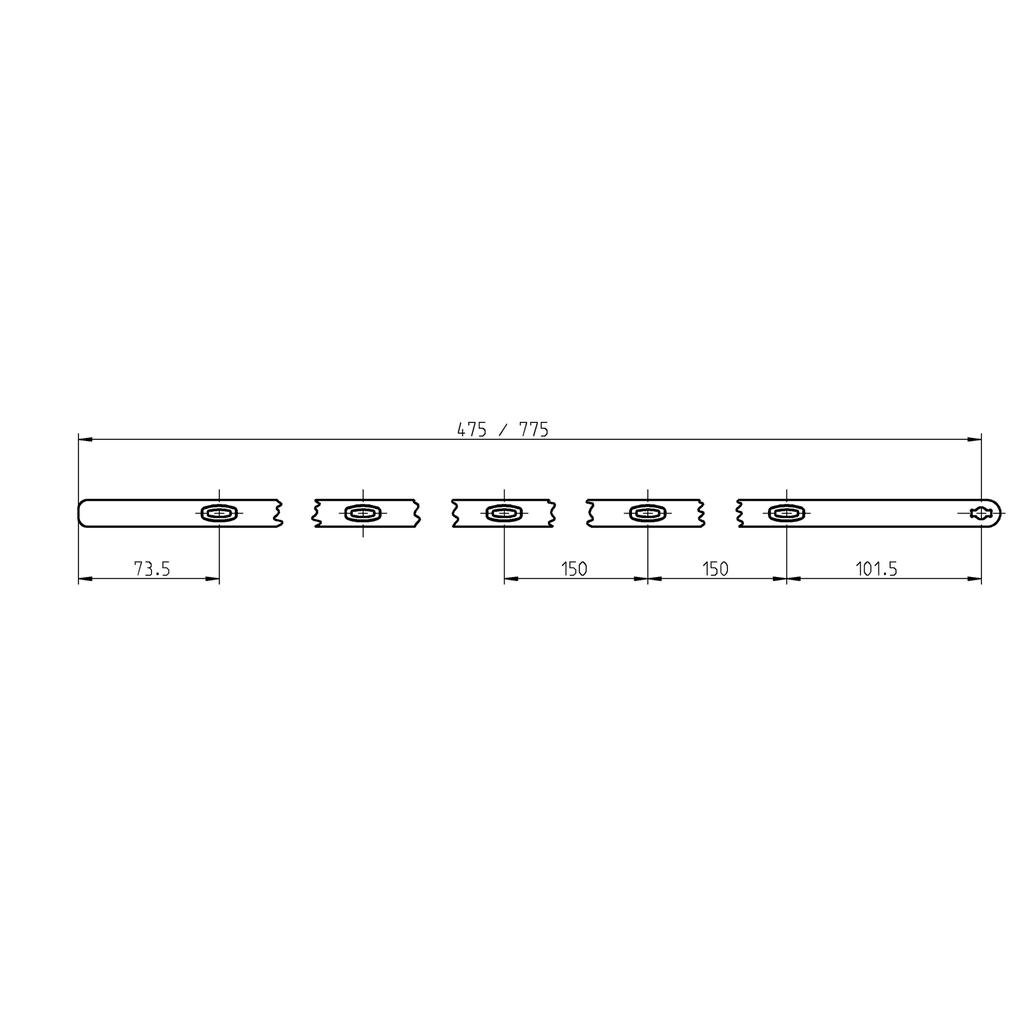

    Dimension L: 775 mm
    No Specifications
    View All Products
    Rod guide
    Catch
    Connector
    Rod control
    Here you can find the product data sheets and CAD files of this product
