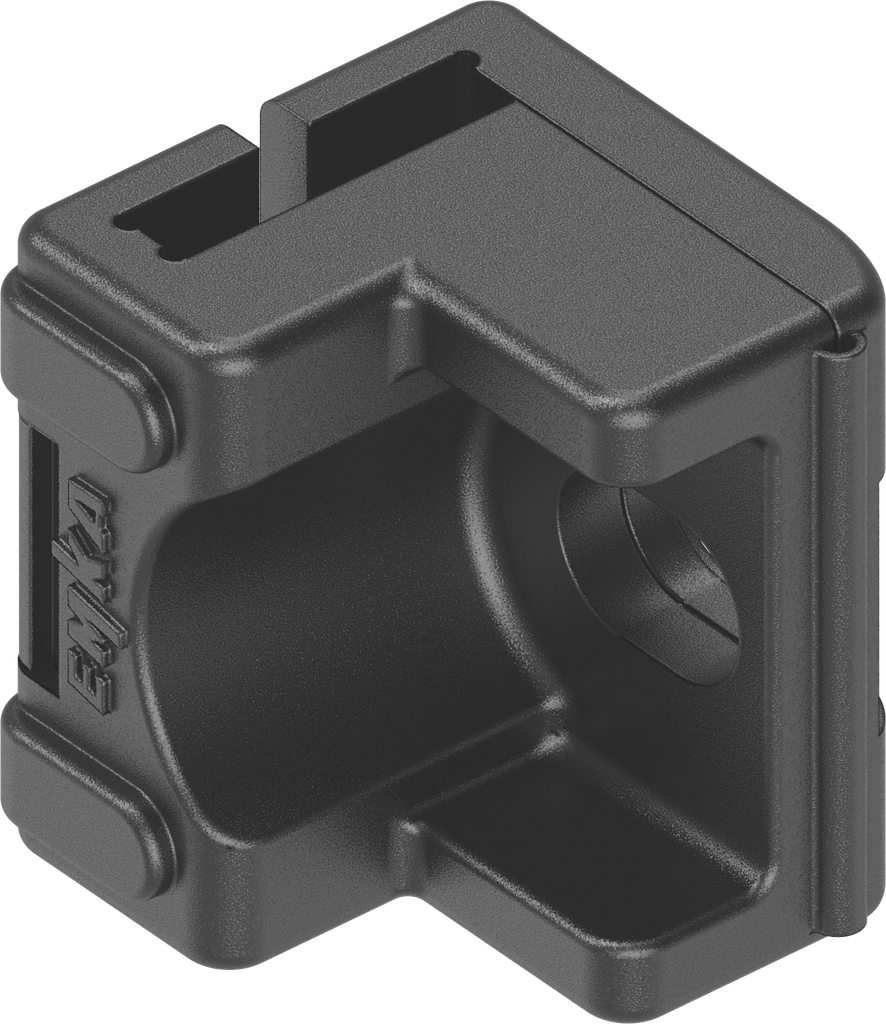

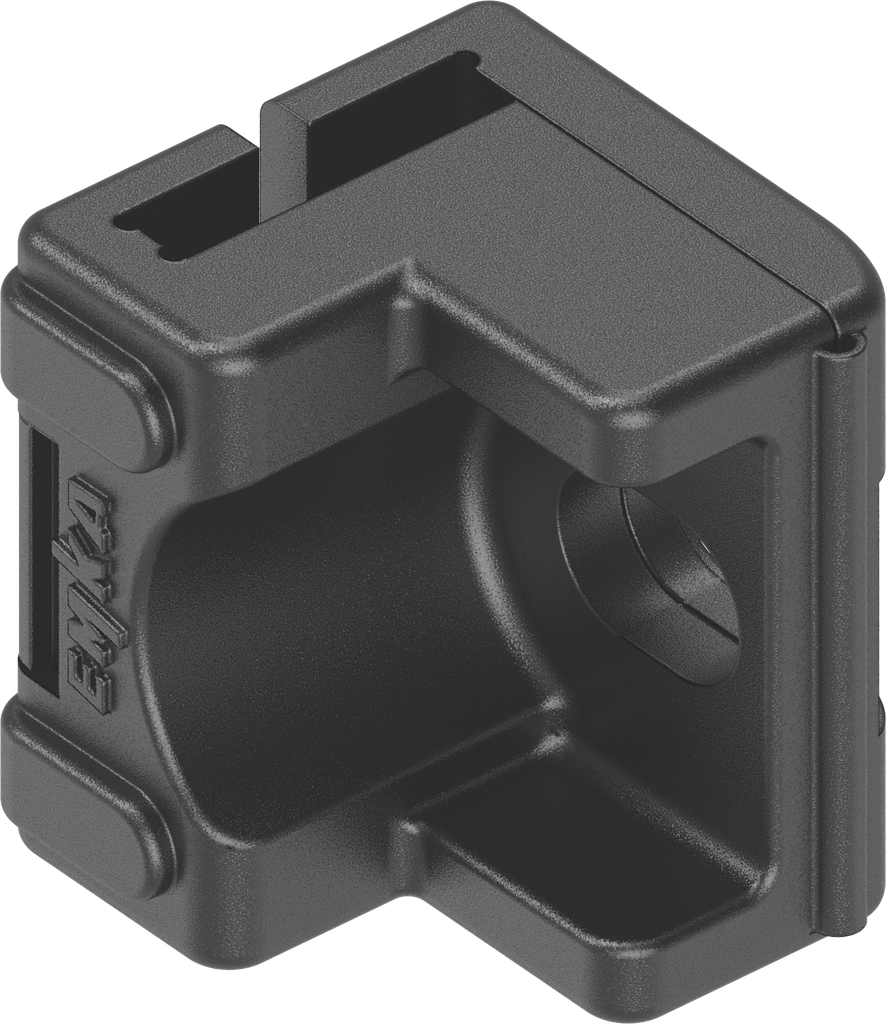

Rod guide for flat rod 14 x 3, Polyamide black
Rod guide for flat rod 14 x 3, Polyamide black
Shoe for flat rod, Polyamide GF black
Shoe for flat rod, Polyamide GF black

Rod guide for flat rod 14 x 3, Polyamide black; 1121-109

https://www.emka.com/products/1121-109 https://www.emka.com/web/image/product.template/64378/image_1920?unique=cdcef30

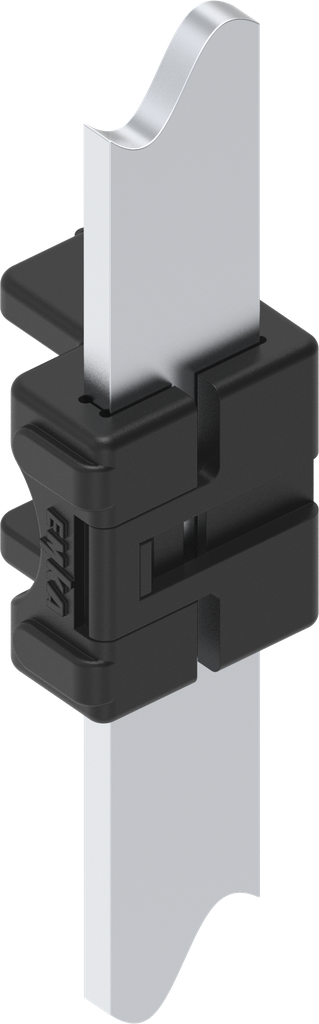

Rod guide can be pre-assembled on flat rod

    This combination does not exist.

    Contact Us

    Assembly instruction:

    Rod guide can be pre-assembled on flat rod!
    Internal Reference: 1121-109
    Product Type: Rod guide
    Material: Polyamide
    Program: 1121
    Surface: black
    Catalog sheet: 3ZC-140
    Fixing of rod guide: Weld stud M6 x 12
    For Flat Bars: 14 x 3
    Assembly: Pre-assembly on flat rod
    No Specifications
    View All Products

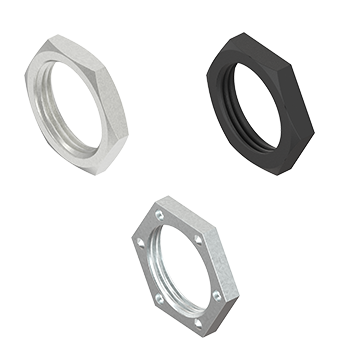

    Nut
    Rod
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZC-140
    Product data sheet
    CAD file | 1121-109_igs
    CAD file | 1121-109_stp
