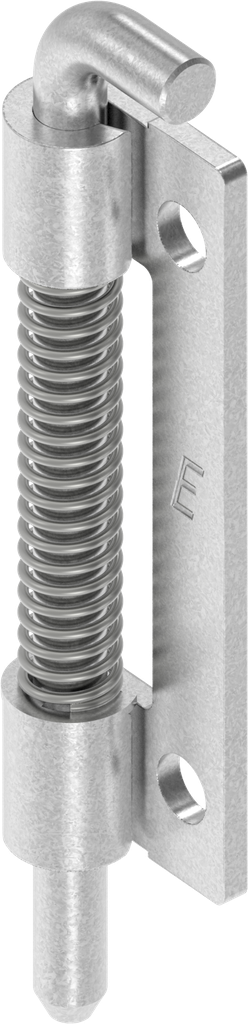

Pin hinge, left version, Steel zinc-plated
Pin hinge, Stainless steel AISI 304
Internal Reference:
1117-U4
Product Type:
Hinge
Program:
1117
Catalog sheet:
4C-120
Material of the module :
Steel
Surface of the module:
zinc-plated
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Cabinet type :
Single cabinets,In-line cabinets with single door
pin hinge:
Yes
Door position:
concealed,prominent
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
