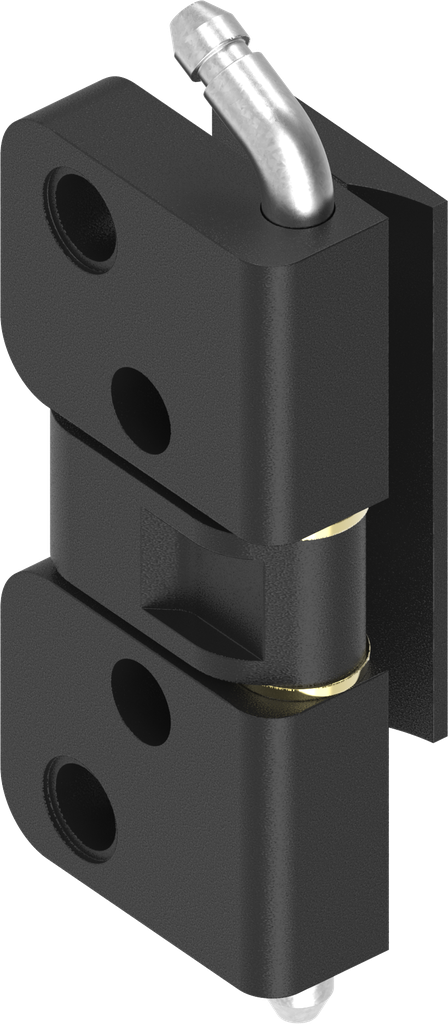

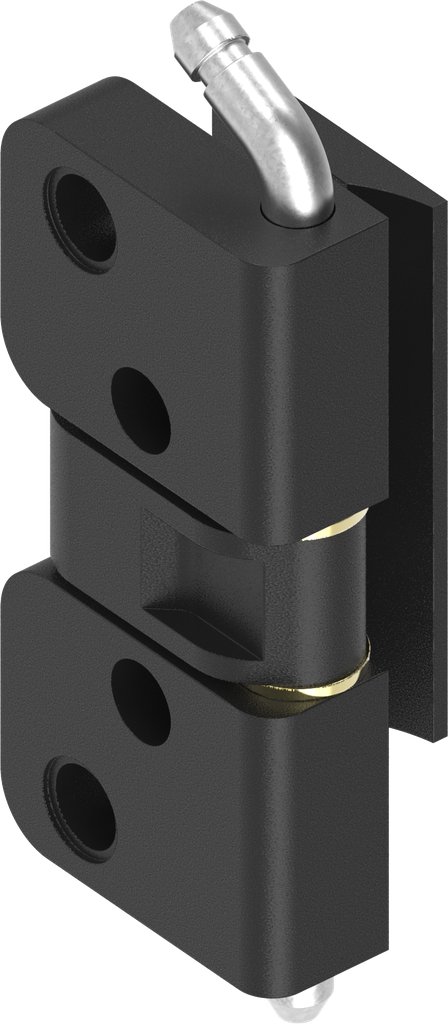

120° Hinge, Zinc die black powder-coated; 1110-U86

https://www.emka.com/products/1110-u86 https://www.emka.com/web/image/product.template/64220/image_1920?unique=c67a140

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us
    Internal Reference: 1110-U86
    Product Type: Hinge
    Program: 1110

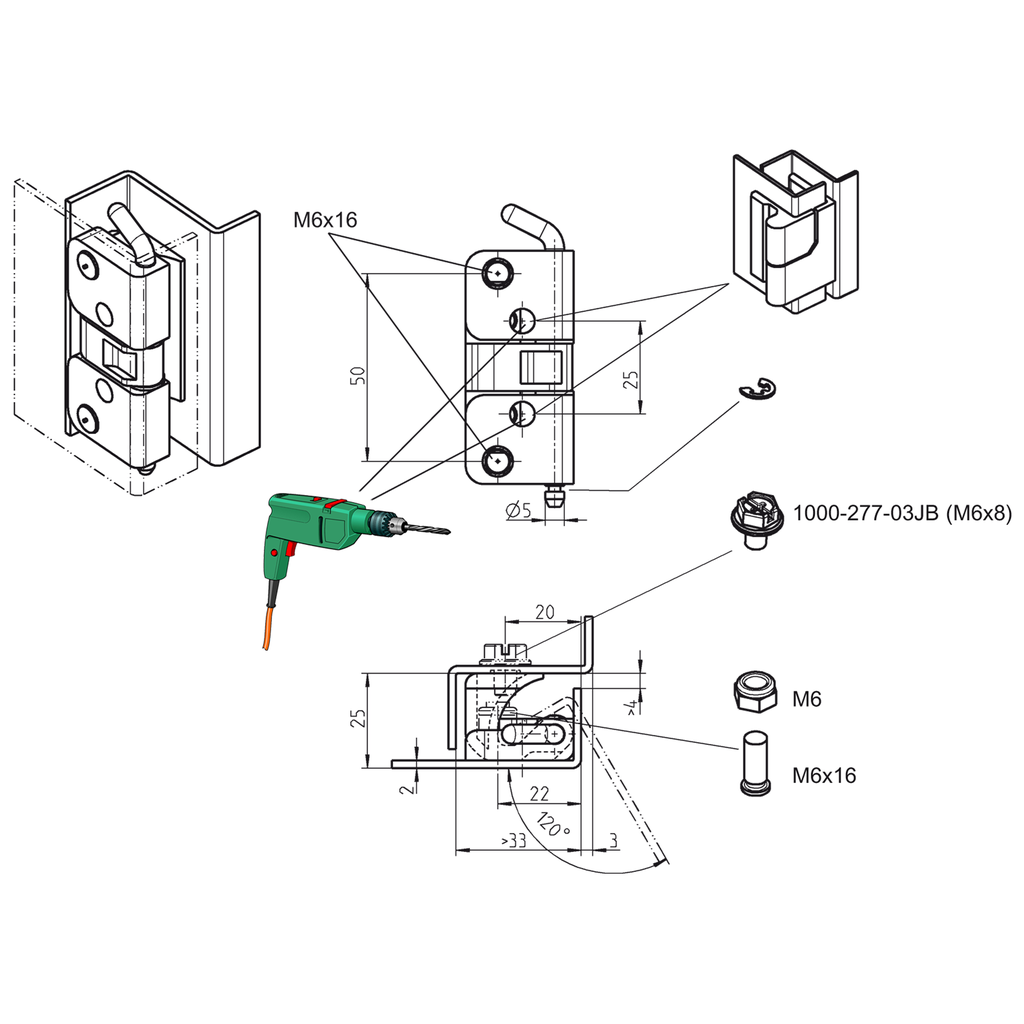

    Catalog sheet: 4A-190
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Detachable: with tools
    Type of attachment to the frame: screw-on, with weld stud M6 x 16
    Type of fastening on the door: screw-on from inside, with female thread M6
    Max Opening Angle: 120°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
