180° Hinge, right version, Zinc die black powder-coated

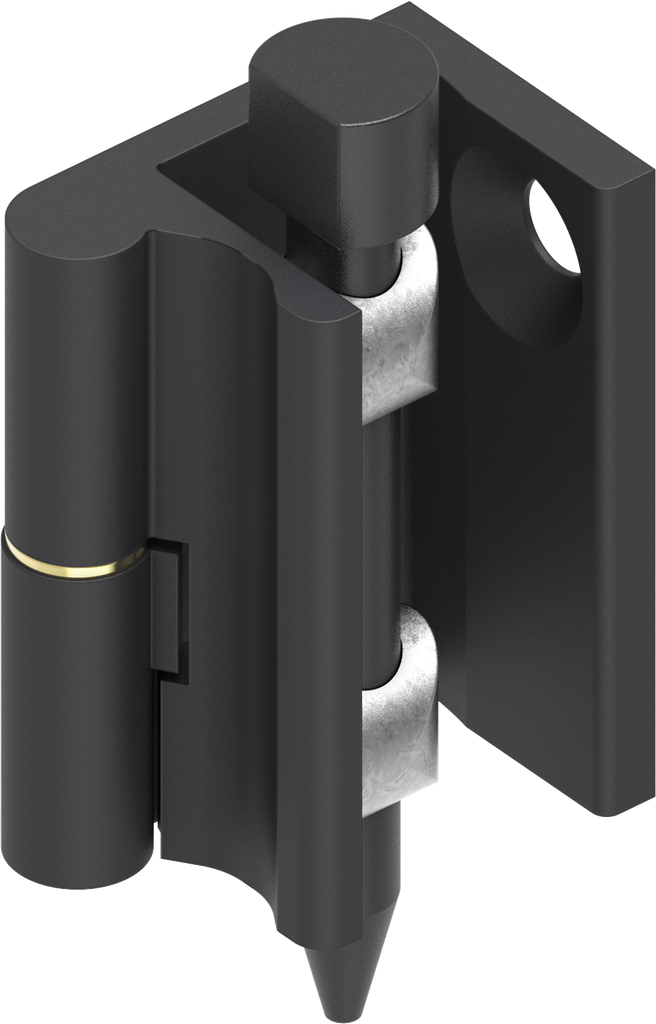

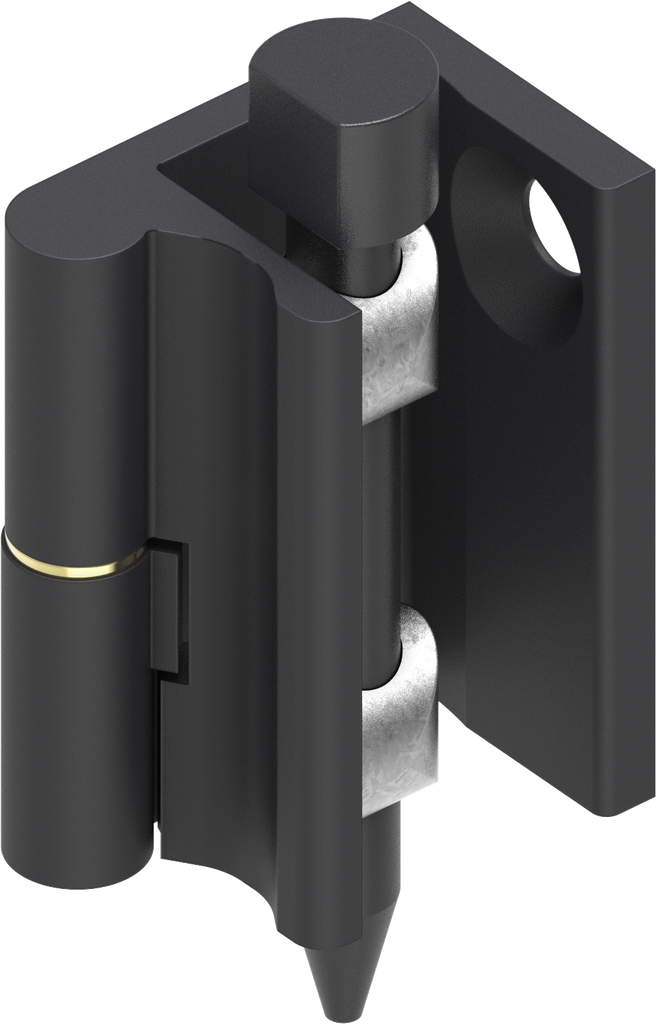

180° Hinge, left version, Zinc die black powder-coated
Product information:
Lift-off version for opening angles wider than 70°
Internal Reference:
1110-U81
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated

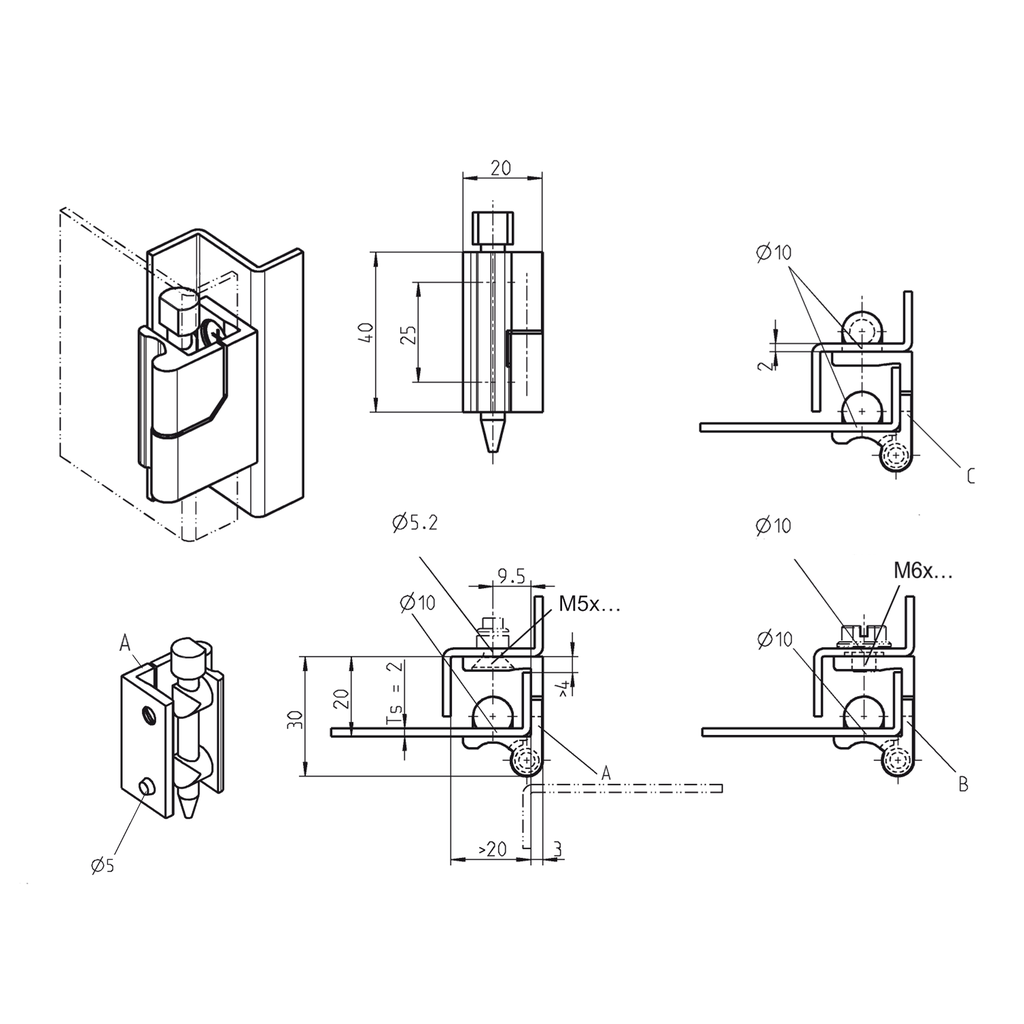

Dimension A, Variable:
20 mm
Execution:
A
Detachable:
without tools, from 70° opening angle
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M5
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left
Door thickness:
2 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
