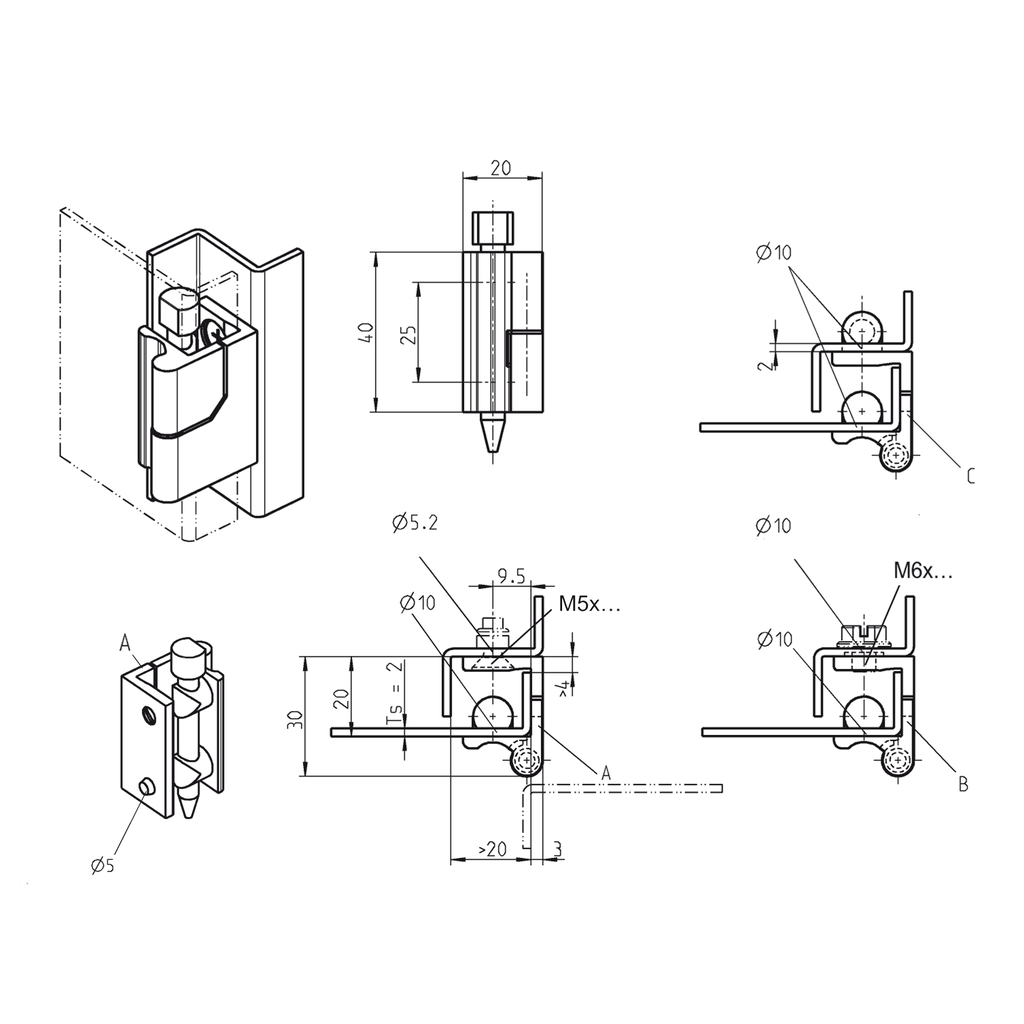

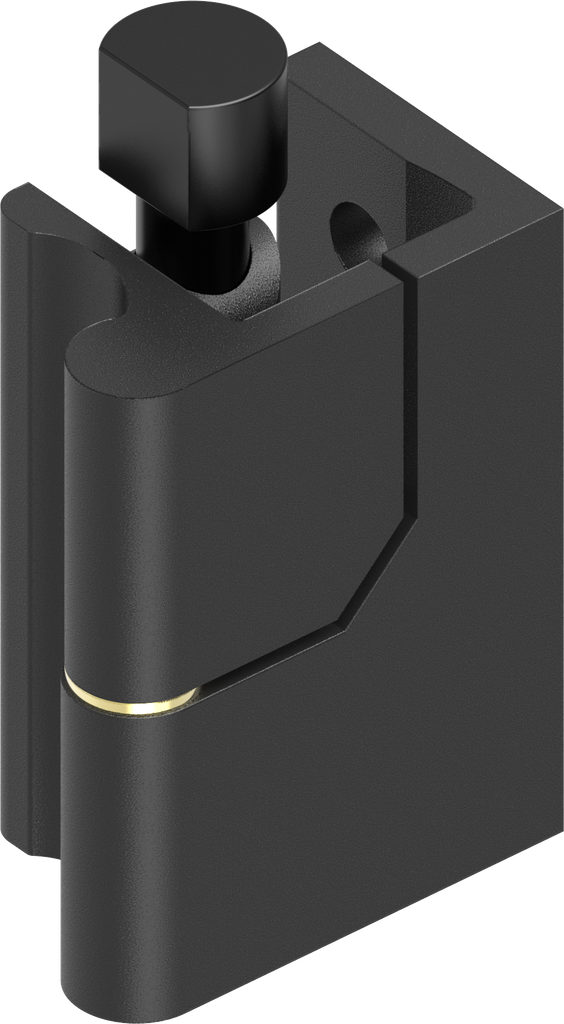

180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated

180° Hinge, right version, Zinc die black powder-coated; 1110-U79

https://www.emka.com/products/1110-u79 https://www.emka.com/web/image/product.template/64216/image_1920?unique=f86255a

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Right
    Contact Us

    Product information:

    Lift-off version for opening angles wider than 70°
    Internal Reference: 1110-U79
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-220
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 20 mm
    Execution: B
    Detachable: without tools, from 70° opening angle
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Right
    Door thickness: 2 mm
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products

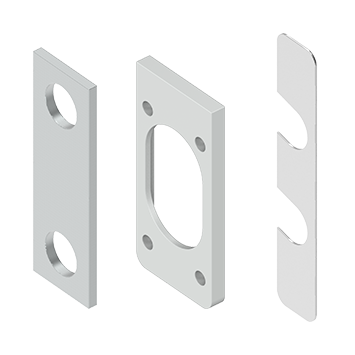

    Shim
