180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated

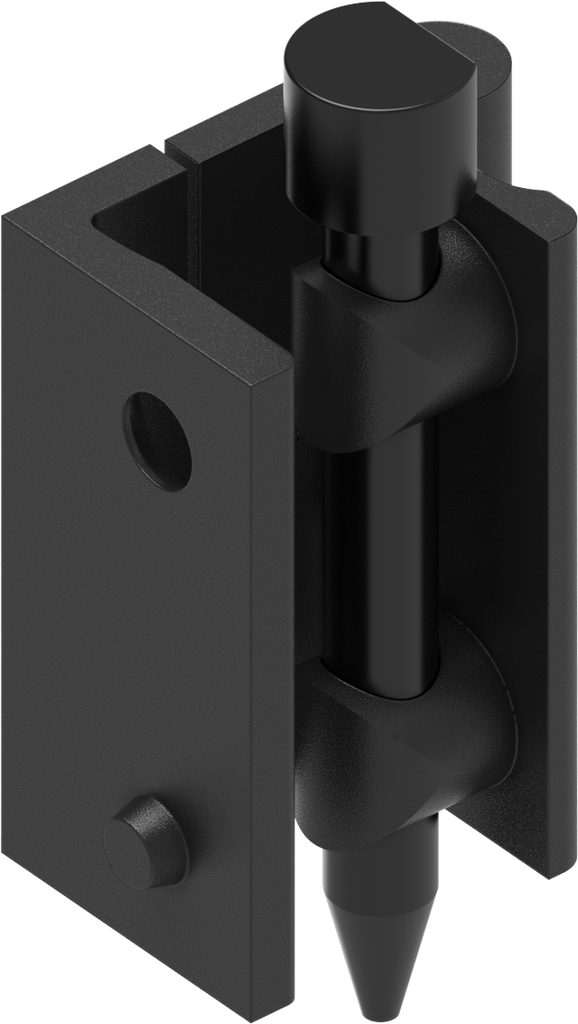

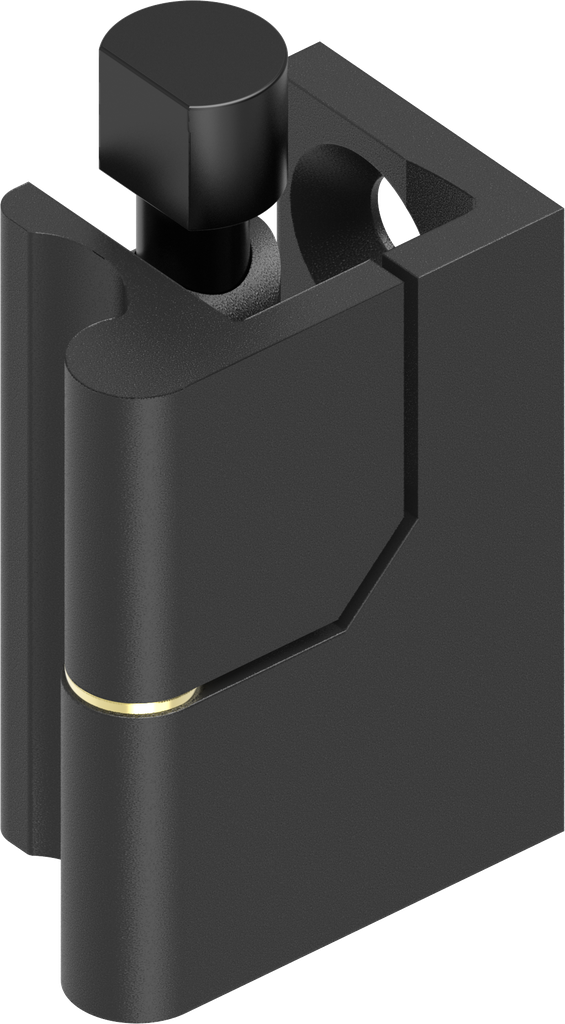

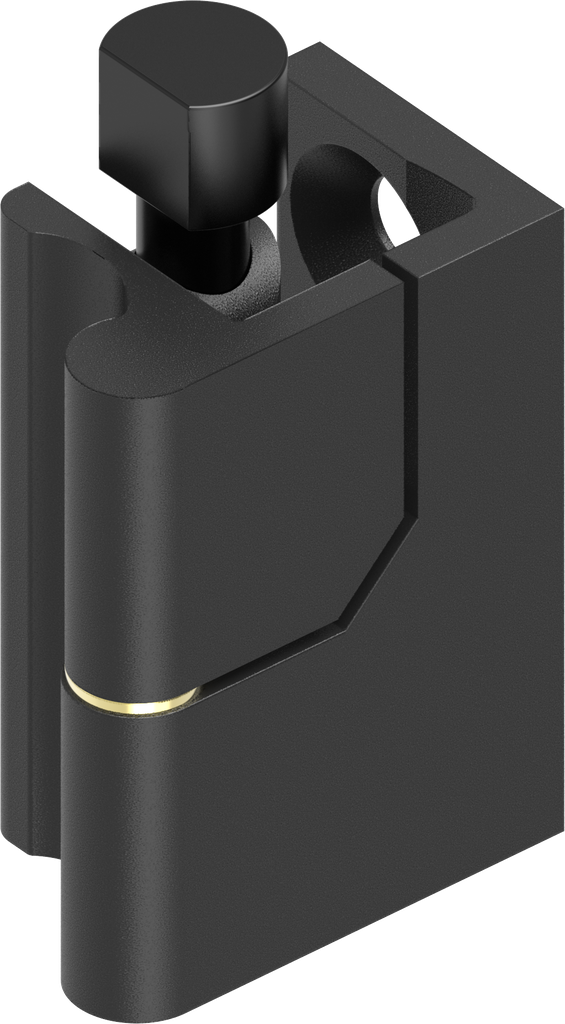

180° Hinge, right version, Zinc die black powder-coated; 1110-U78

https://www.emka.com/products/1110-u78 https://www.emka.com/web/image/product.template/64215/image_1920?unique=a8f6cf5

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Right
    Contact Us

    Product information:

    Note:
    Lift-off version for opening angles wider than 70°
    Internal Reference: 1110-U78
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-220
    Material of the module : Zinc die
    Surface of the module: black powder-coated

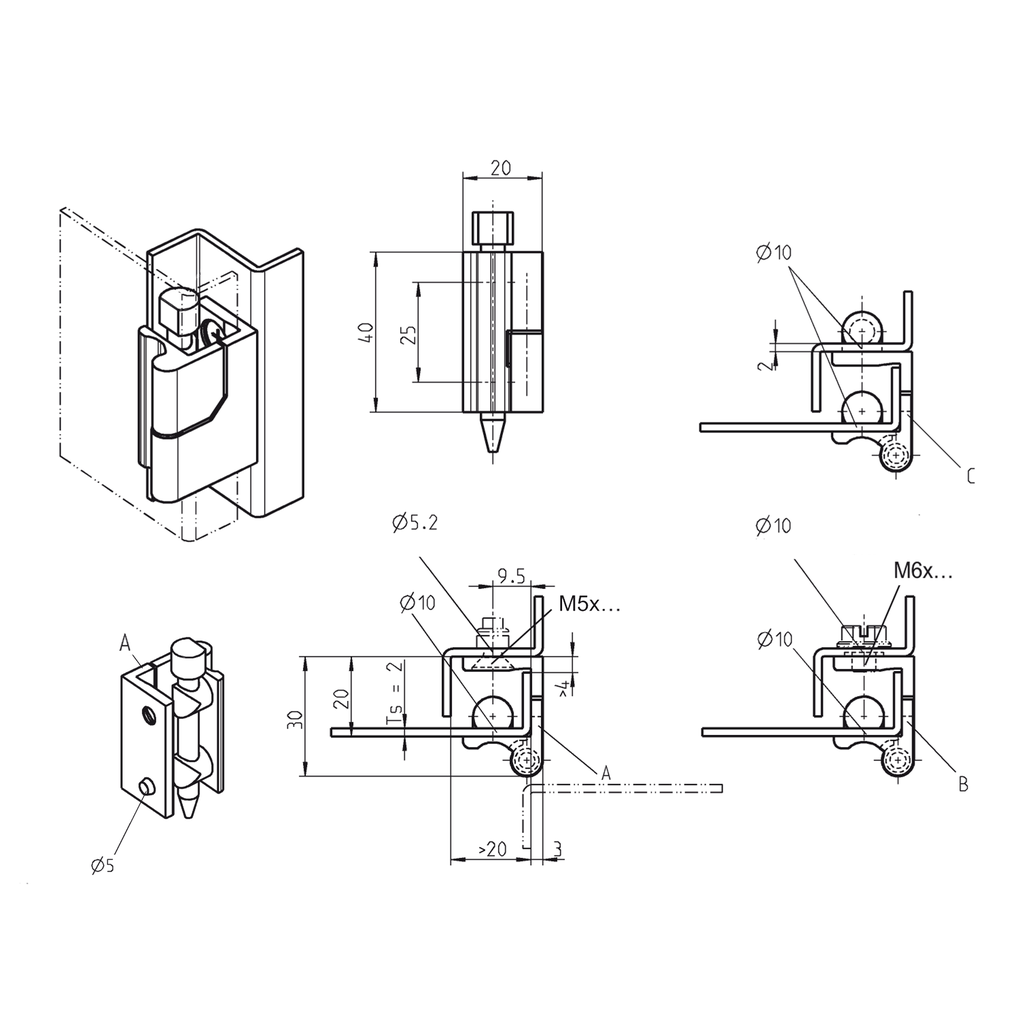

    Dimension A, Variable: 20 mm
    Execution: A
    Detachable: without tools, from 70° opening angle
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Shim
    Here you can find the product data sheets and CAD files of this product
