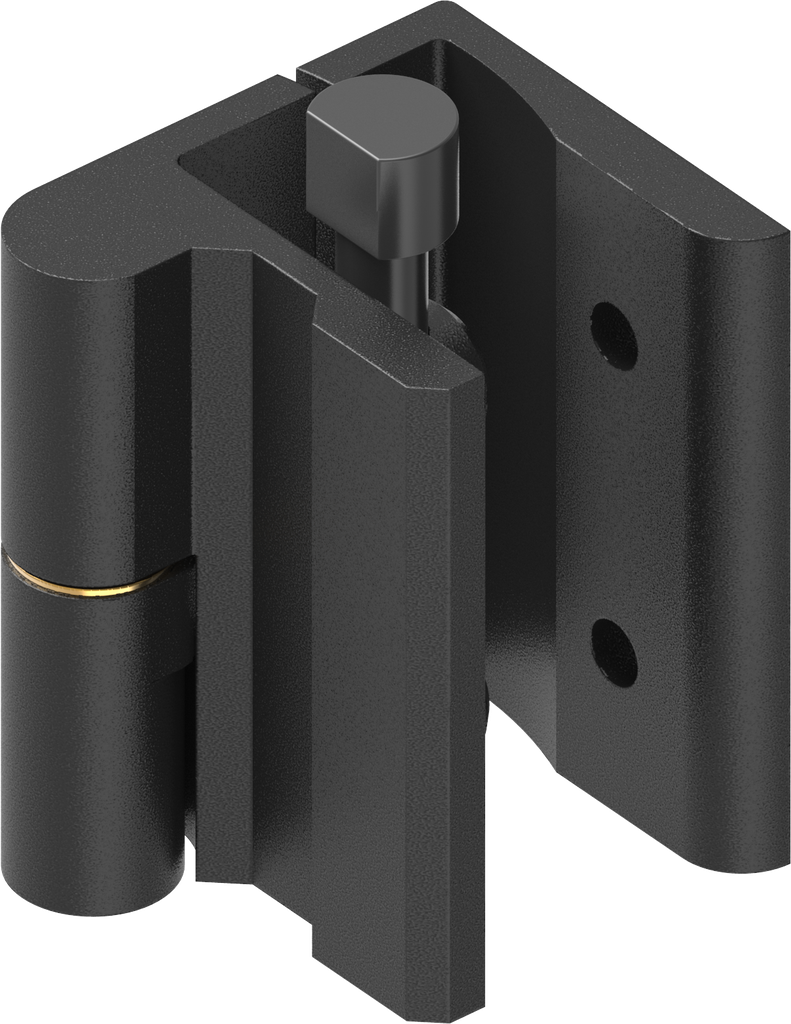

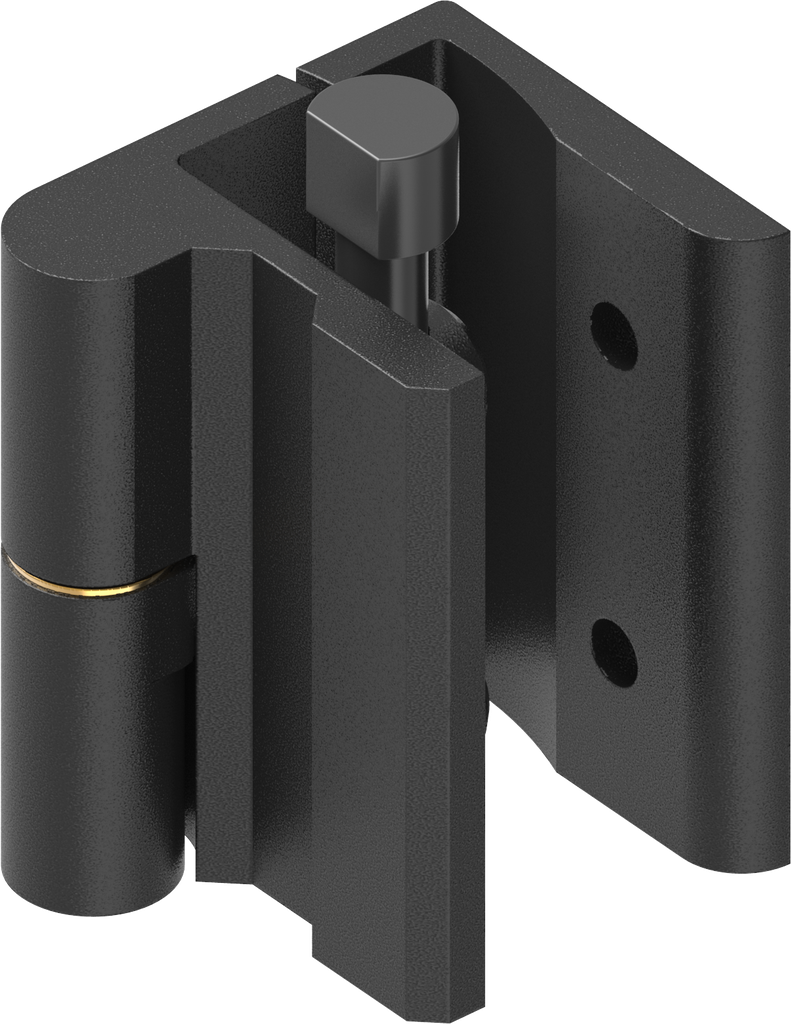

180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated

180° Hinge, left version, Zinc die black powder-coated; 1110-U70

https://www.emka.com/products/1110-u70 https://www.emka.com/web/image/product.template/64213/image_1920?unique=ffcdb4b

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us
    Internal Reference: 1110-U70
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-210
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 26 mm
    Execution: D+E
    Detachable: without tools, from 70° opening angle
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Left
    Door thickness: 2 mm
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products
    Shim

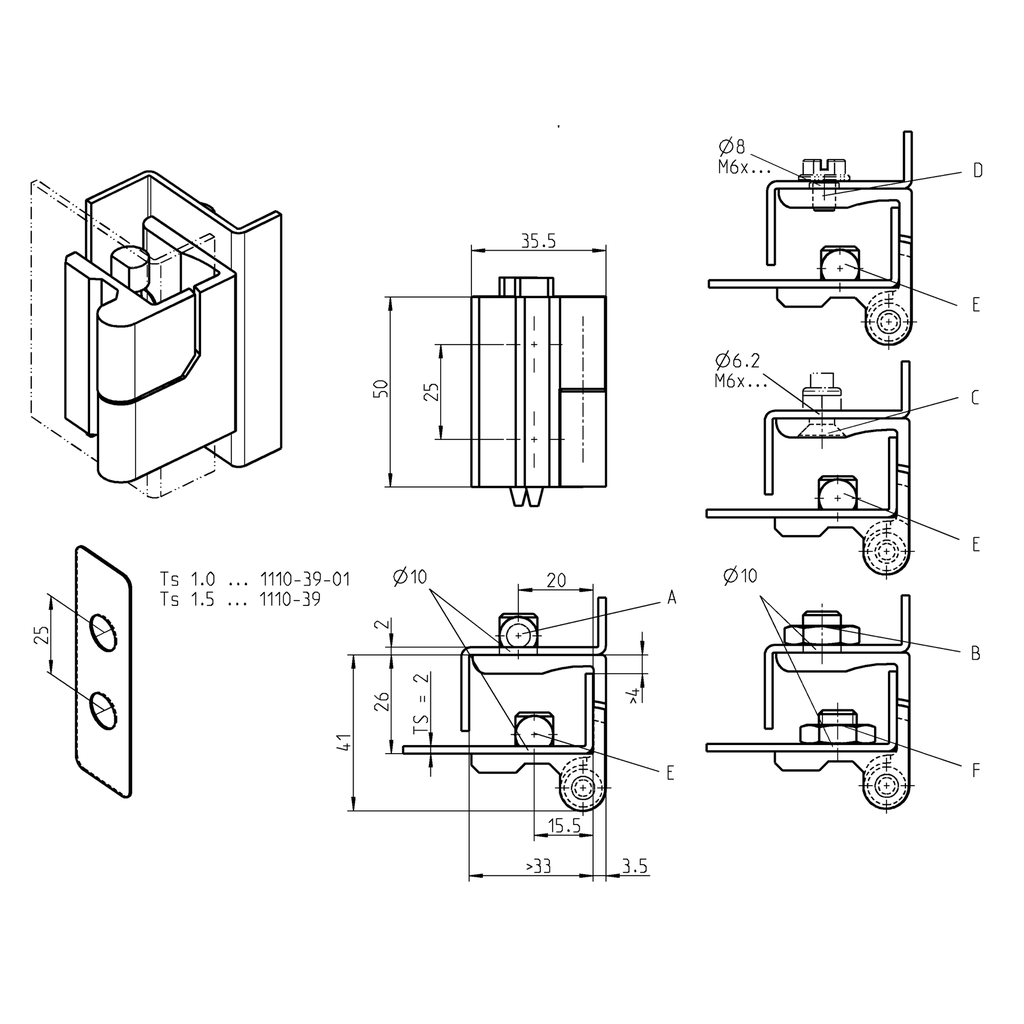

    Here you can find the product data sheets and CAD files of this product
