Akeneo Note:
180° for in-line cabinets with single door
135° for in-line cabinets with double door
Internal Reference:
1110-U52

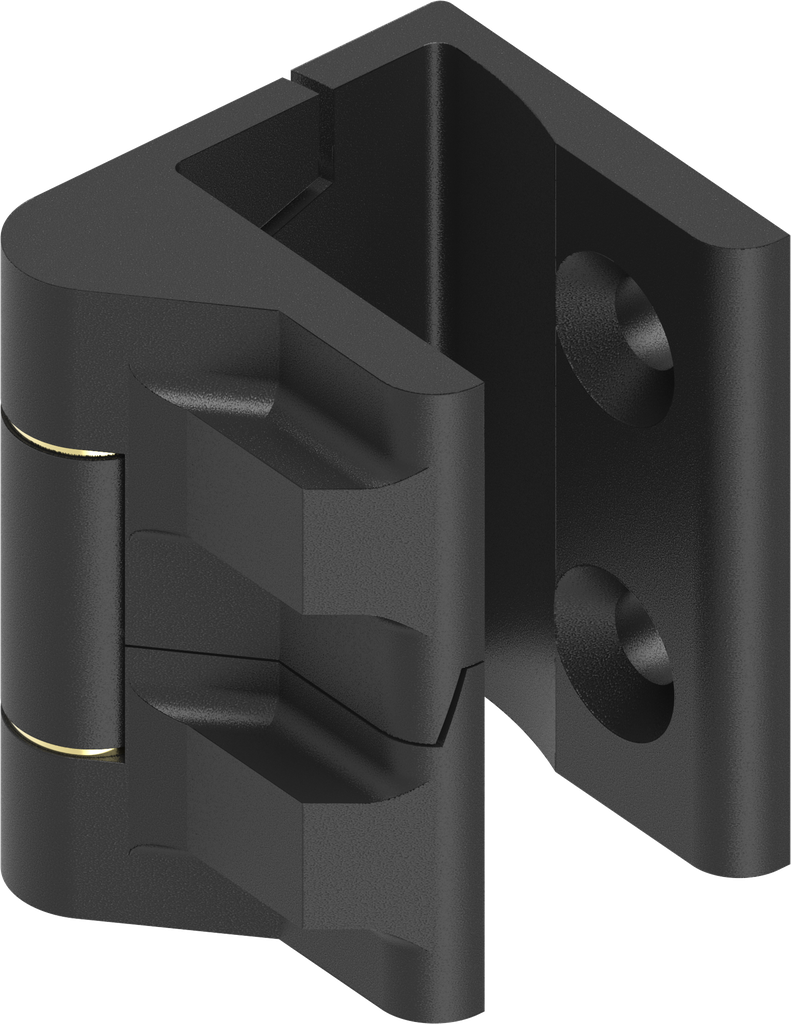

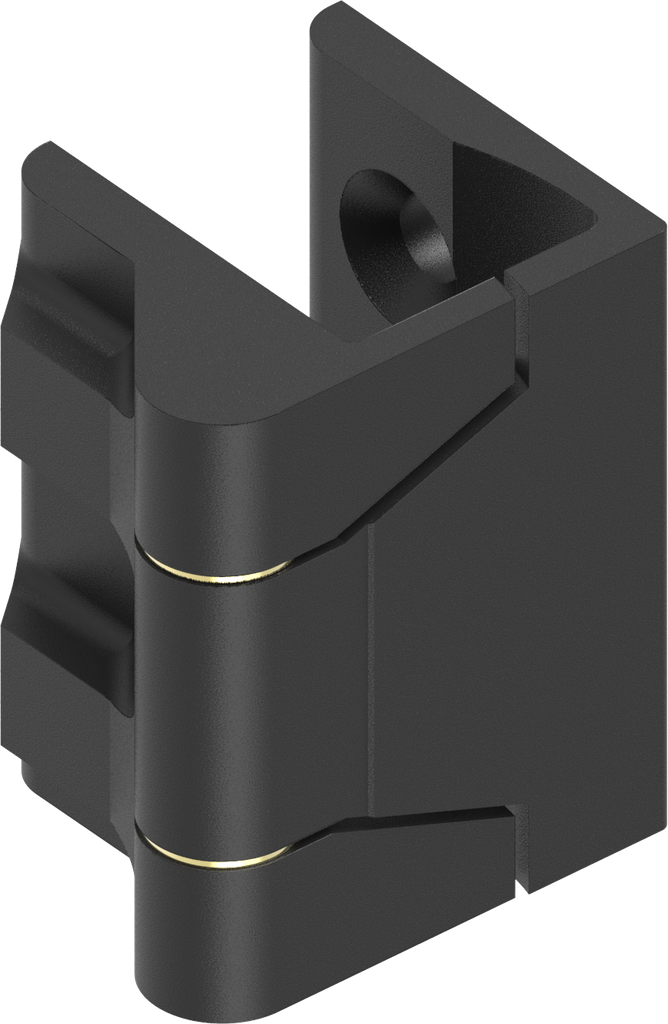

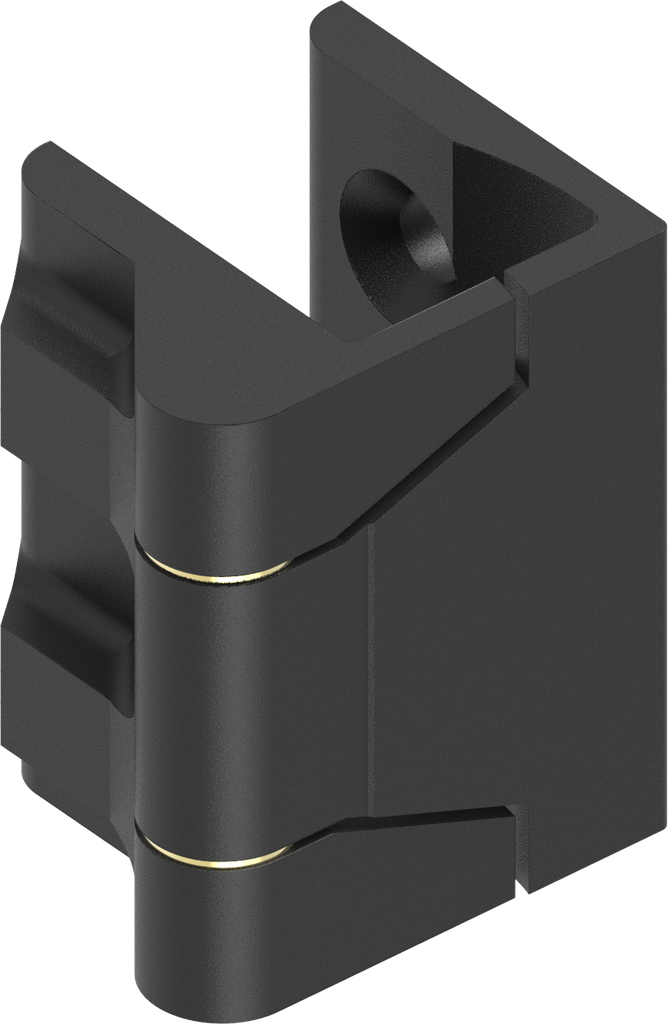

Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-170
Material of the module :
Zinc die
Surface of the module:
black powder-coated

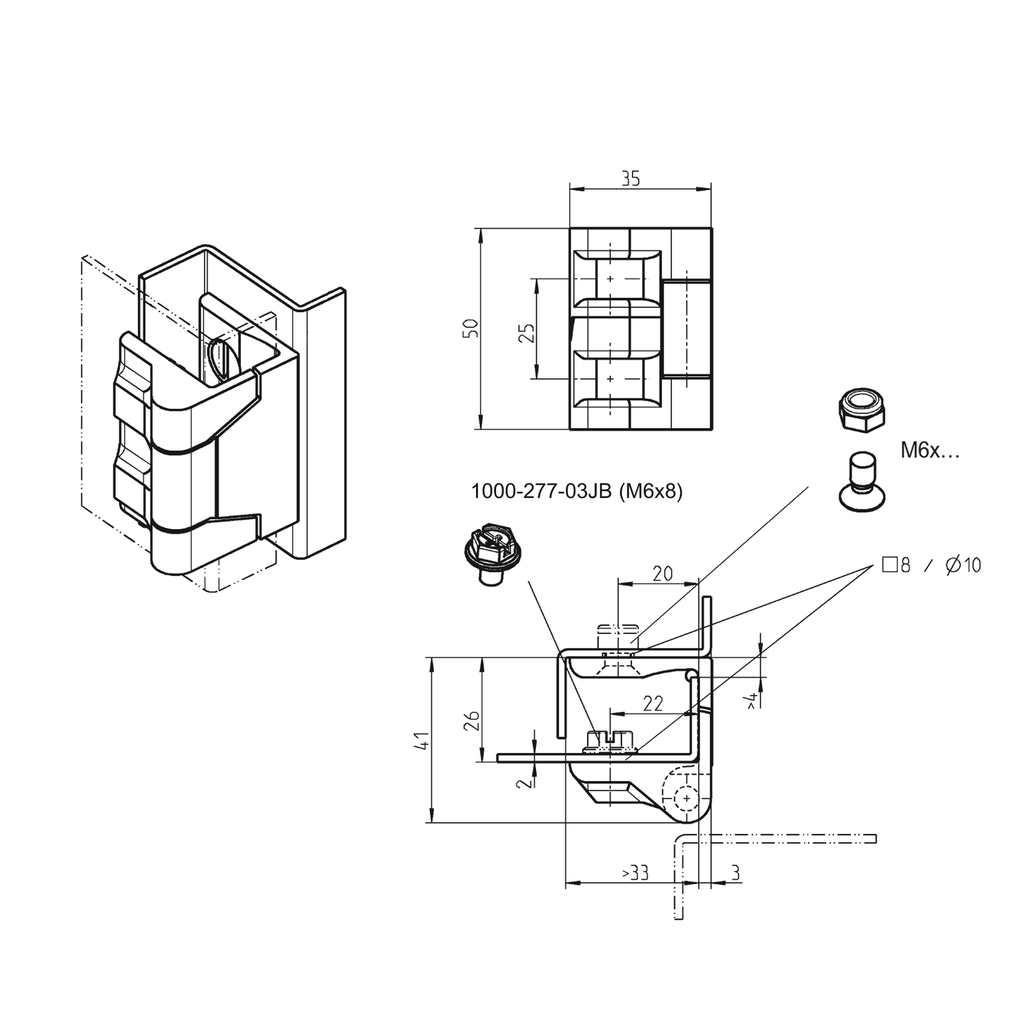

Dimension A, Variable:
26 mm
Detachable:
with tools
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M6
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
