180° Hinge, Zinc die and steel black powder-coated
180° Hinge, Zinc die and steel black powder-coated
180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316

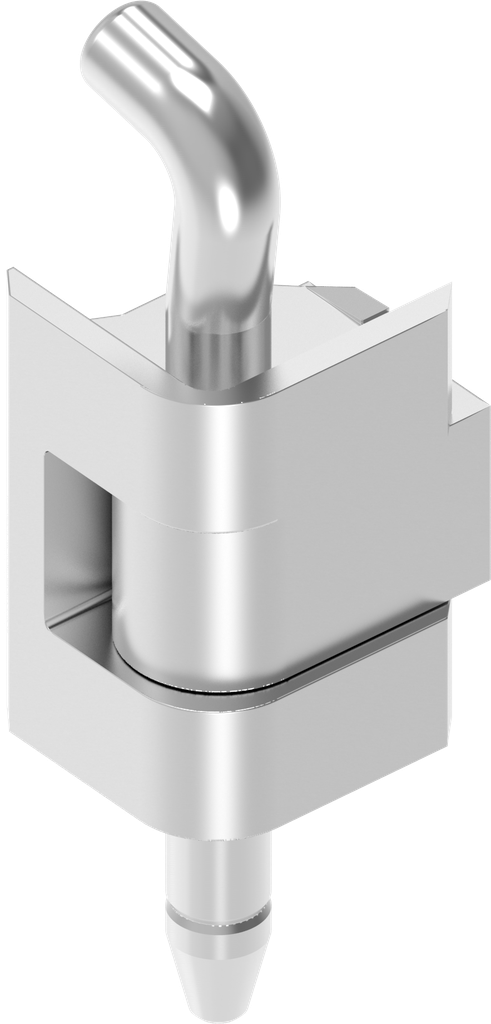

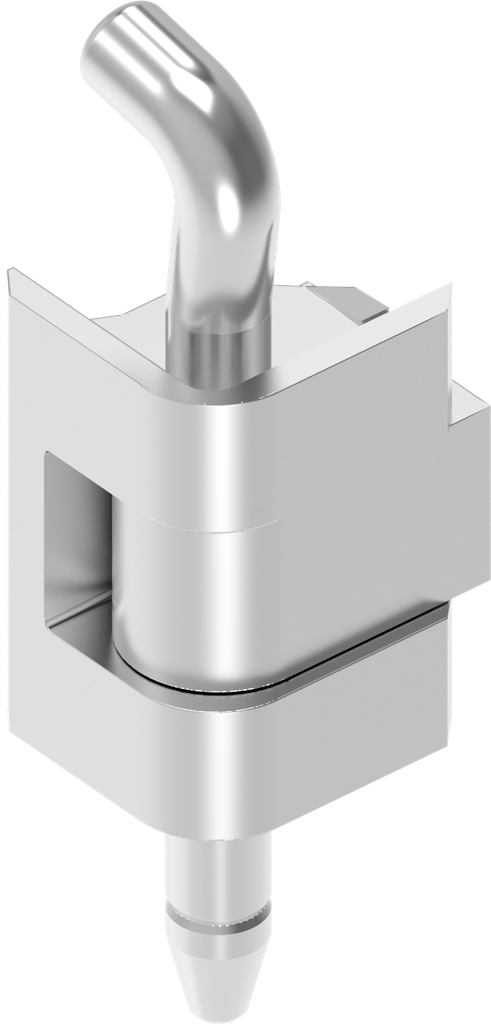

180° Hinge, Stainless steel AISI 316; 1110-U50

https://www.emka.com/products/1110-u50 https://www.emka.com/web/image/product.template/64202/image_1920?unique=f333e6b

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1110-U50
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-150
    Material of the module : Stainless steel AISI 316

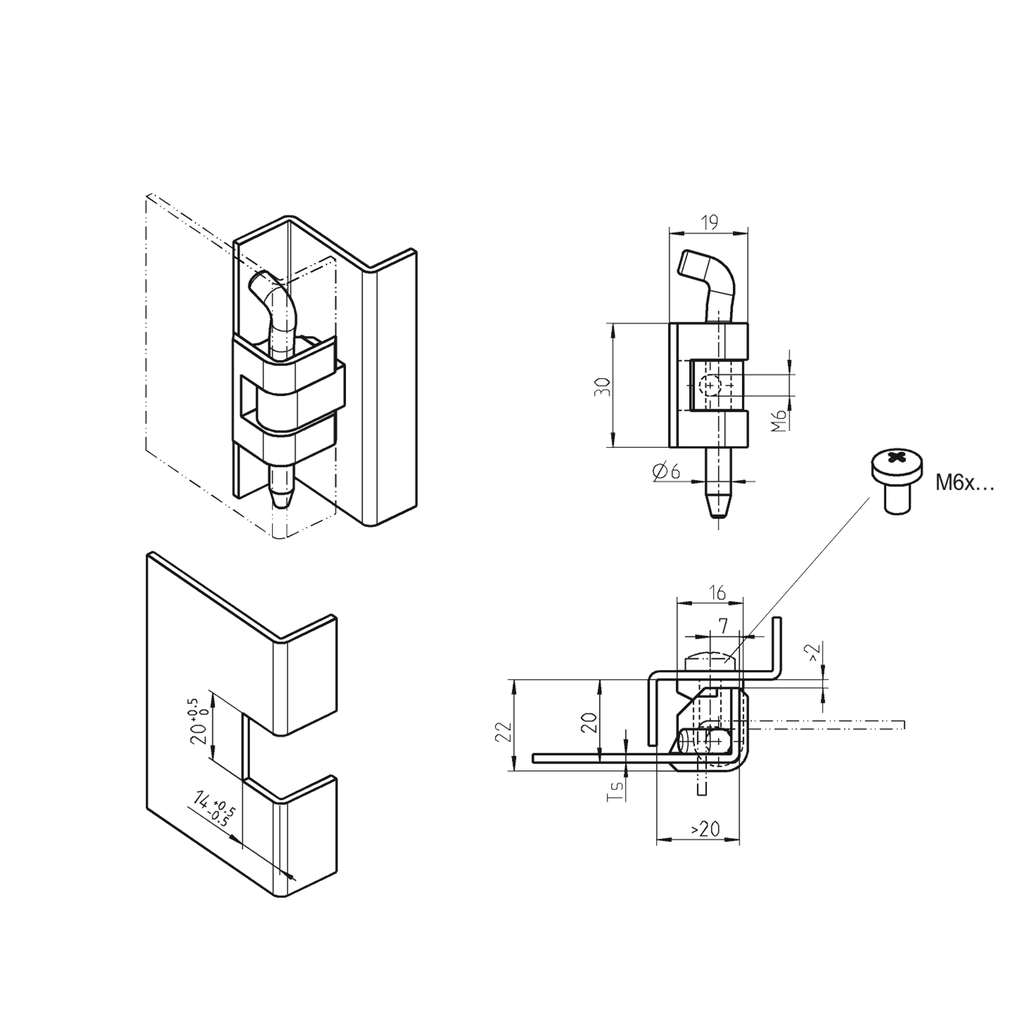

    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
