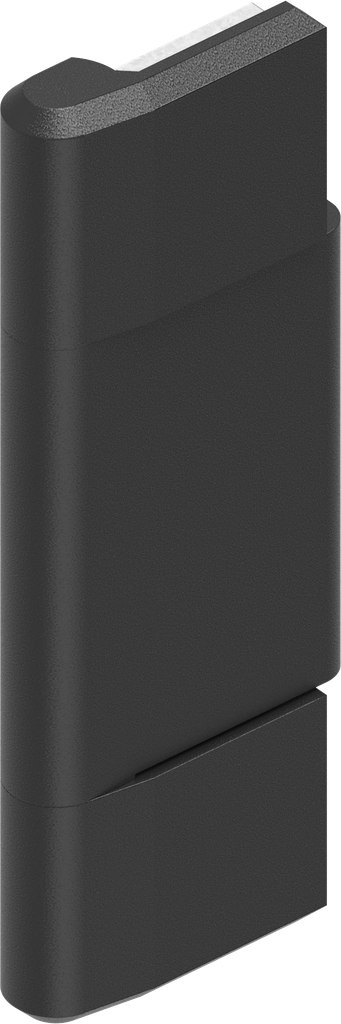

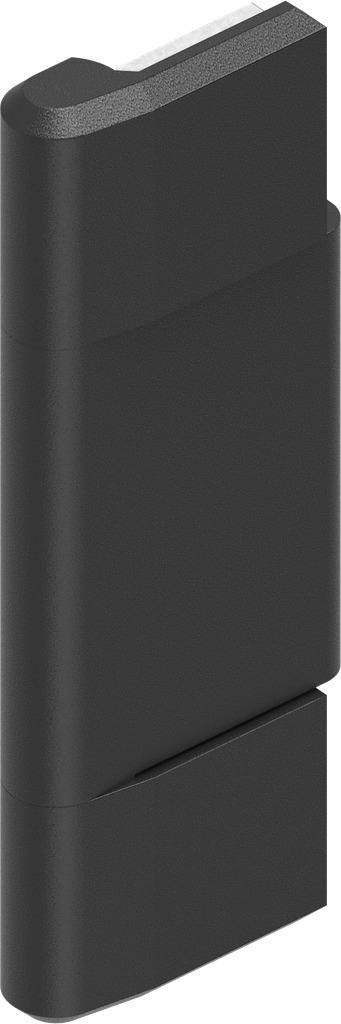

180° Hinge, Zinc die and steel black powder-coated; 1110-U26

https://www.emka.com/products/1110-u26 https://www.emka.com/web/image/product.template/64201/image_1920?unique=e8c3668

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1110-U26
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-450
    Material of the module : Zinc die and steel
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside, with press-fit threaded studs M5 x 12
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
