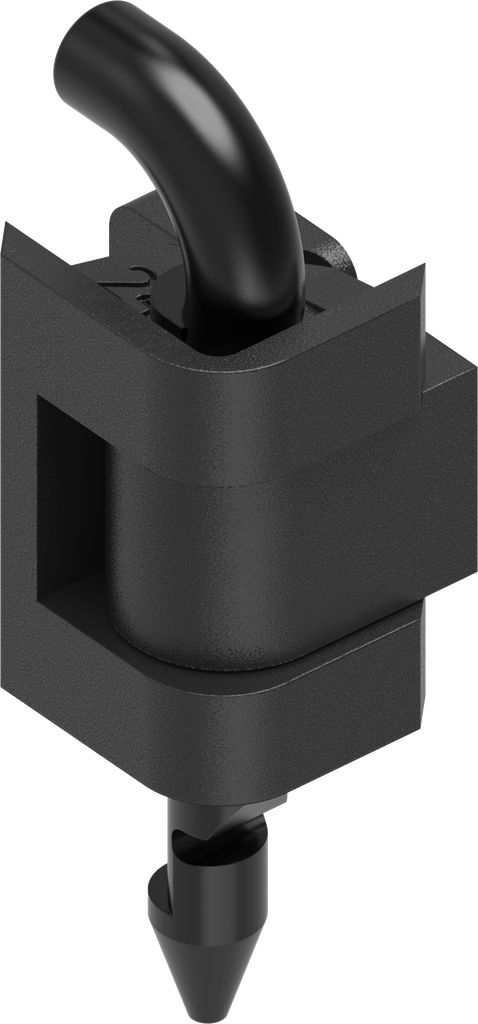

180° Hinge, Polyamide GF black
180° Hinge, Polyamide GF black
180° Hinge, Zinc die and steel black powder-coated
180° Hinge, Zinc die and steel black powder-coated

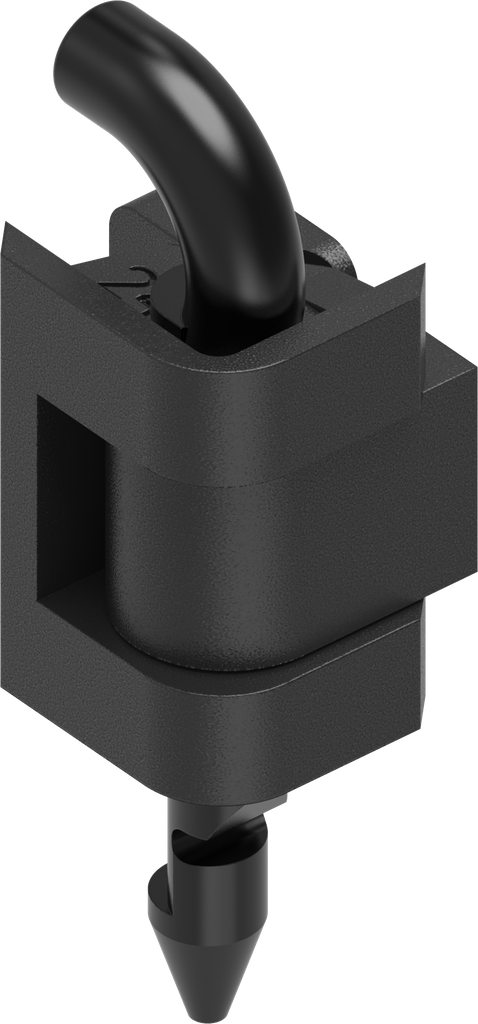

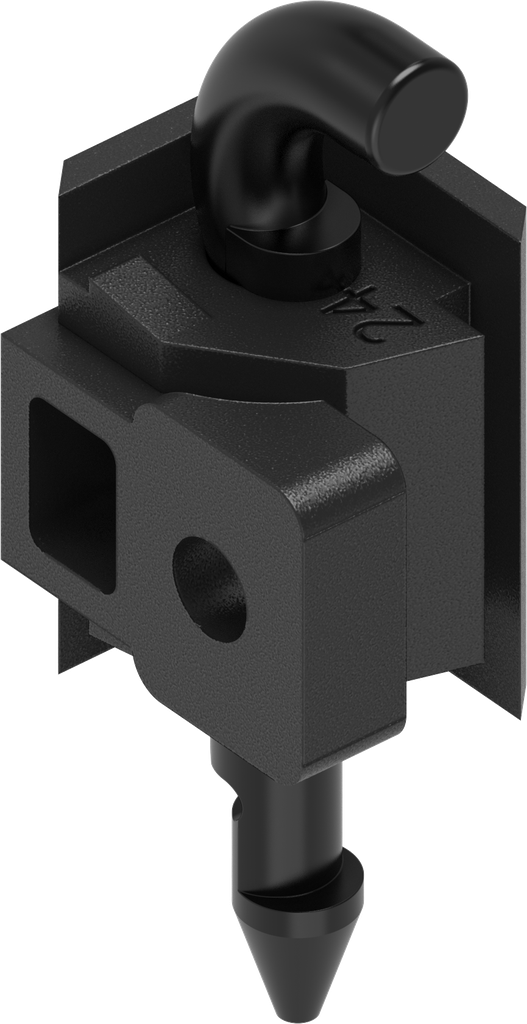

180° Hinge, Polyamide GF black; 1110-U24

https://www.emka.com/products/1110-u24 https://www.emka.com/web/image/product.template/64200/image_1920?unique=a6efbd8

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1110-U24
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-140
    Material of the module : Polyamide GF
    Surface of the module: black

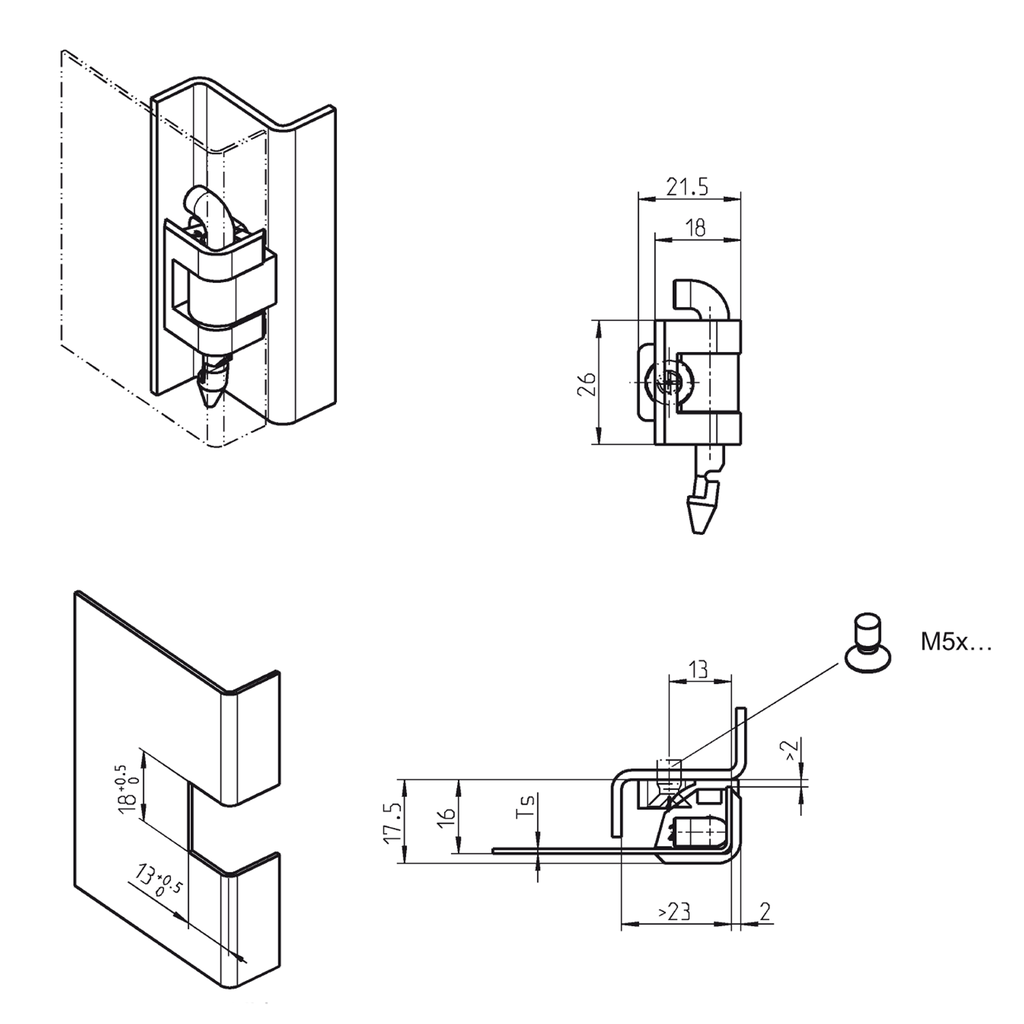

    Dimension A, Variable: 16 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
