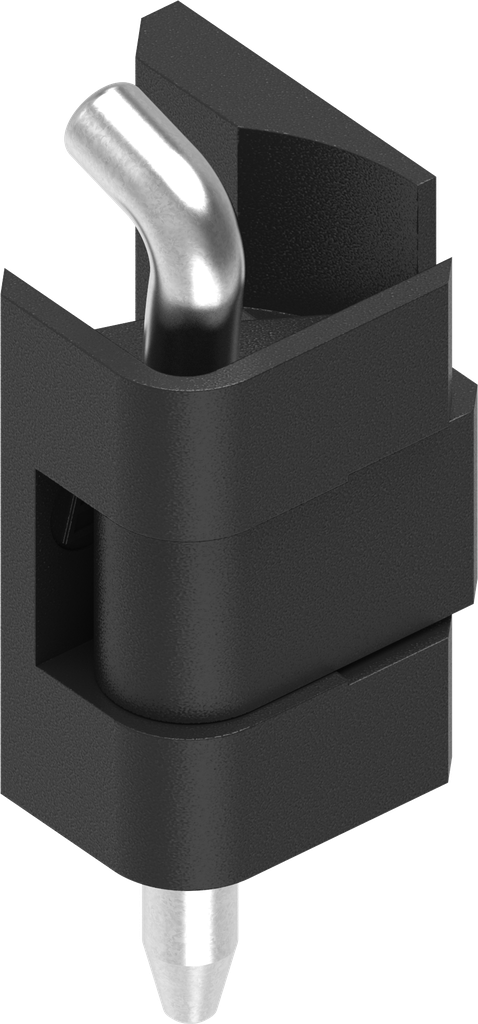

180° Hinge, Zinc die black powder-coated; 1110-U22

https://www.emka.com/products/1110-u22 https://www.emka.com/web/image/product.template/64198/image_1920?unique=80a99dc

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

    Akeneo Note:

    With locking slug M6 at hinge frame part
    Internal Reference: 1110-U22
    Product Type: Hinge
    Program: 1110

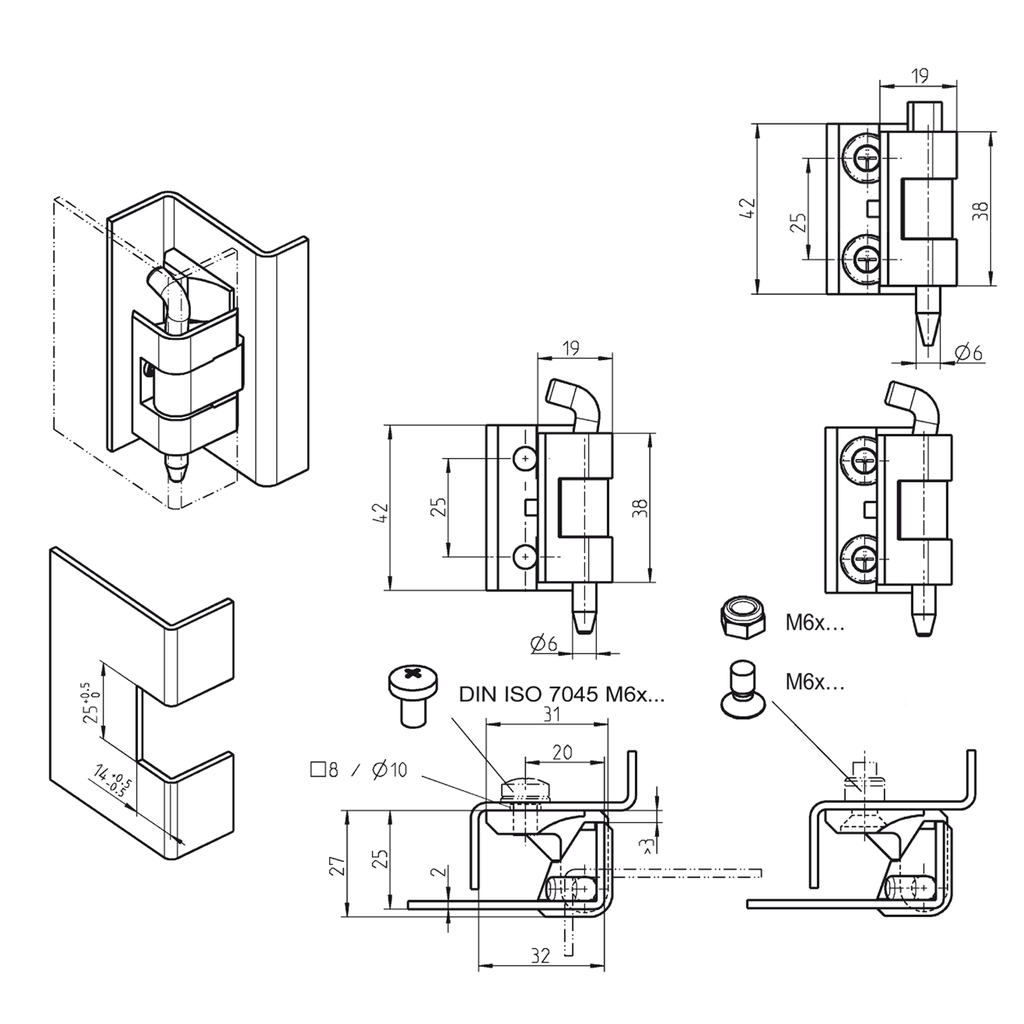

    Catalog sheet: 4A-140
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
