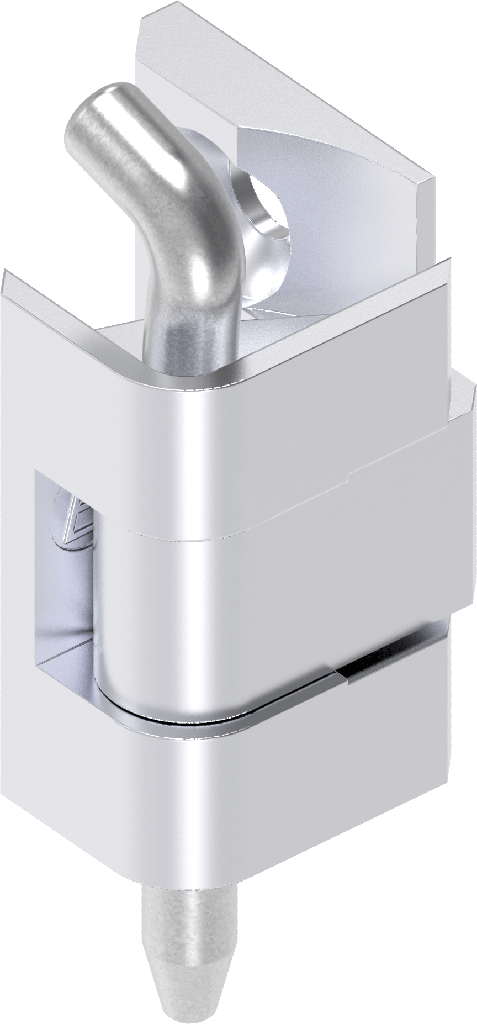

180° Hinge, Zinc die chrome-plated; 1110-U19

https://www.emka.com/products/1110-u19 https://www.emka.com/web/image/product.template/64195/image_1920?unique=c6184df

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

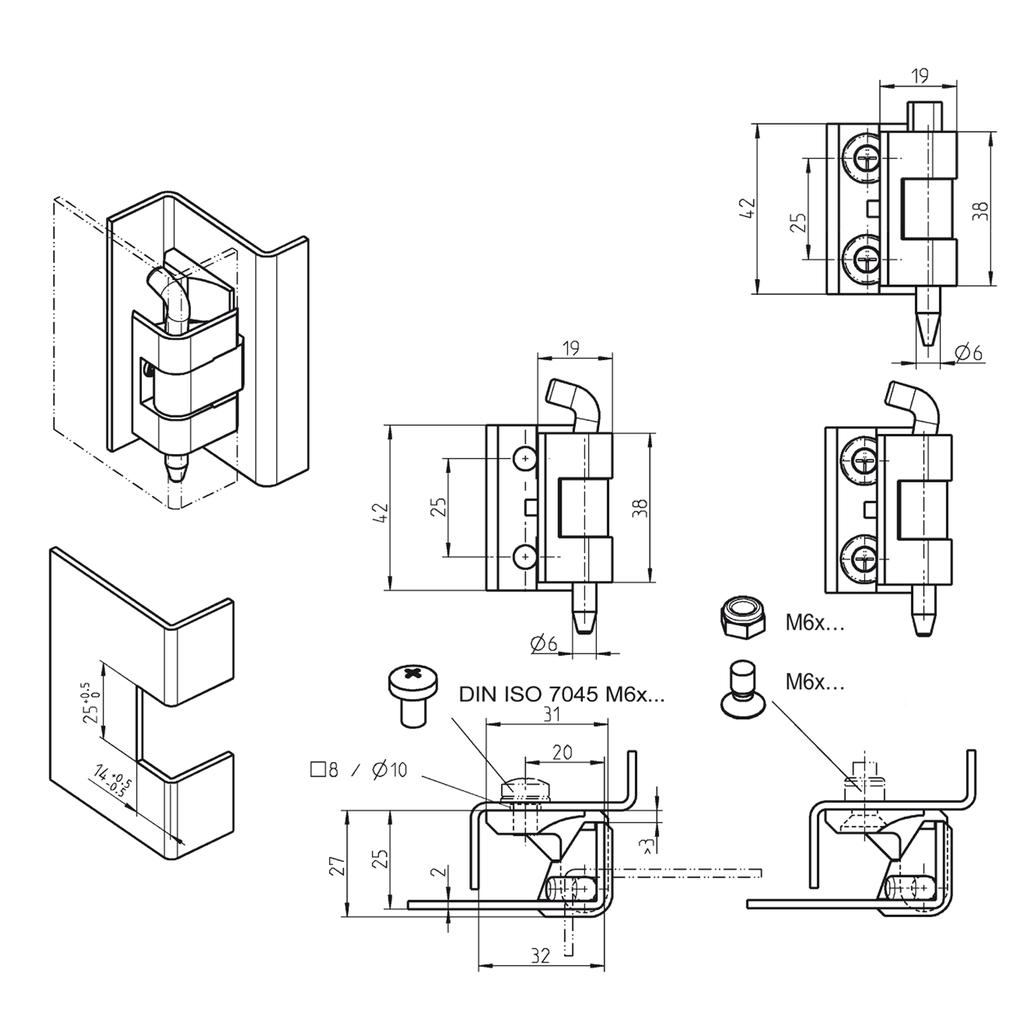

    Internal Reference: 1110-U19
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimension A, Variable: 25 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
