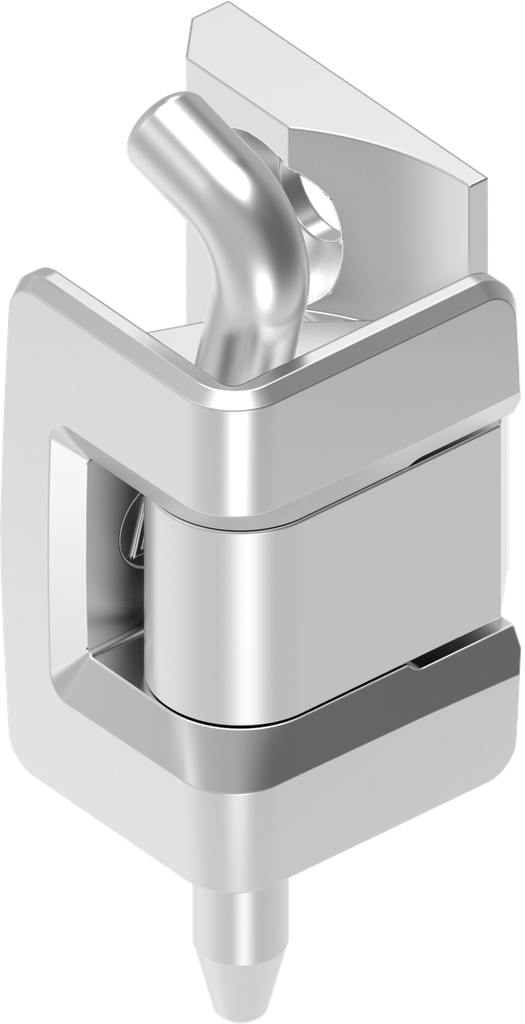

180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316

180° Hinge, Stainless steel AISI 316; 1110-U136

https://www.emka.com/products/1110-u136-180-hinge-stainless-steel-aisi-316-218946 https://www.emka.com/web/image/product.template/218946/image_1920?unique=12b6d24

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1110-U136
    Barcode: 1110-U00136-0000000
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-145
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 25 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 0.80 mm
    Suitable for door thicknesses up to: 1 mm
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products

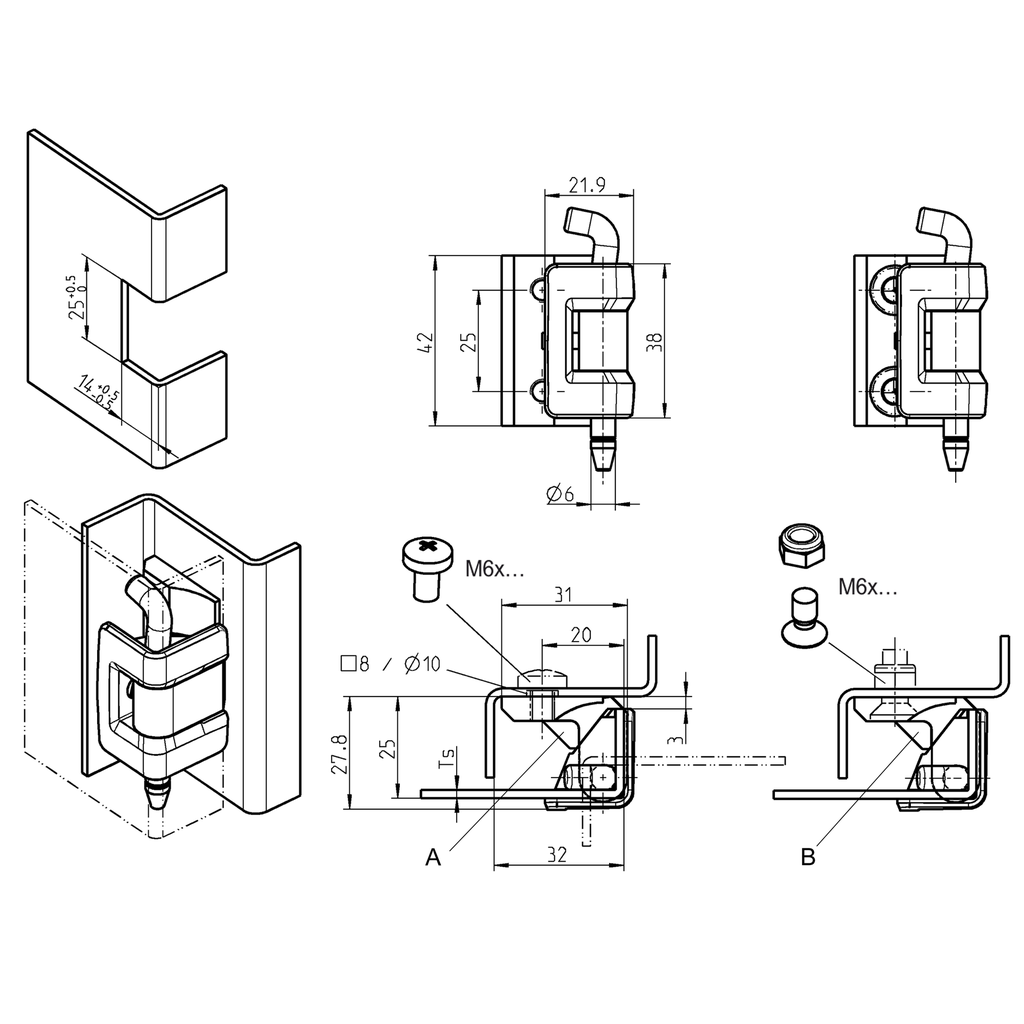

    Here you can find the product data sheets and CAD files of this product
