180° Hinge, left version, Zinc die and steel black powder-coated
180° Hinge, left version, Zinc die and steel black powder-coated
180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316

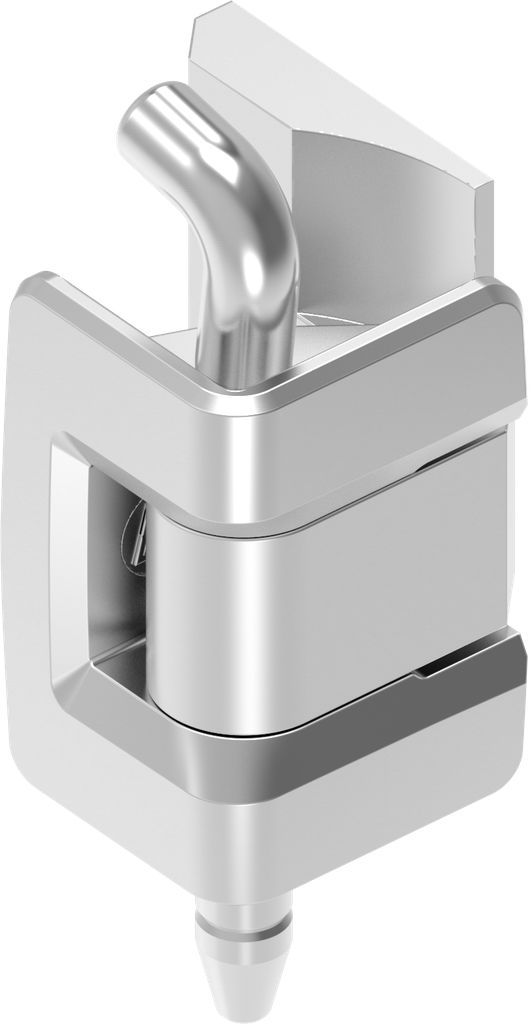

180° Hinge, Stainless steel AISI 316; 1110-U135

https://www.emka.com/products/1110-u135 https://www.emka.com/web/image/product.template/218945/image_1920?unique=02619e9

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1110-U135
    Product Type: Hinge
    Program: 1110

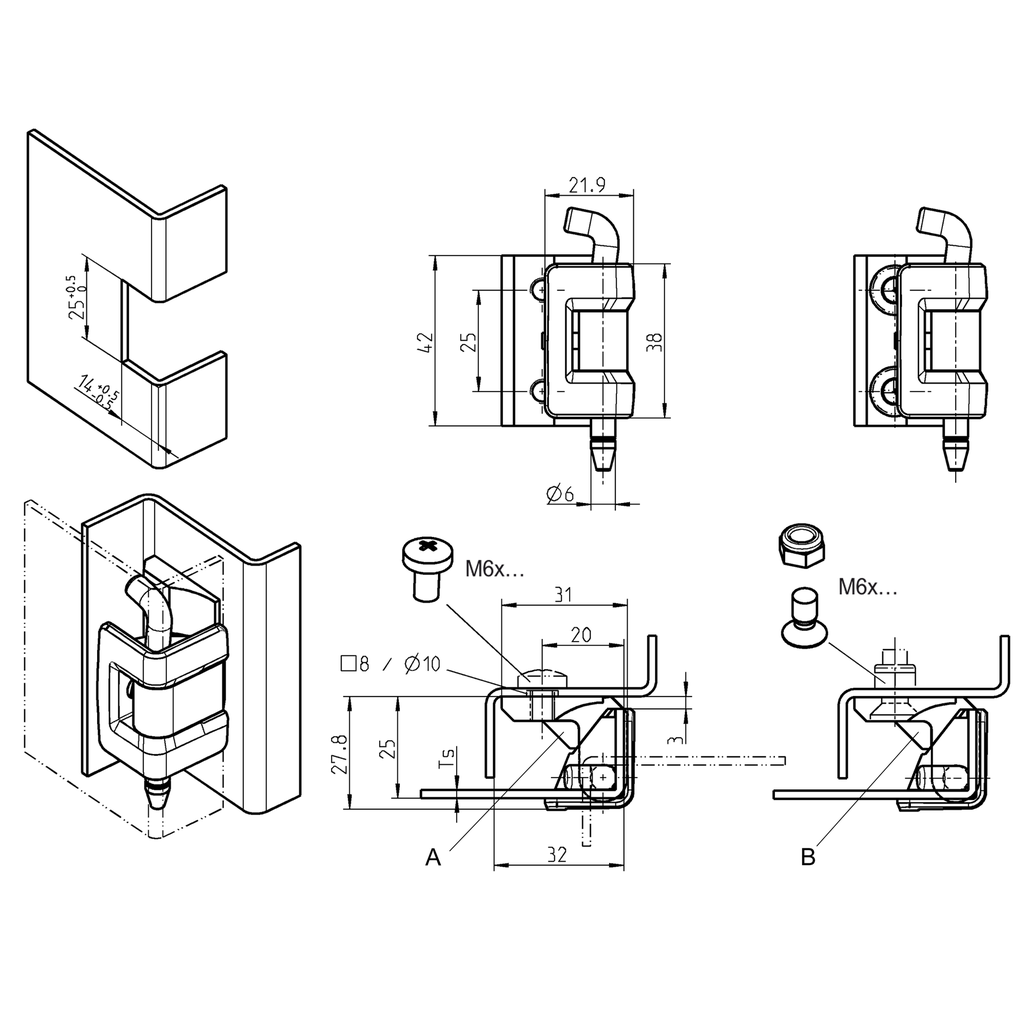

    Catalog sheet: 4A-145
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 25 mm
    Execution: A
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
