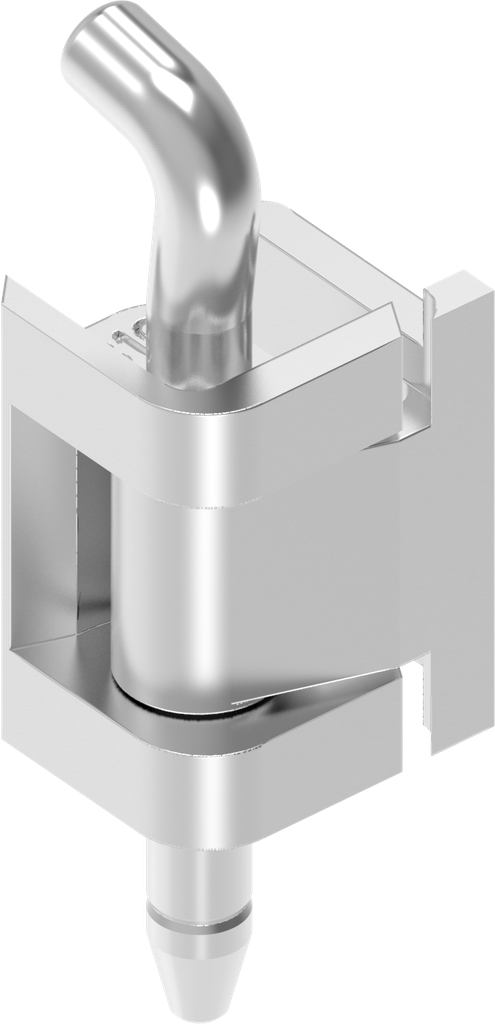

180° Hinge, Stainless steel AISI 316; 1110-U132

https://www.emka.com/products/1110-u132 https://www.emka.com/web/image/product.template/64243/image_1920?unique=824f0e6

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

    Product information:

    Frame part with M6 thread and centring pin

    For frame thickness 1.5:
    Washer DIN ISO 7089 - 6 and
    Hexagon head screw DIN ISO 4017 M6 x 6
    Internal Reference: 1110-U132
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-160
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    No Matching Products

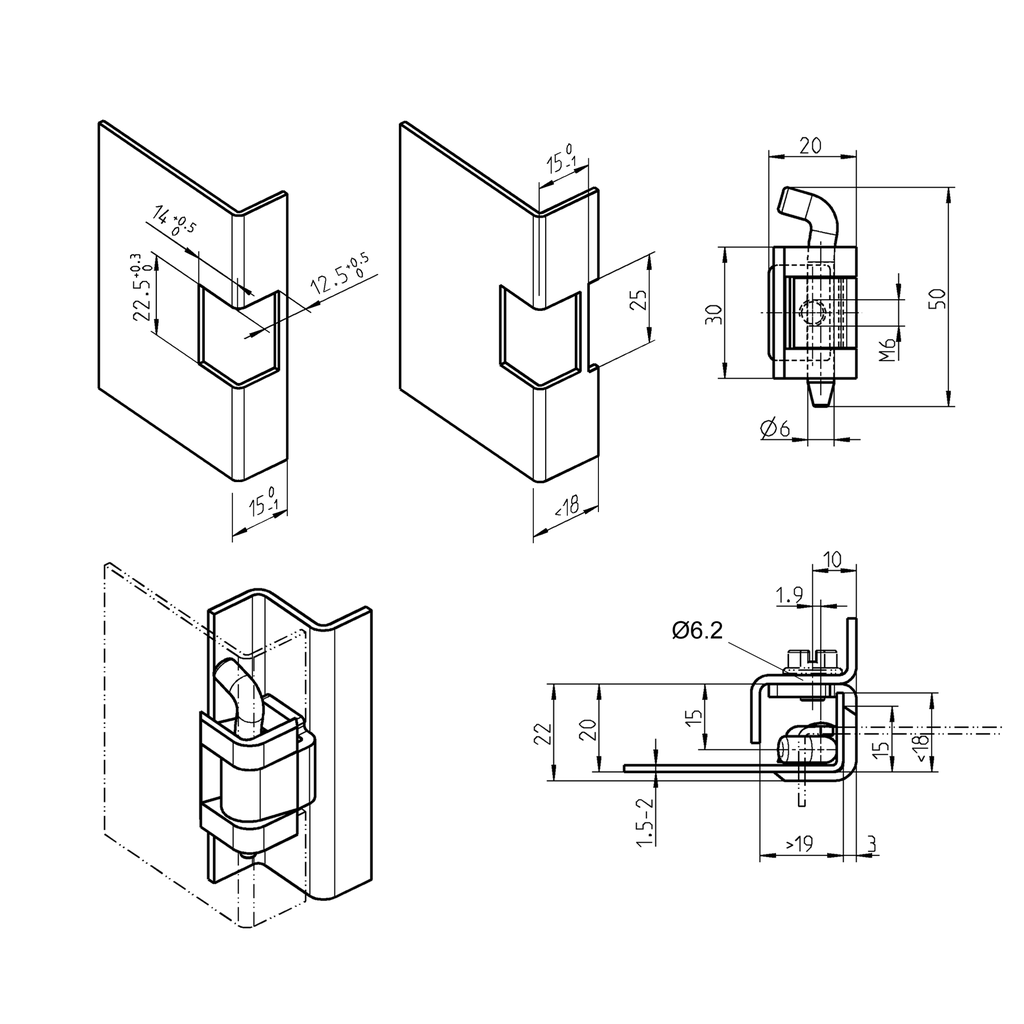

    Here you can find the product data sheets and CAD files of this product
