180° Hinge, Polyamide GF black
180° Hinge, Polyamide GF black
180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated

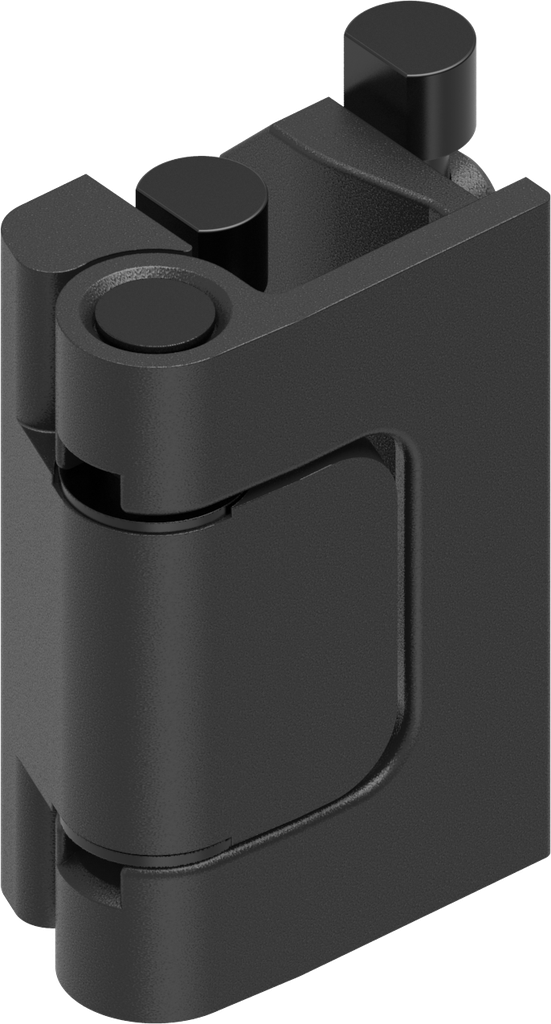

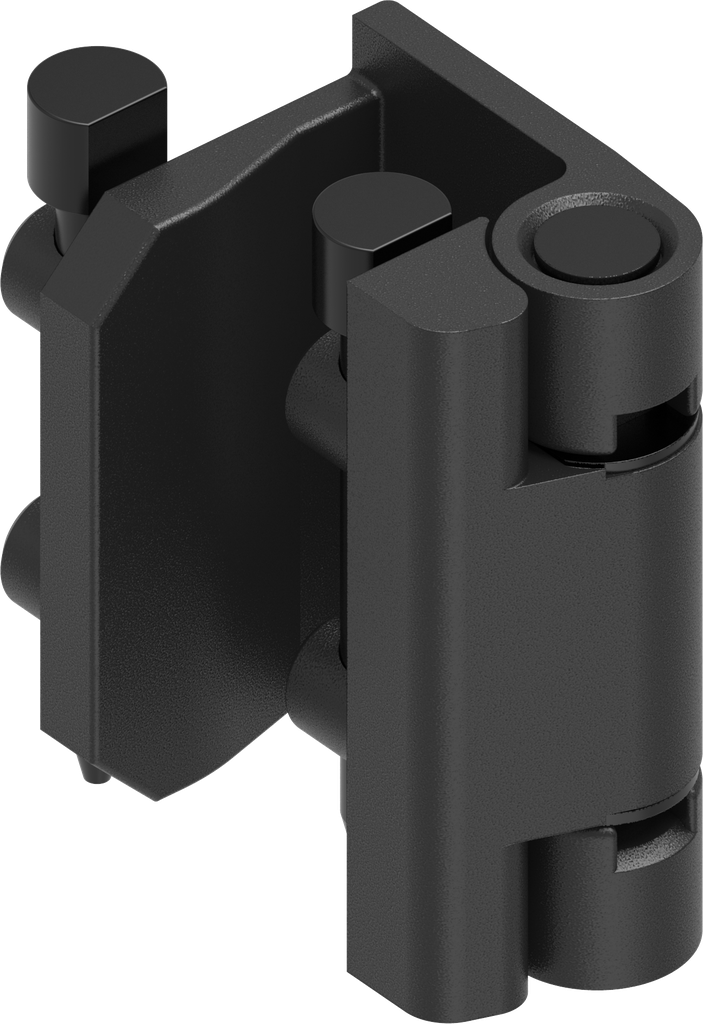

180° Hinge, Zinc die black powder-coated; 1110-U126

https://www.emka.com/products/1110-u126 https://www.emka.com/web/image/product.template/64237/image_1920?unique=0705b63

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us

    Product information:

    Can be lifted off at 90° opening angle
    Internal Reference: 1110-U126
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-215
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Article with property rights: Yes
    Execution: C+D
    Detachable: with tools, for 90° opening angle
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: clamp-on / clip fix
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Shim

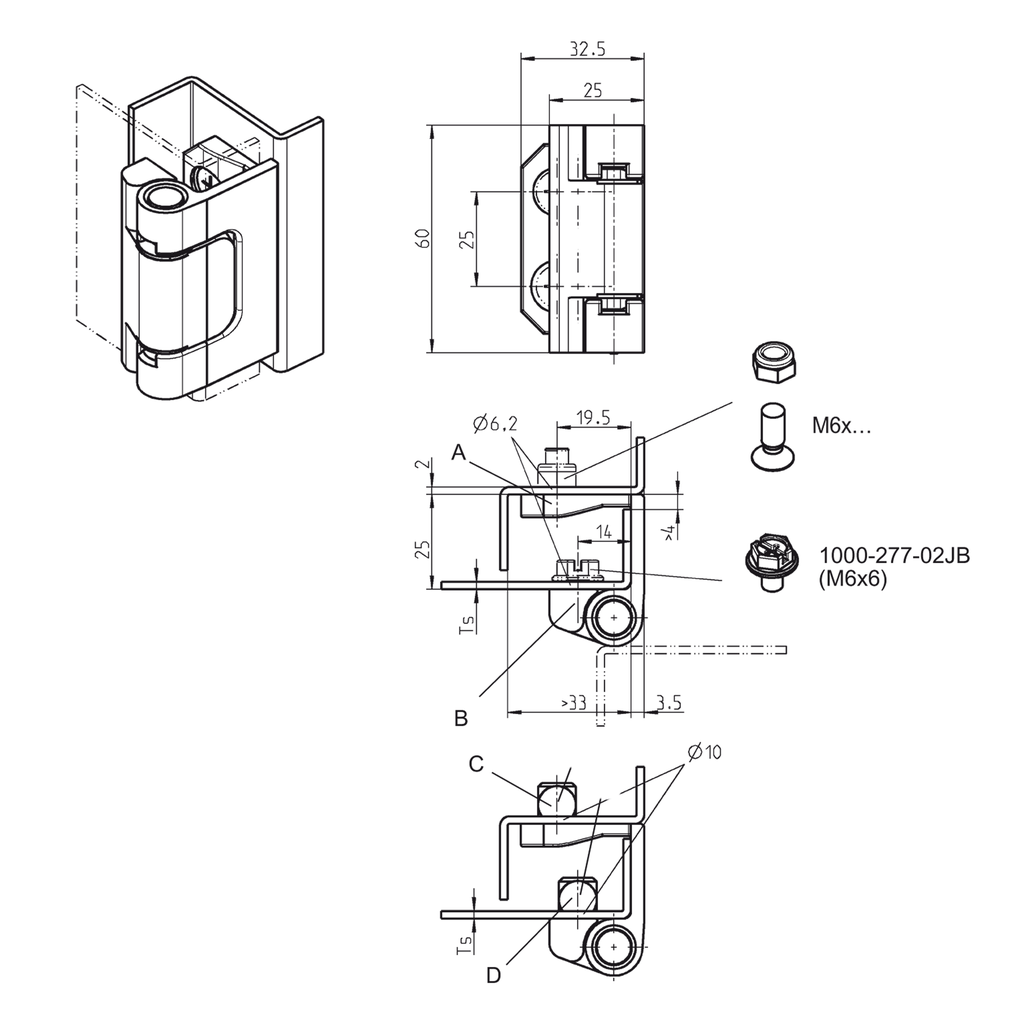

    Here you can find the product data sheets and CAD files of this product
