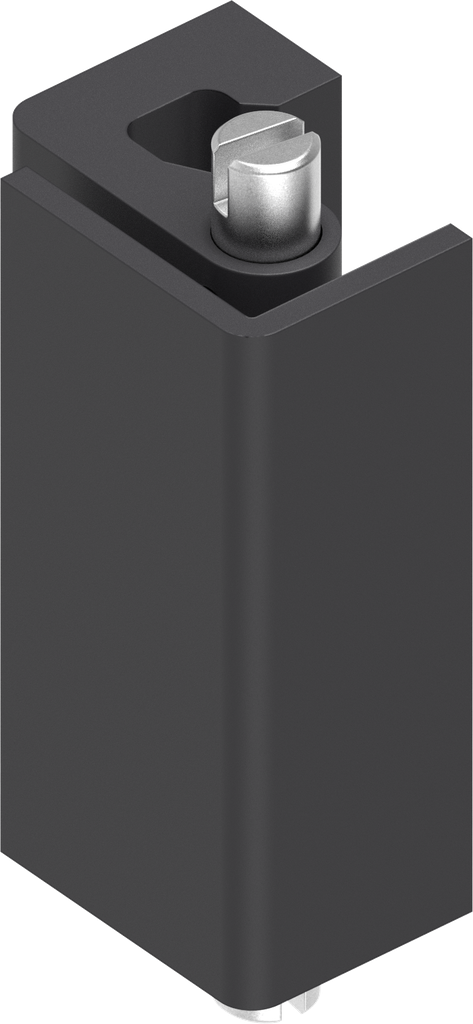

120° Hinge with quick fastening system, Zinc die black powder-coated; 1110-U111
Product information:
① = Push pin in against spring pressure and unlock by turning
Internal Reference:
1110-U111
Product Type:
Hinge
Program:
1110
Catalog sheet:
4A-480
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Detachable:
with tools
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside, with female thread M6
Grounding possible:
Yes
Hole pattern required in the door:
Notch in the door
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
