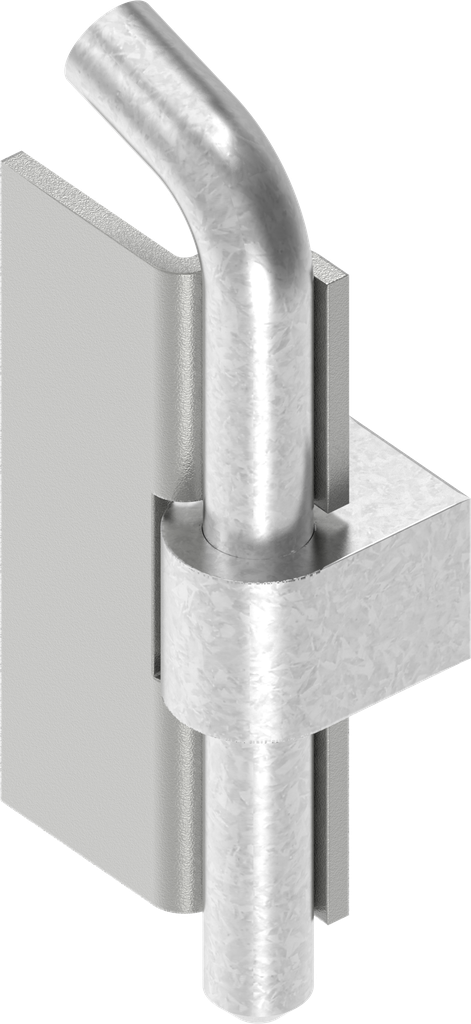

180° Hinge, Steel zinc-plated and raw; 1110-U1

https://www.emka.com/products/1110-u1 https://www.emka.com/web/image/product.template/64187/image_1920?unique=a870938

Weld-on part m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1110-U1
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-121
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 20 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4A-121
    Product data sheet
    CAD file | 1110-U1_igs
    CAD file | 1110-U1_stp
