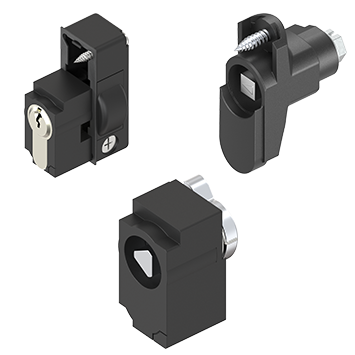

  5. Locking set
Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Locking set with insert square 6, Polyamide GF black
Locking set with insert square 6, Polyamide GF black

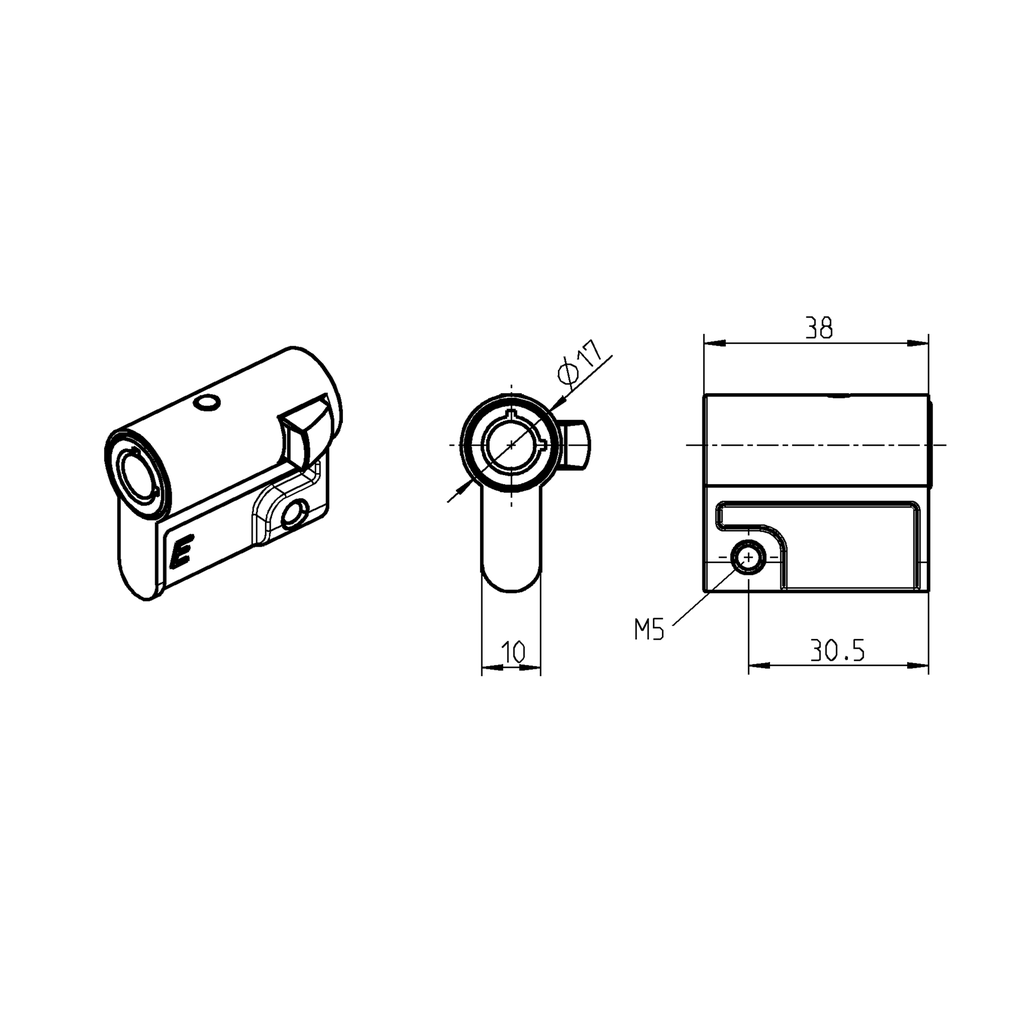

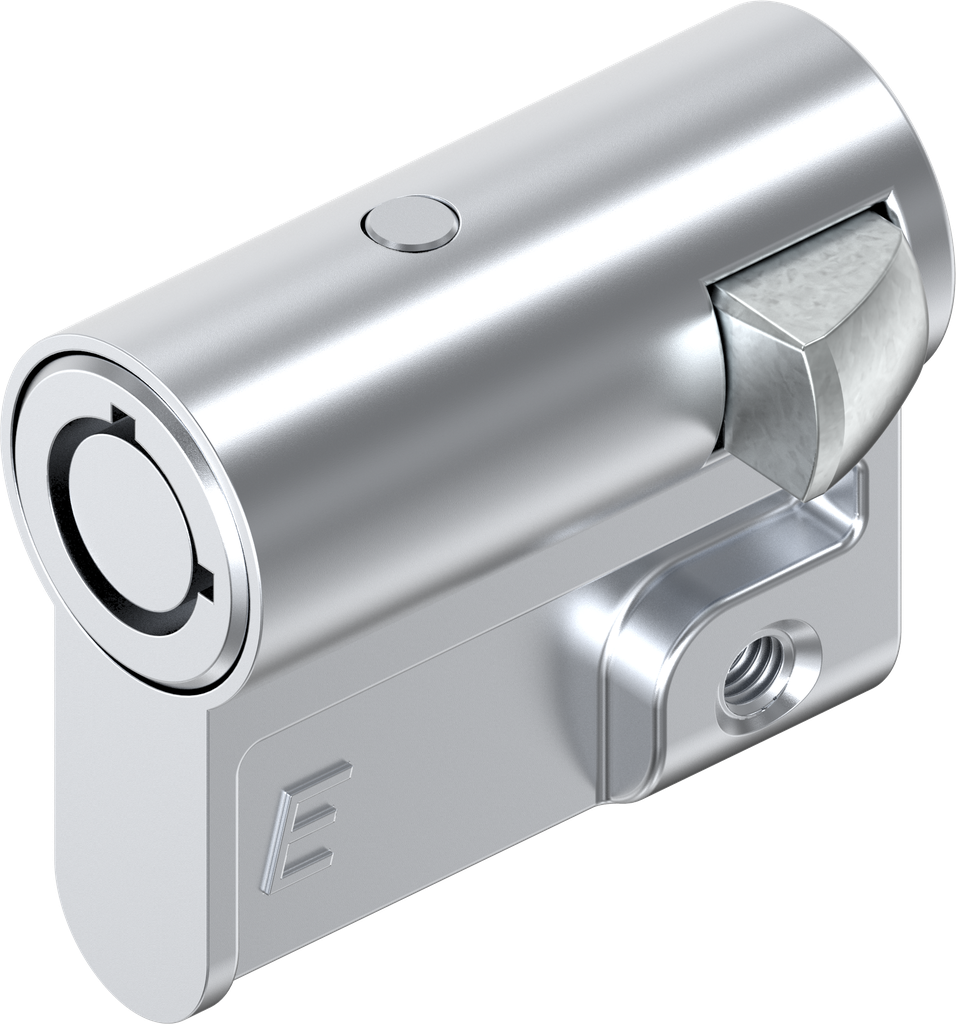

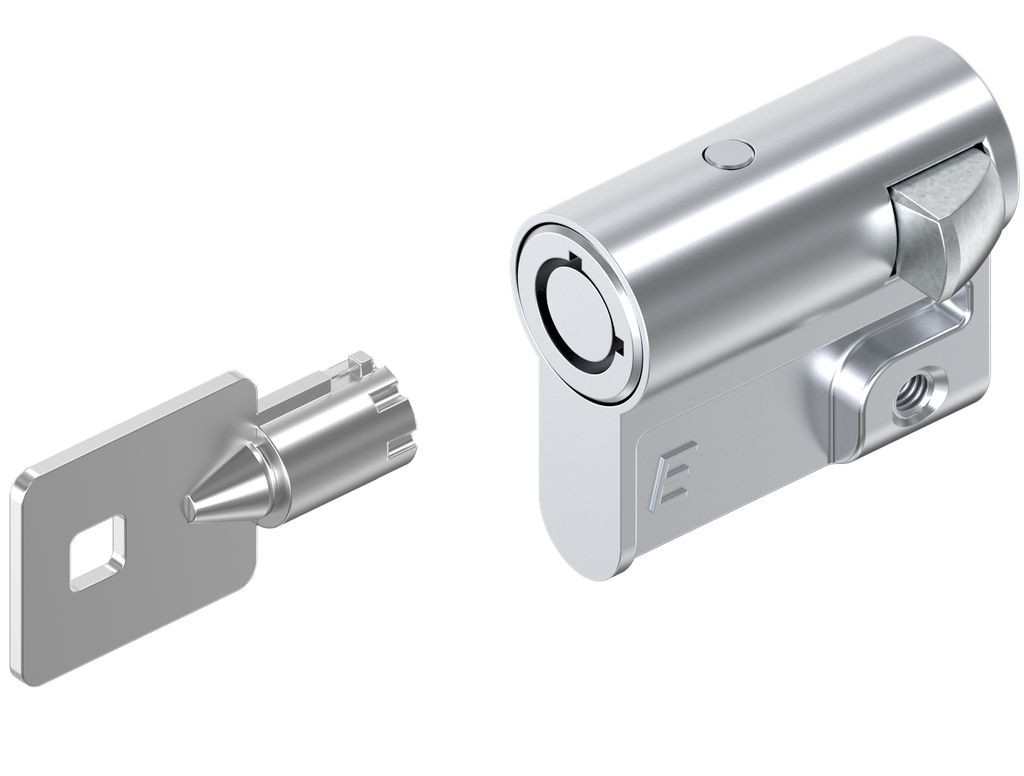

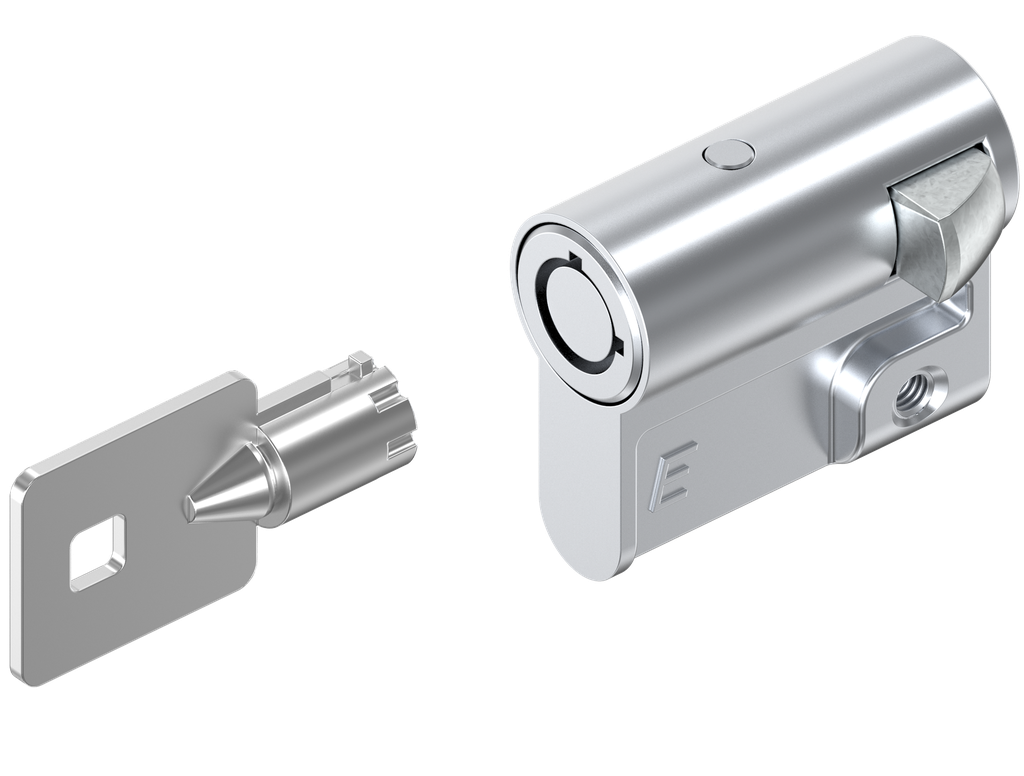

Profile half cylinder with radial pin cylinder keyed different, Zinc die chrome-plated; 1109-U61

https://www.emka.com/products/1109-u61 https://www.emka.com/web/image/product.template/217948/image_1920?unique=a051f37

A = 30 mm

    This combination does not exist.

    Contact Us

    Function:

    Key only removable in locked position
    Internal Reference: 1109-U61
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Radial Pin Cylinder: Differently keyed
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
    View All Products

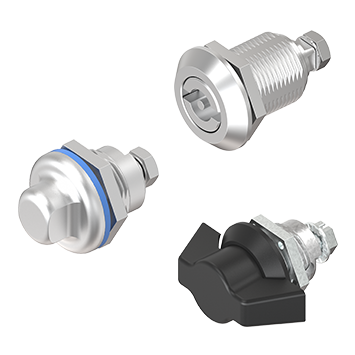

    Quarter turn

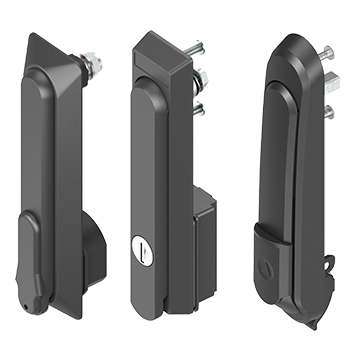

    Swinghandle, Lifthandle
