Profile half cylinder with round cylinder keyed different, Zinc die chrome-plated
Profile half cylinder with round cylinder keyed different, Zinc die chrome-plated
Blind plug, Polyamide GF black
Blind plug, Polyamide GF black

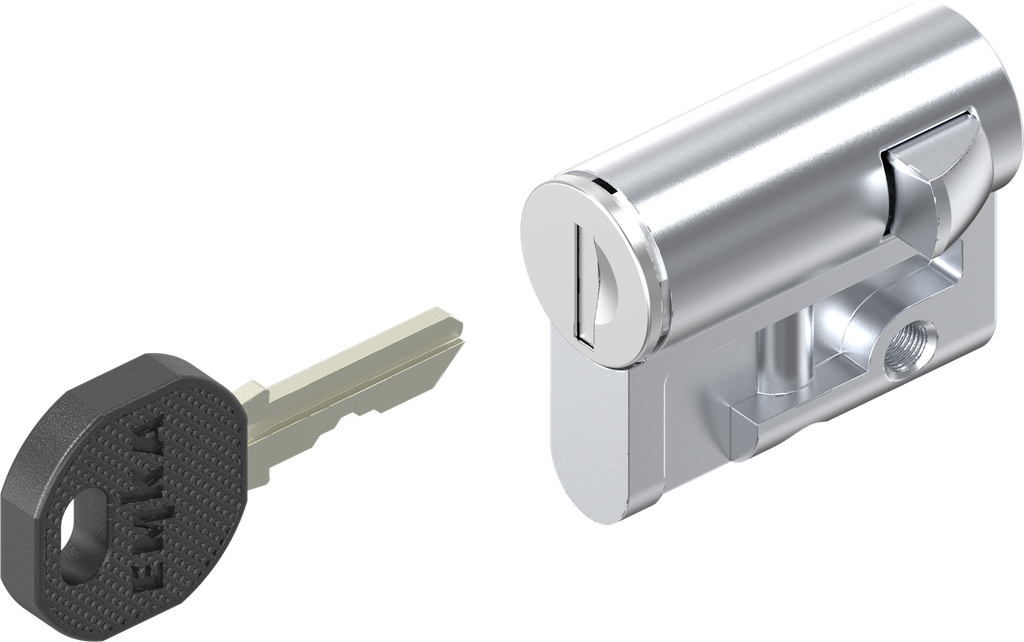

Profile half cylinder with round cylinder keyed EK 333, Zinc die chrome-plated; 1109-U2-N

https://www.emka.com/products/1109-u2-n https://www.emka.com/web/image/product.template/64006/image_1920?unique=499345c

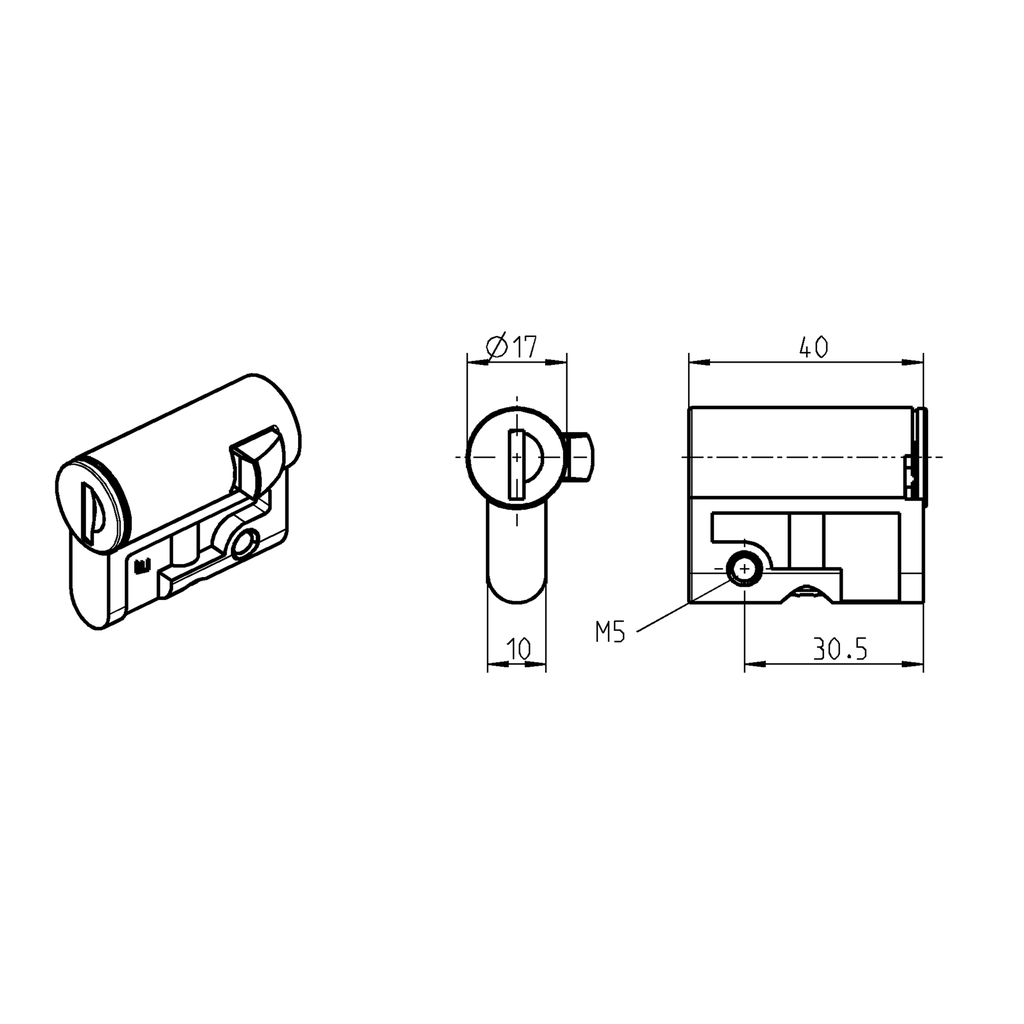

A = 30 mm

    This combination does not exist.

    Contact Us

    Function:

    Key removable only in locked position
    Spring-loaded return of locking cam into locked position
    Internal Reference: 1109-U2-N
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Round Cylinder Type: EMKA EK, keyed EK 333
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
    View All Products
    Quarter turn
    Swinghandle, Lifthandle
    Keys
    Assembly

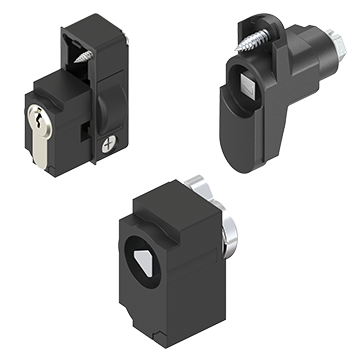

    Locking set
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3XB-120
    Product data sheet
    CAD file | 1109-U2-N_igs
    CAD file | 1109-U2-N_stp
