Profile half cylinder with insert hexagon female SW8, Zinc die chrome-plated
Profile half cylinder with insert hexagon female SW8, Zinc die chrome-plated
Profile half cylinder with radial pin cylinder keyed different, Zinc die chrome-plated
Profile half cylinder with radial pin cylinder keyed different, Zinc die chrome-plated

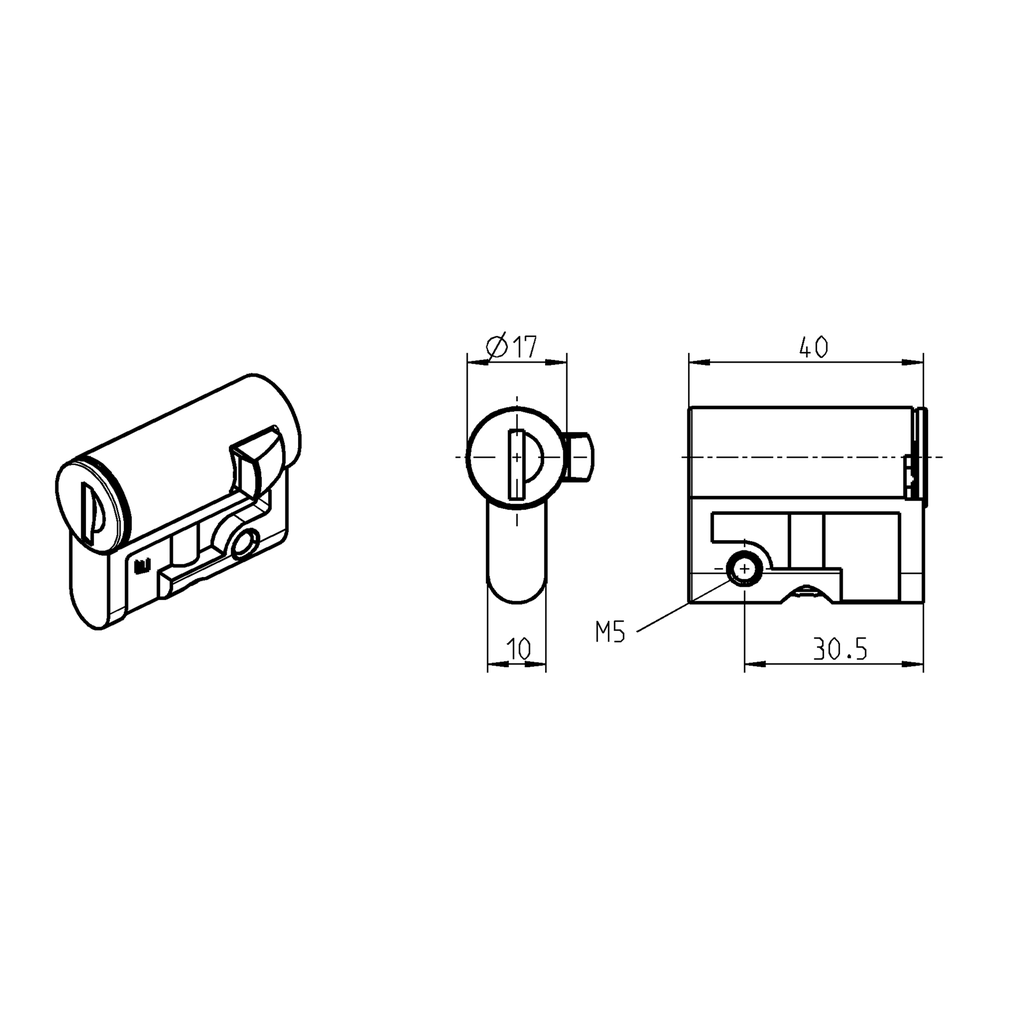

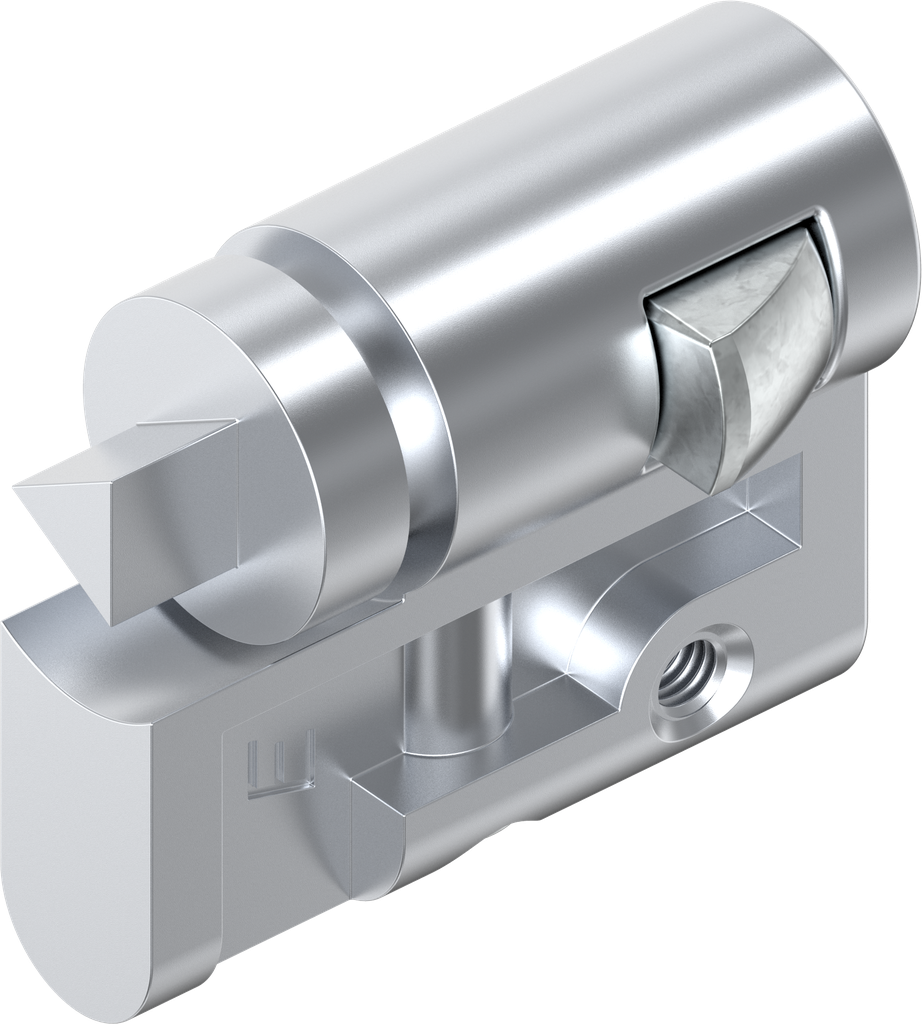

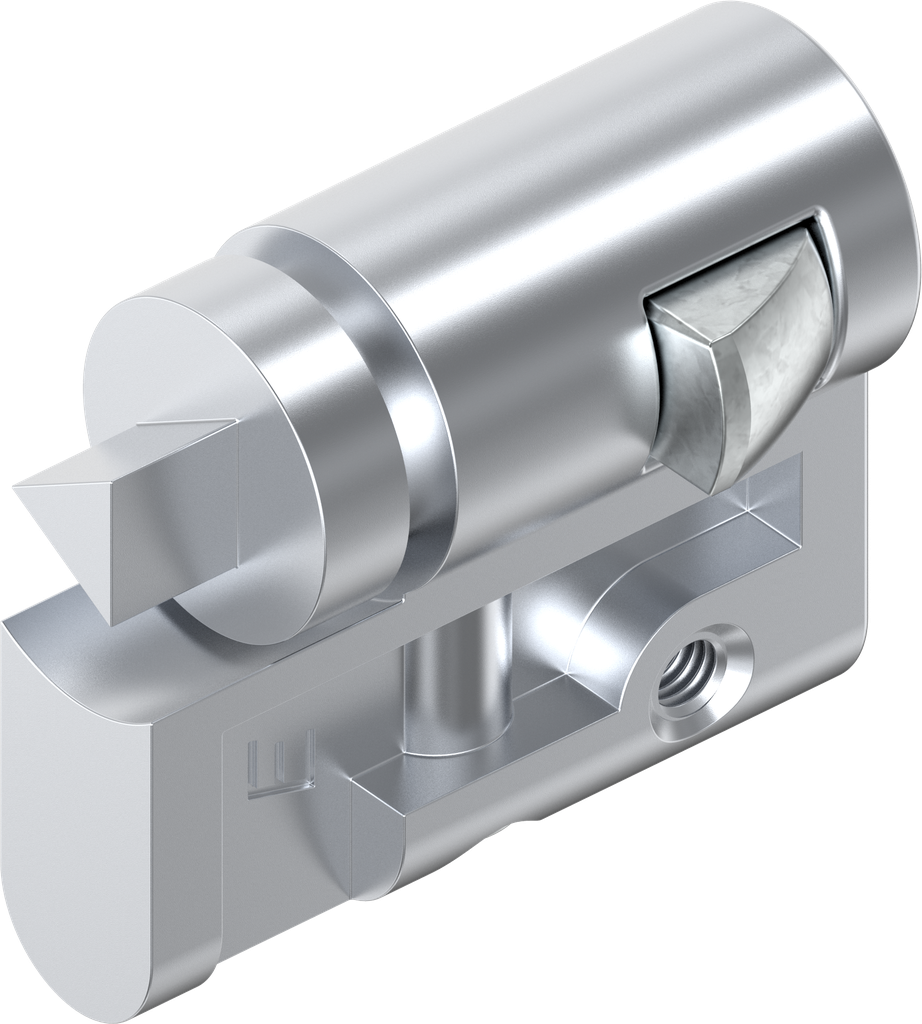

Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated; 1109-U17-N

https://www.emka.com/products/1109-u17-n https://www.emka.com/web/image/product.template/217902/image_1920?unique=fec1bee

A = 30 mm

    This combination does not exist.

    Contact Us

    Function:

    Spring-loaded return of locking cam into locked position
    Internal Reference: 1109-U17-N
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Type of actuation: Triangular 6.5 CNOMO
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
    View All Products
    Keys
    Swinghandle, Lifthandle
    Assembly
    Locking set
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3XB-120
    Product data sheet
    CAD file | 1109-U17-N_igs
    CAD file | 1109-U17-N_stp
