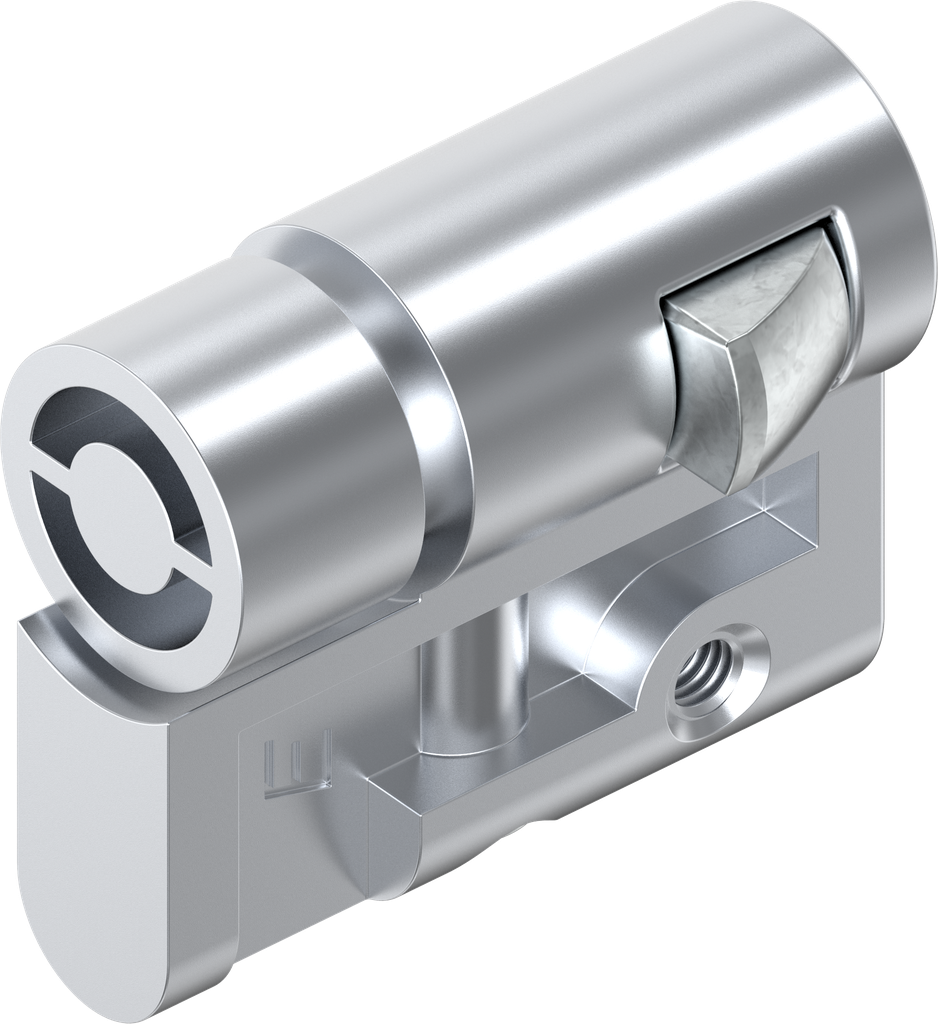

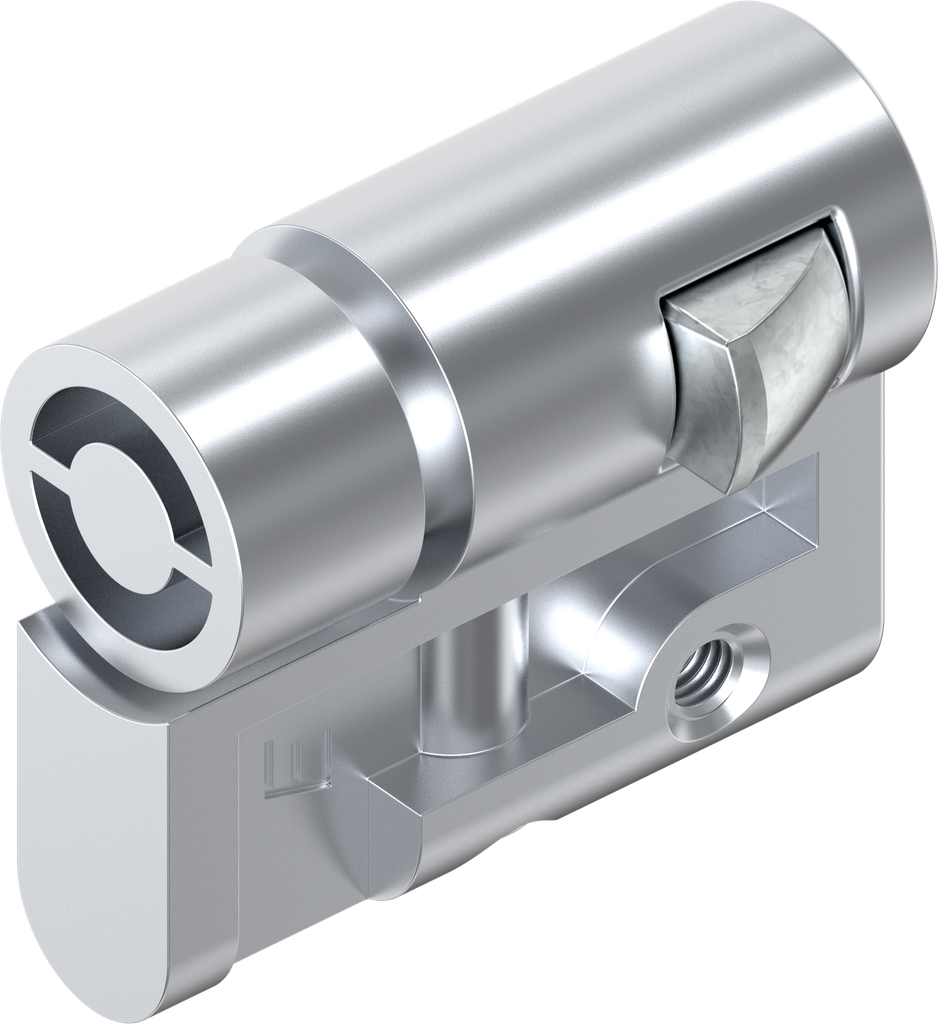

Profile half cylinder with insert Daimler Benz, Zinc die chrome-plated; 1109-U15-N

https://www.emka.com/products/1109-u15-n https://www.emka.com/web/image/product.template/64018/image_1920?unique=1189194

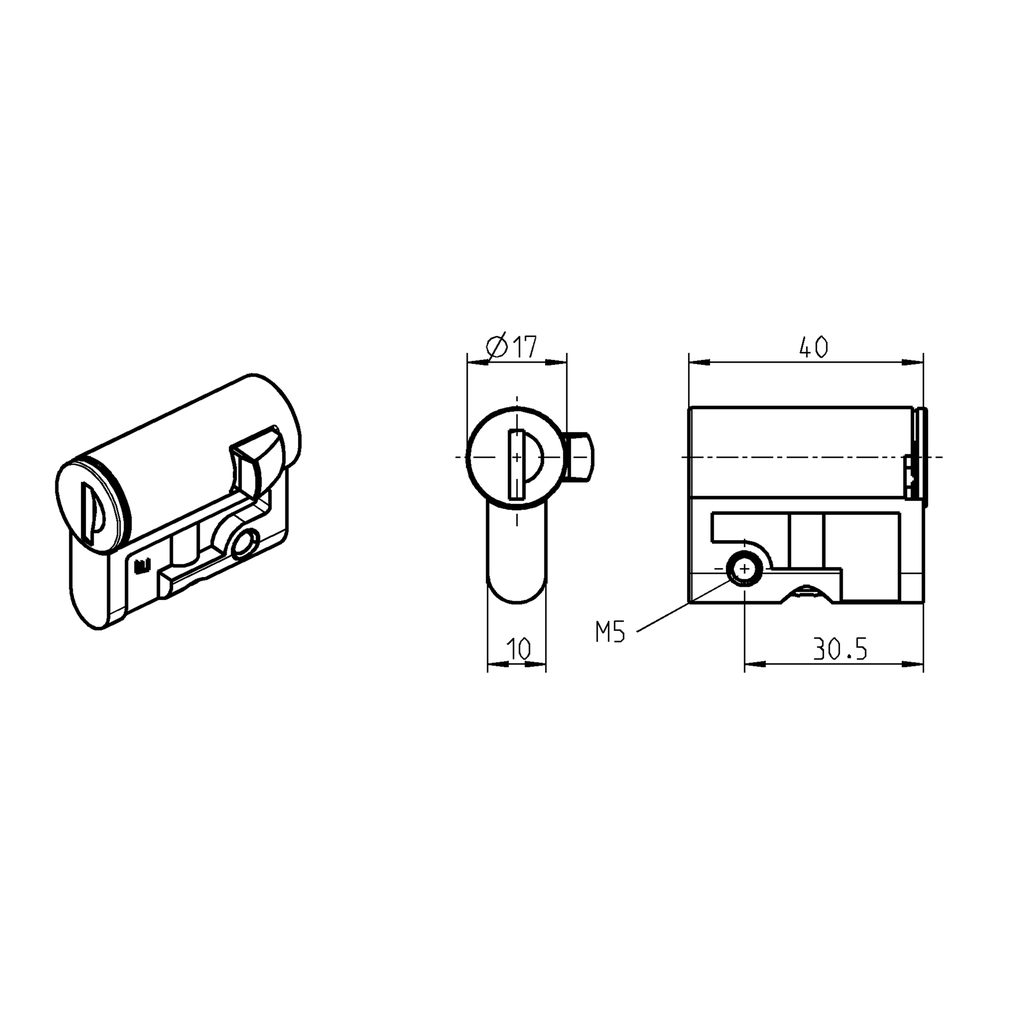

A = 30 mm

    This combination does not exist.

    Contact Us

    Function:

    Spring-loaded return of locking cam into locked position
    Internal Reference: 1109-U15-N
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Type of actuation: Daimler Benz
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
