Profile half cylinder with insert double bit 5, Zinc die chrome-plated
Profile half cylinder with insert double bit 5, Zinc die chrome-plated
Profile half cylinder with insert slot 2 x 4, Zinc die chrome-plated
Profile half cylinder with insert slot 2 x 4, Zinc die chrome-plated

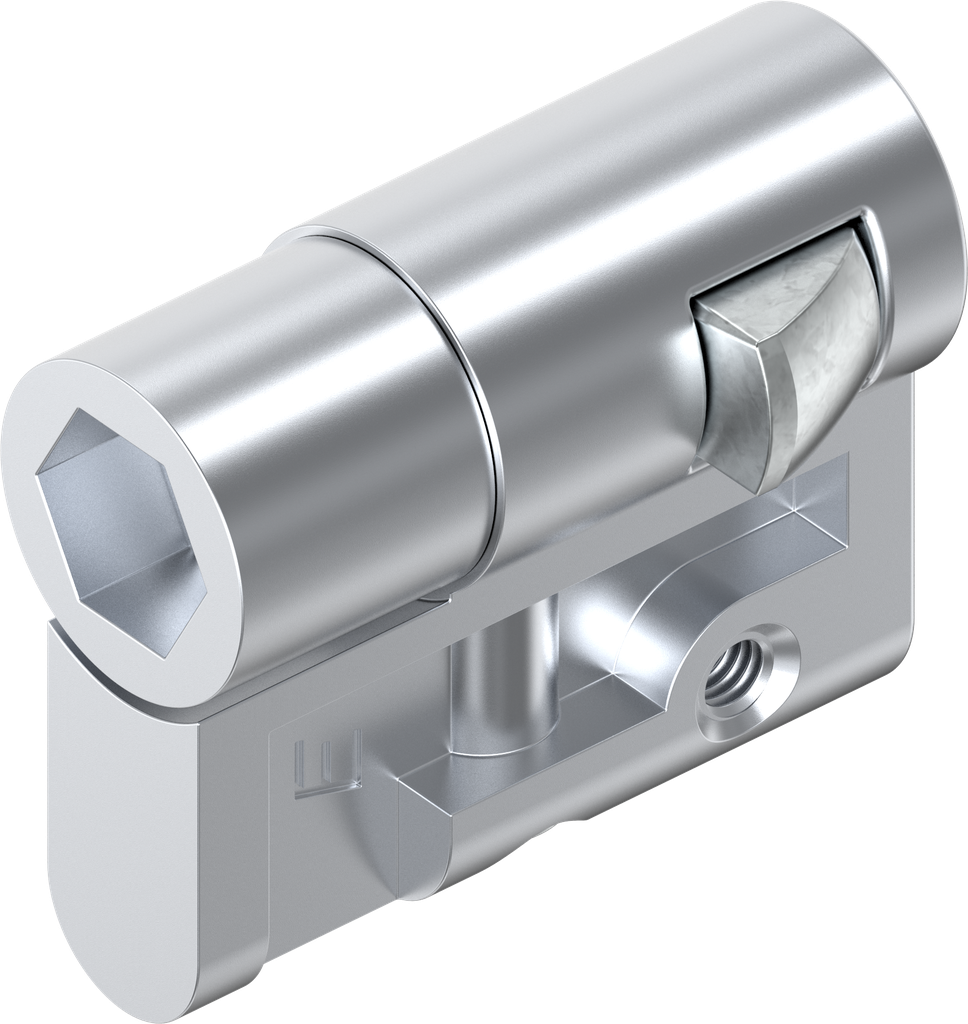

Profile half cylinder with insert hexagon female SW10, Zinc die chrome-plated; 1109-U13-N

https://www.emka.com/products/1109-u13-n https://www.emka.com/web/image/product.template/64016/image_1920?unique=8f8851d

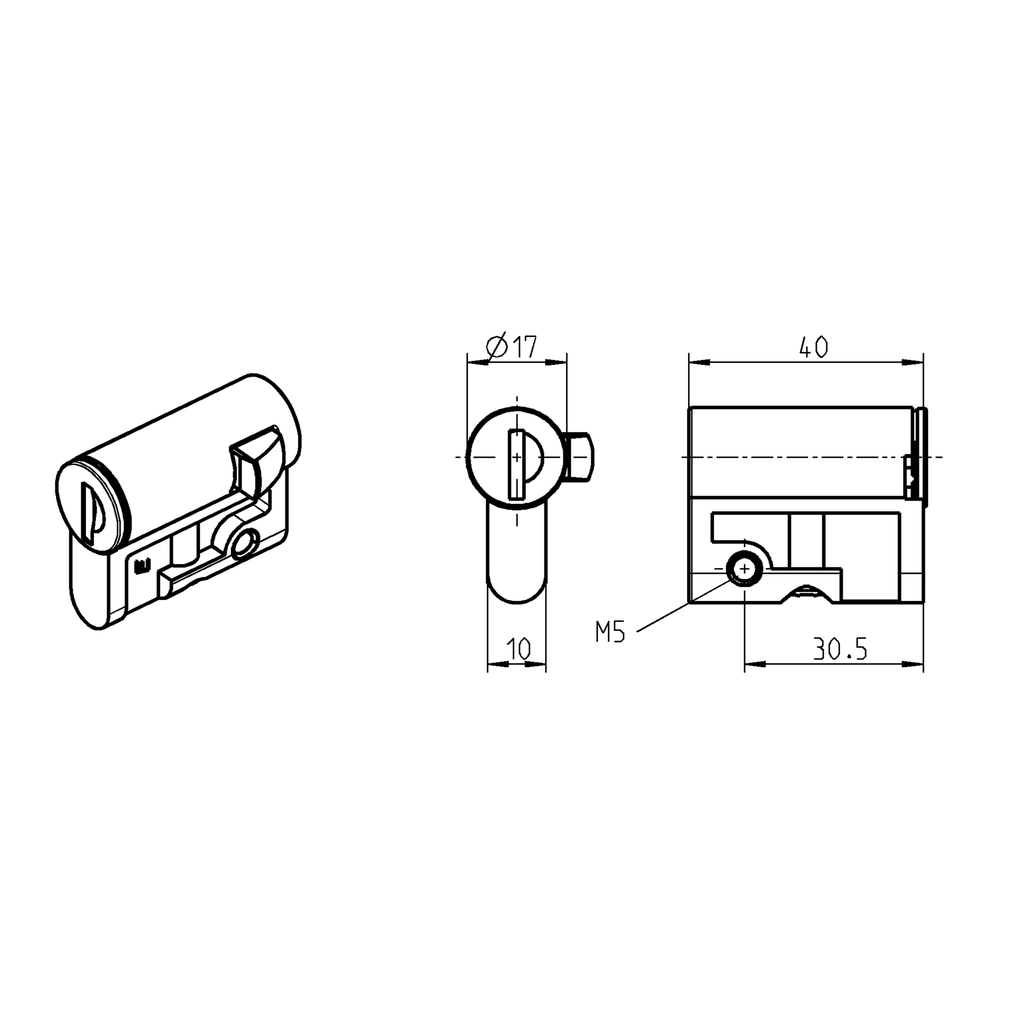

A = 30 mm

    This combination does not exist.

    Contact Us

    Function:

    Spring-loaded return of locking cam into locked position
    Internal Reference: 1109-U13-N
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Type of actuation: Hexagon female SW 10
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
    View All Products
    Swinghandle, Lifthandle
    Assembly
    Locking set
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3XB-120
    Product data sheet
    CAD file | 1109-U13-N_igs
    CAD file | 1109-U13-N_stp
