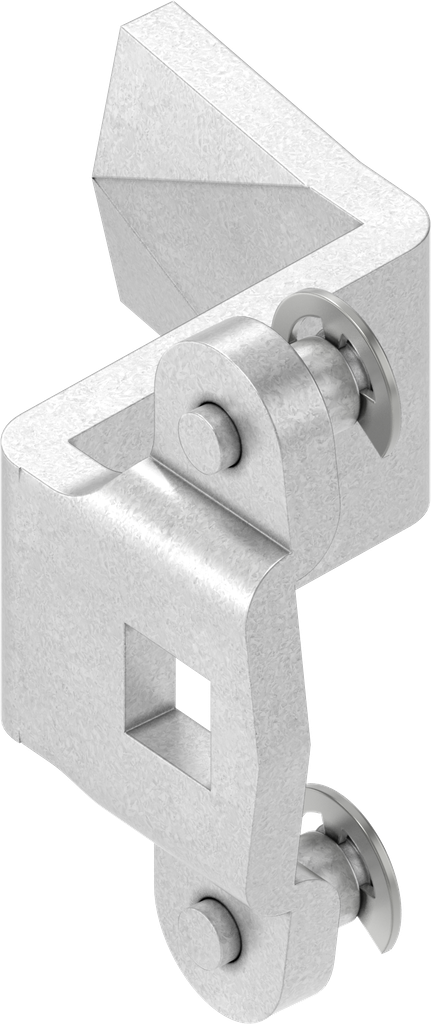

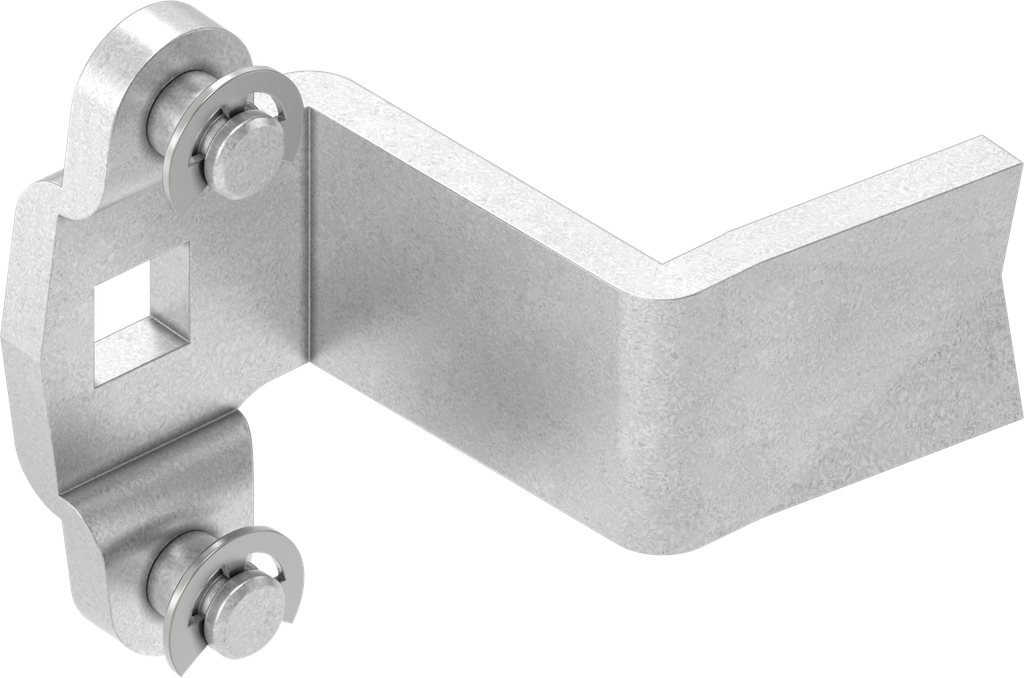

3-point cam, Steel zinc-plated
Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Product information:
The ramp increases the compression distance by 4 mm.
Internal Reference:
1107-U135
Barcode:
1107-U00135-0000000
Product Type:
Cam
Program:
1107
Catalog sheet:
3YC-120
Material of the module :
Steel
Surface of the module:
zinc-plated
Stroke of the drive:
Stroke 18 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
32 mm

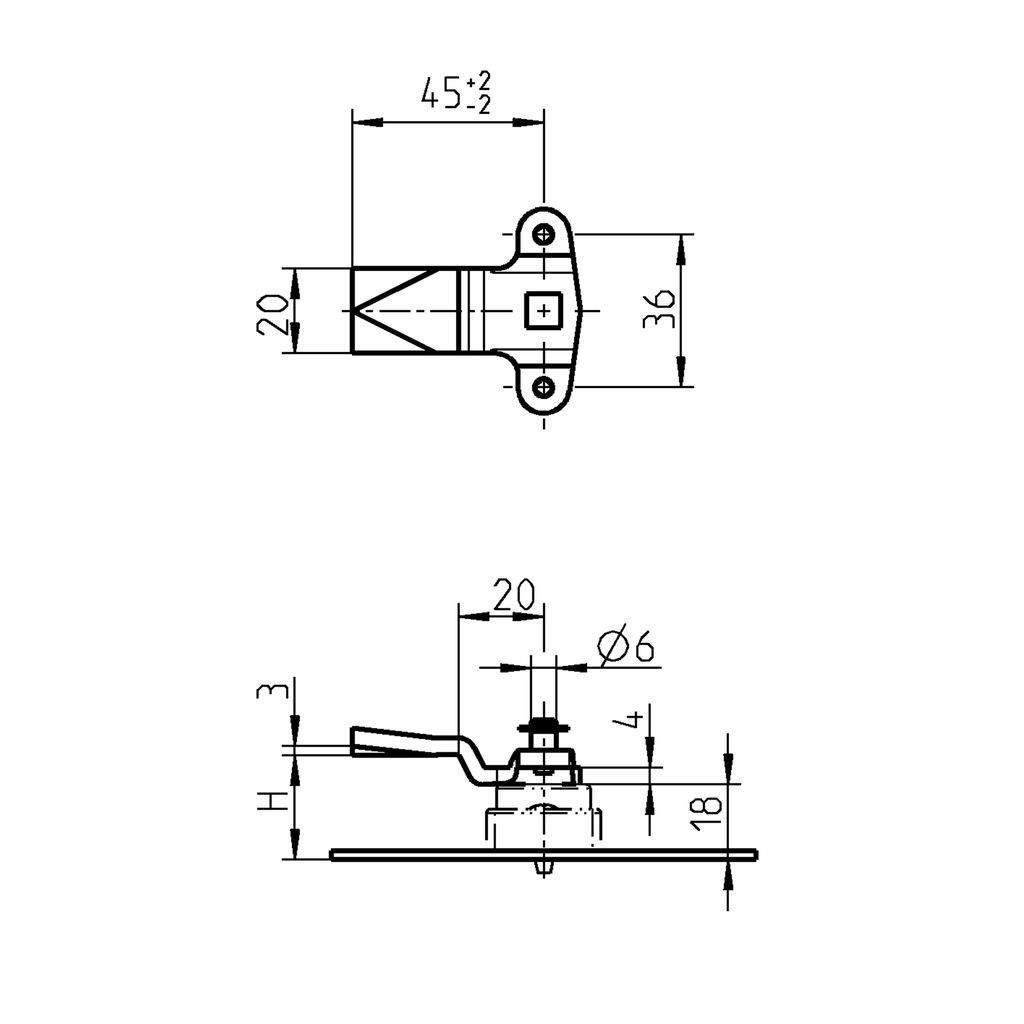

Dimension L:
45 mm
Spoon:
Yes
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
