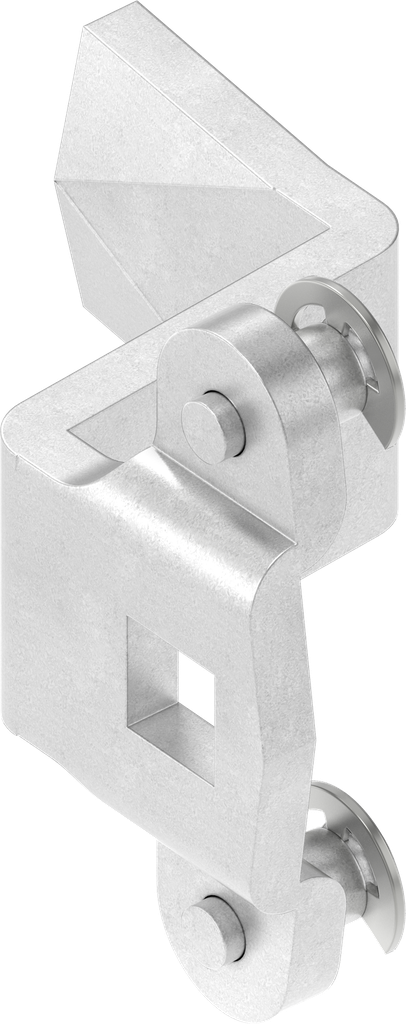

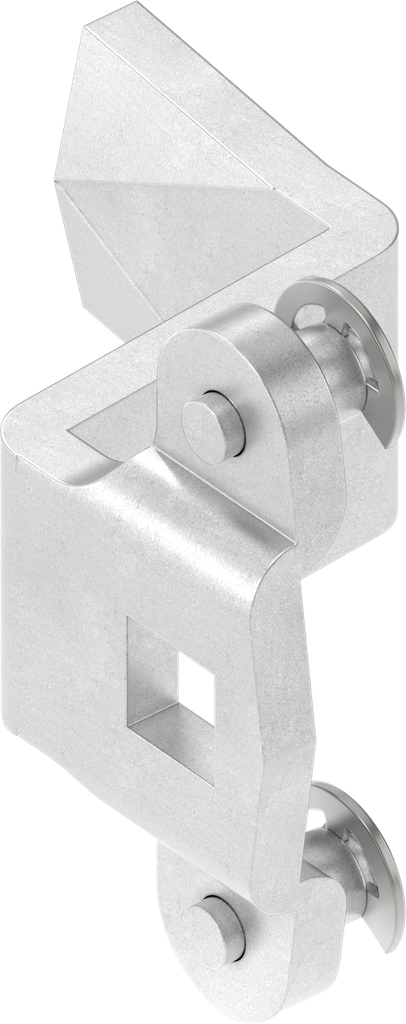

3-point cam, Steel zinc-plated; 1107-U134

https://www.emka.com/products/1107-u134 https://www.emka.com/web/image/product.template/62446/image_1920?unique=0009c4d

Offset h = 29 mm


    This combination does not exist.

    Inside the sealing


    Product information:

    The ramp increases the compression distance by 4 mm.

    Internal Reference: 1107-U134
    Product Type: Cam
    Program: 1107
    Catalog sheet: 3YC-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 29 mm
    Dimension L: 45 mm
    Spoon: Yes
    No Specifications
