3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated

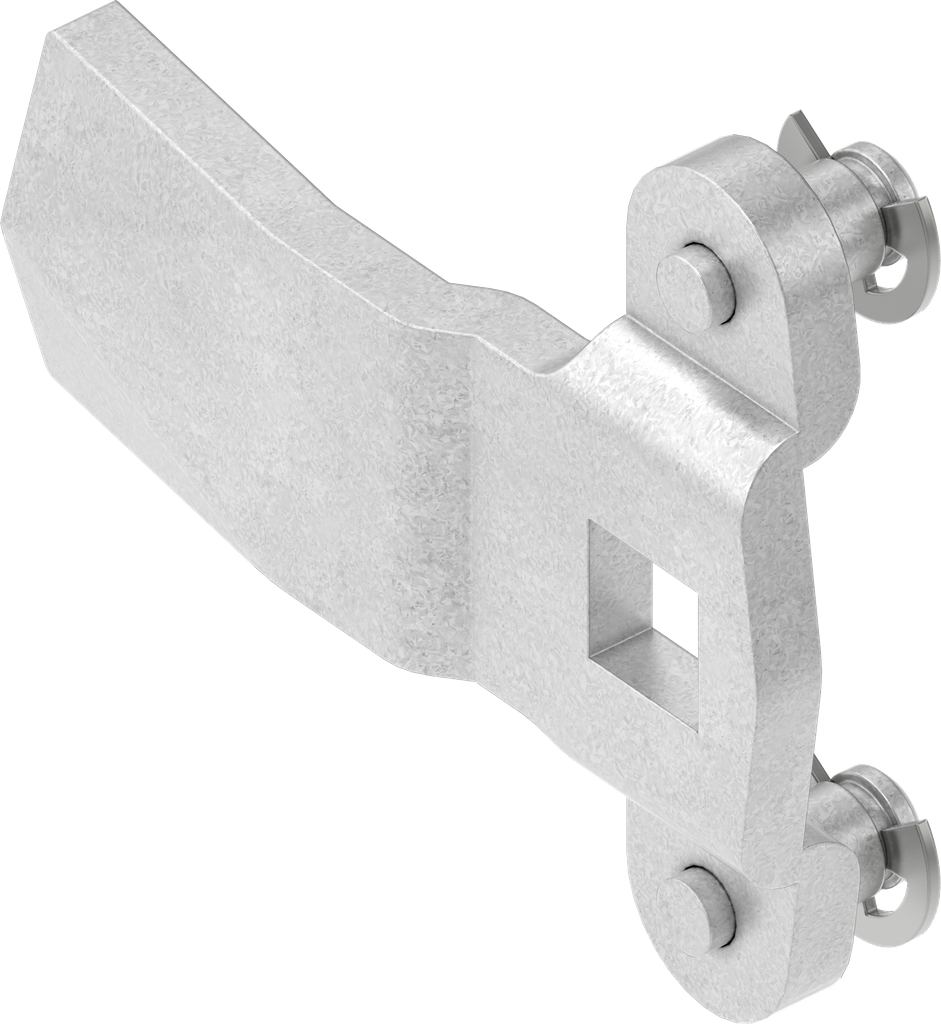

3-point cam, Steel zinc-plated; 1107-U118

https://www.emka.com/products/1107-u118-3-point-cam-steel-zinc-plated-62434 https://www.emka.com/web/image/product.template/62434/image_1920?unique=f077bc0

Offset h = -2 mm

    This combination does not exist.

    Internal Reference: 1107-U118
    Barcode: 1107-U00118-0000000
    Product Type: Cam
    Program: 1107
    Catalog sheet: 3YC-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -2 mm
    Dimension L: 45 mm
    Spoon: Yes
    No Specifications
