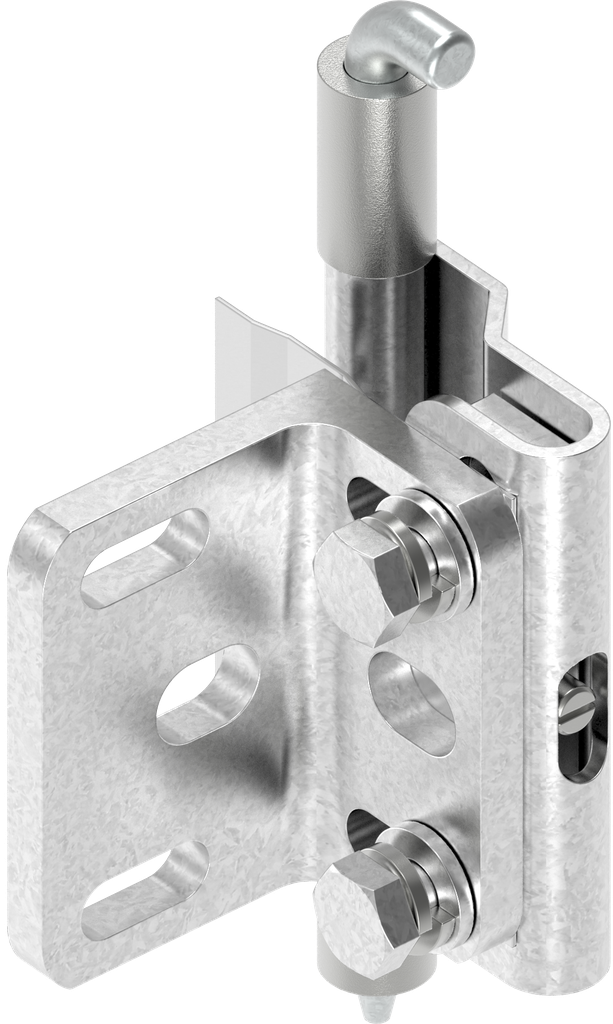

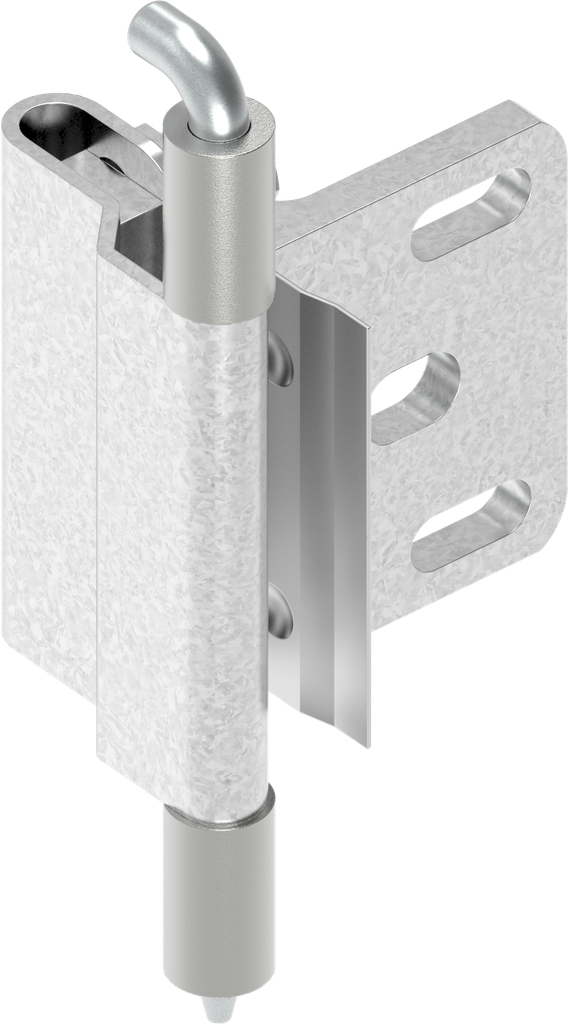

130° Spring-loaded hinge, Steel zinc-plated; 1105-U1

https://www.emka.com/products/1105-u1-130-spring-loaded-hinge-steel-zinc-plated-62338 https://www.emka.com/web/image/product.template/62338/image_1920?unique=741bebc

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1105-U1
    Barcode: 1105-U00001-0000000
    Product Type: Hinge
    Program: 1105
    Catalog sheet: 4A-280
    Material of the module : Steel
    Surface of the module: zinc-plated

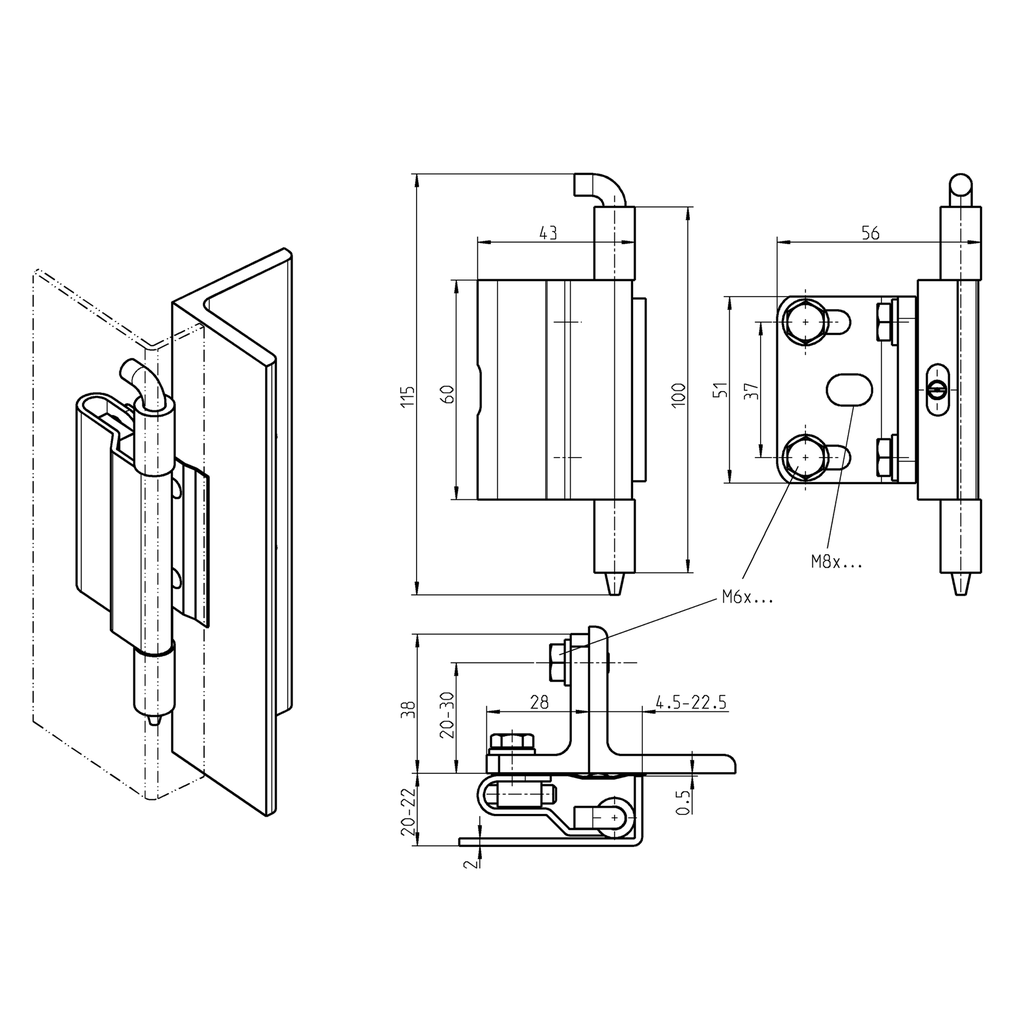

    Dimension A, Variable: 20 mm,22 mm
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside
    Max Opening Angle: 130°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
