L-handle keyed different, Zinc die chrome-plated
L-handle keyed different, Zinc die chrome-plated
3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated

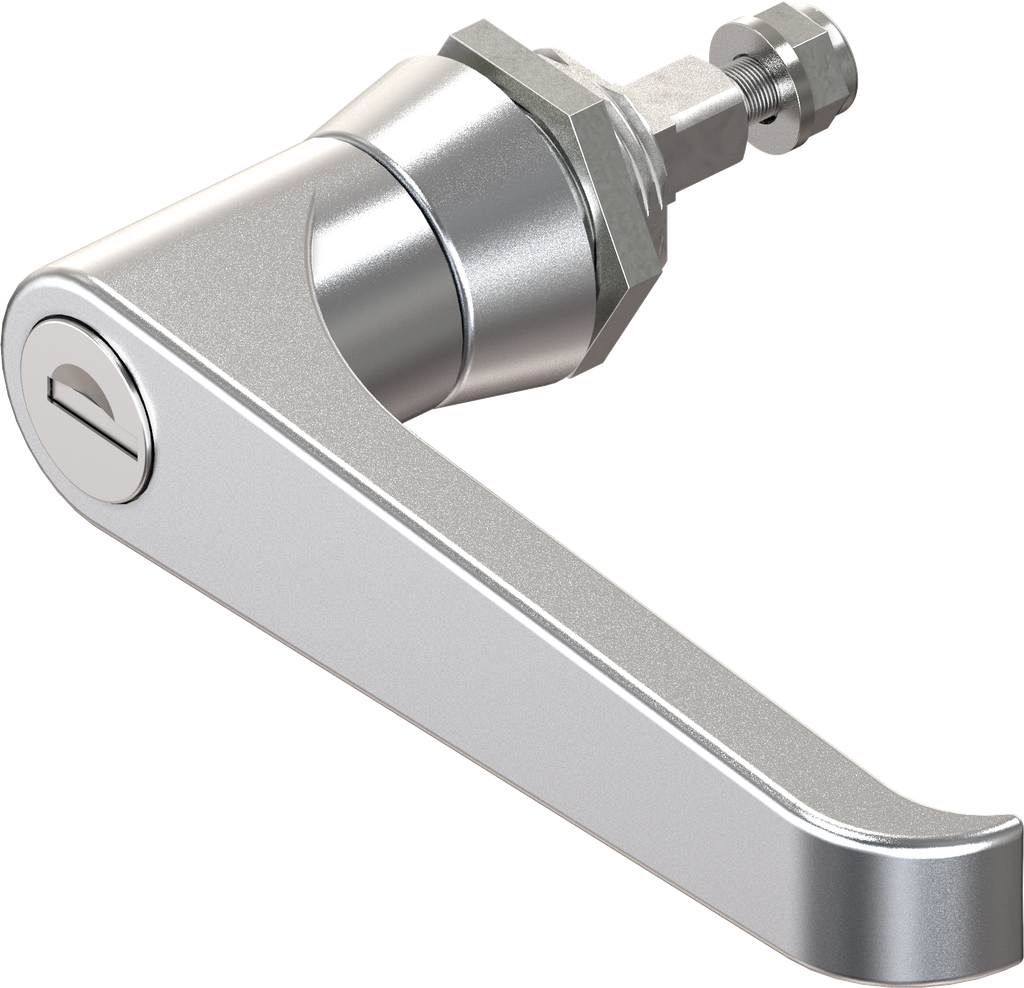

L-handle keyed different, Zinc die chrome-plated; 1103-U6

https://www.emka.com/products/1103-u6 https://www.emka.com/web/image/product.template/216151/image_1920?unique=90f5f40

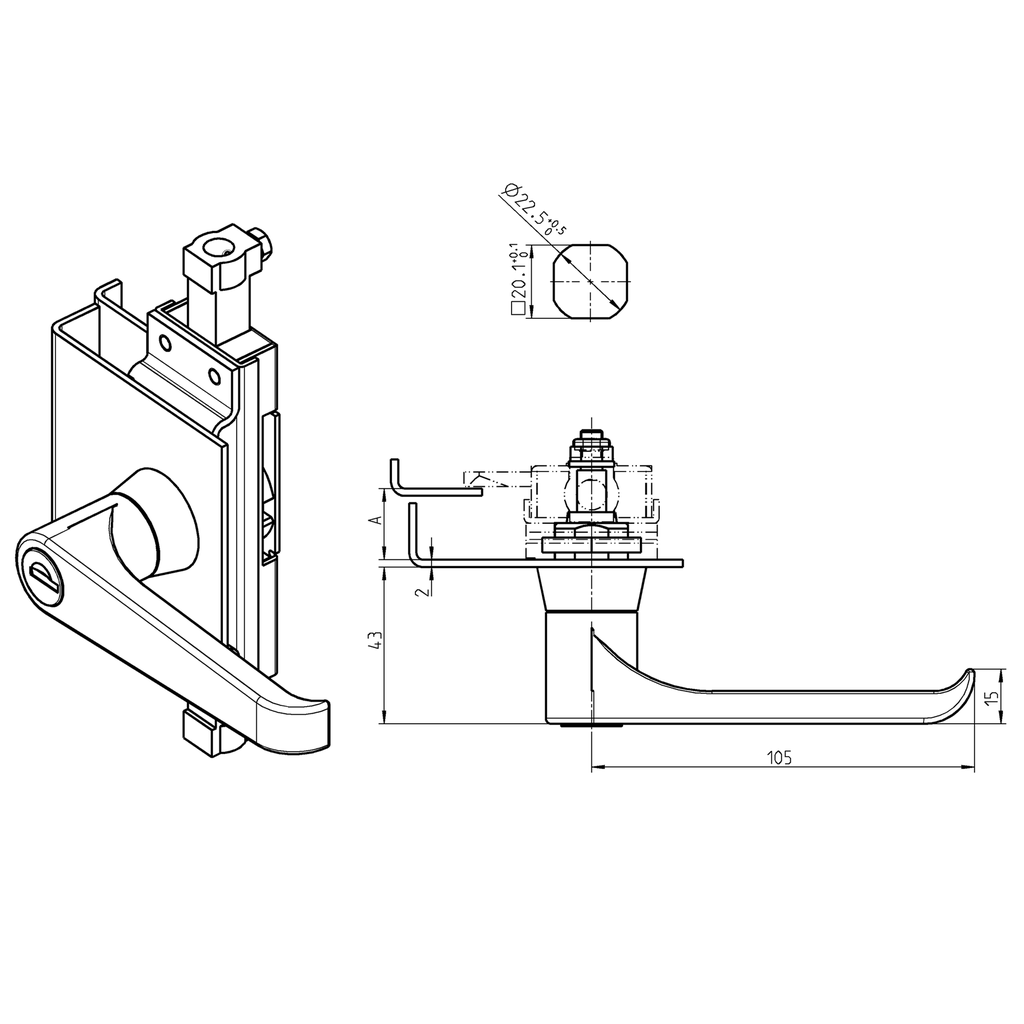

for screw-on version, A = 26 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1103-U6
    Product Type: Quarter turn
    Program: 1103
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 26
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: L-handle
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Door thickness is or up to: 2
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Rod control accessories
    Adapter
    Accessories general
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
