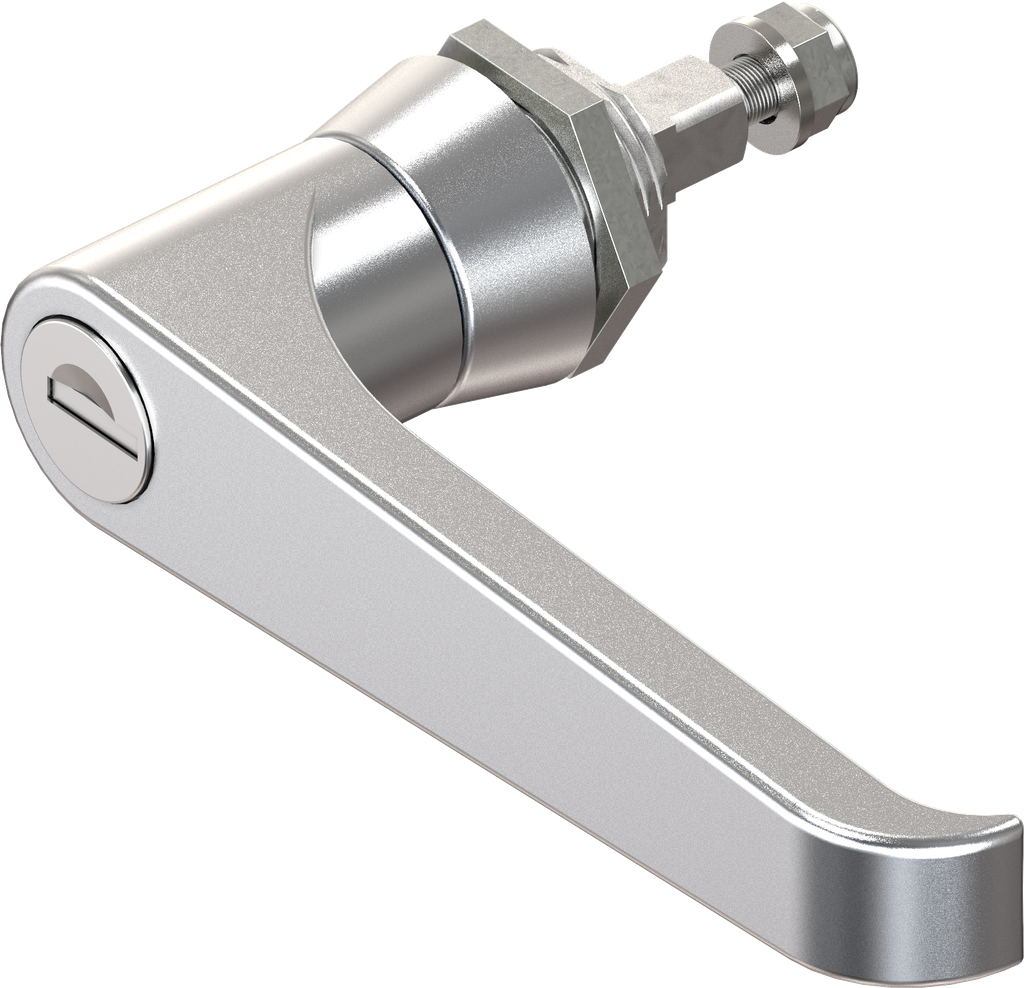

L-handle keyed EK 333, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated
Cap foamed, Polyamide GF black
Cap foamed, Polyamide GF black

L-handle keyed EK 333, Zinc die chrome-plated; 1103-U4

https://www.emka.com/products/1103-u4 https://www.emka.com/web/image/product.template/62326/image_1920?unique=99a1a15

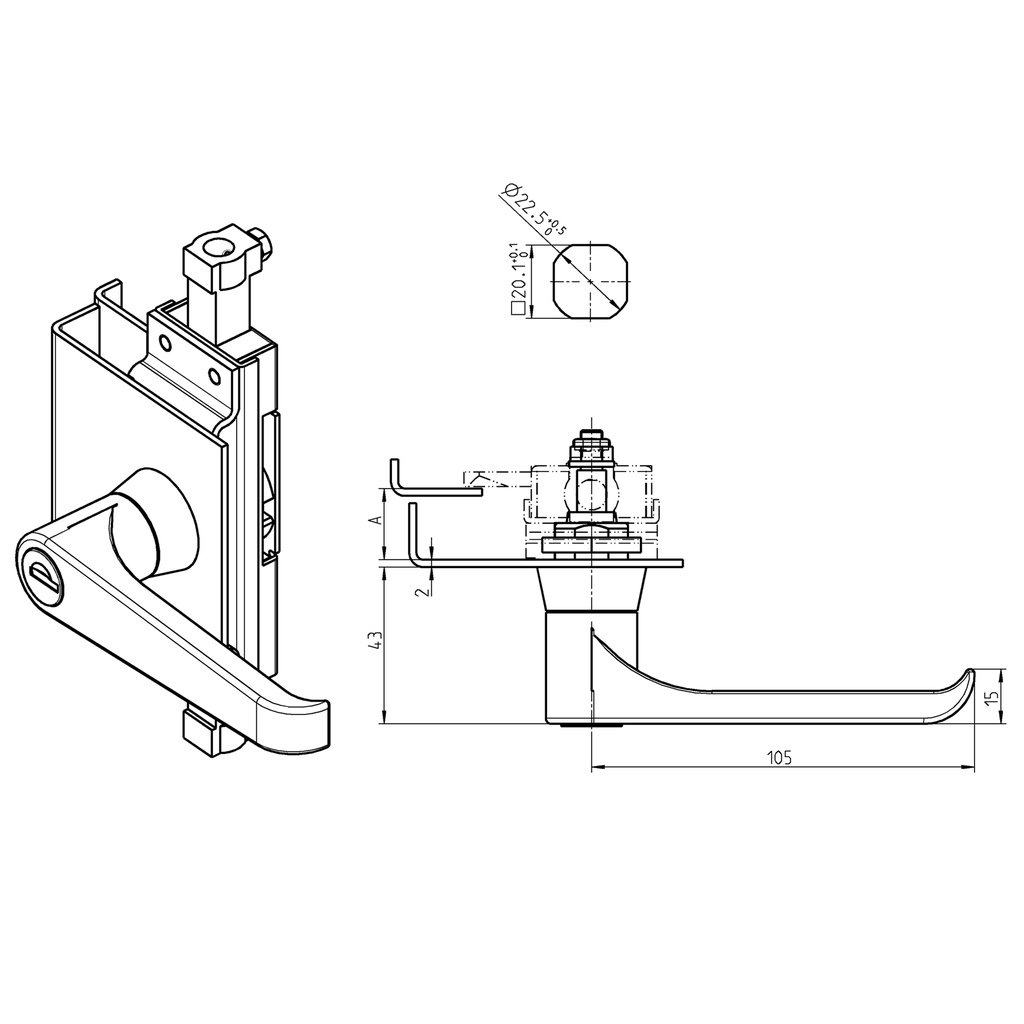

for screw-on version, A = 26 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1103-U4
    Product Type: Quarter turn
    Program: 1103
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 26
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: L-handle
    IP 65 on request: Yes
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Door thickness is or up to: 2
    Locking components: Rod control for heavy duty
    No Specifications
