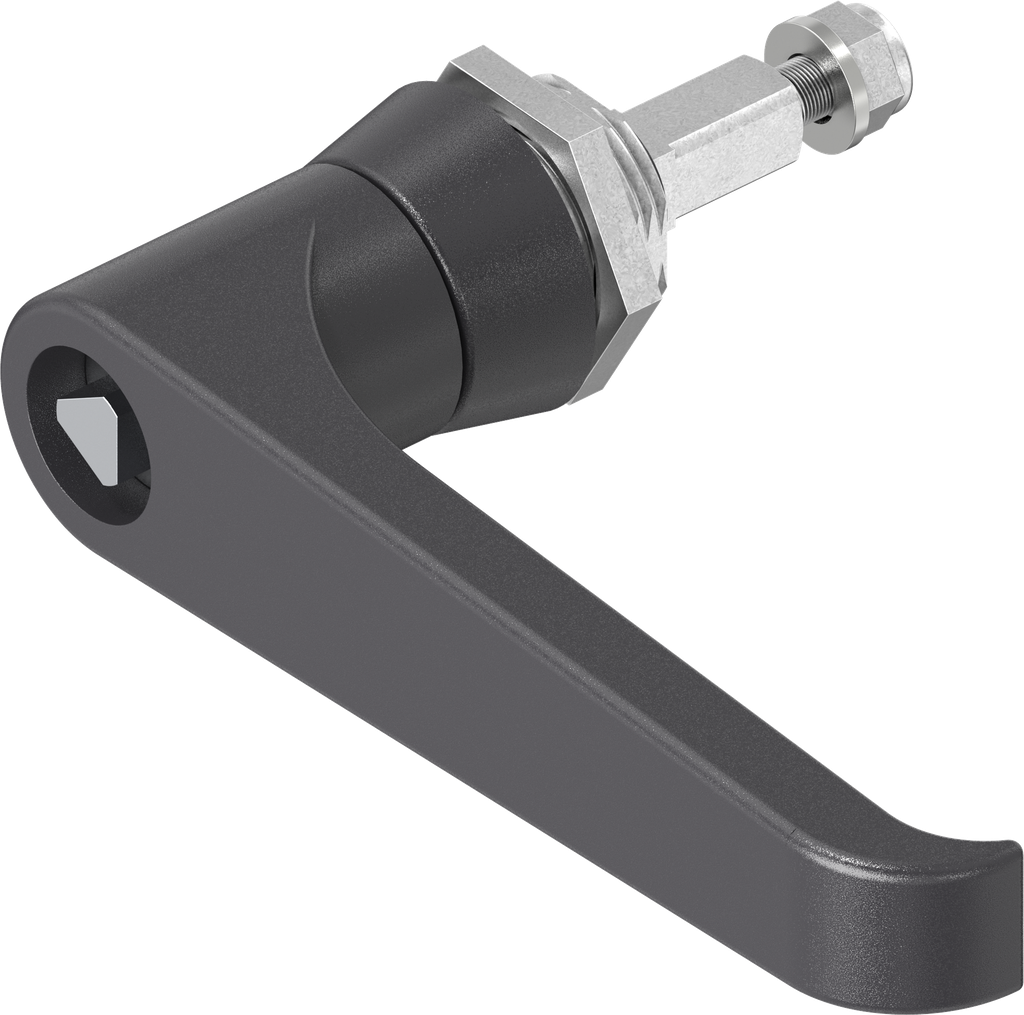

L-handle triangular 8, Zinc die black powder-coated
L-handle double bit 3, Zinc die black powder-coated
L-handle triangular 8, Zinc die black powder-coated; 1103-U34
for screw-on version, A = 26 mm
No stock item, please ask for availability
Internal Reference:
1103-U34
Barcode:
1103-U00034-0000000
Product Type:
Quarter turn
Program:
1103
Catalog sheet:
2A-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimention A:
A 26
Fixing type of housing :
nut fixing
Type of actuation:
Triangular 8
Housing Head Shape:
Round
Handle Art:
L-handle
IP 65 on request:
Yes
Locking set:
Insert
Door Version :
Left,Right
Door thickness is or up to:
2
Locking components:
Rod control for heavy duty
Quarter turn types:
Quarter turn with handle
No Specifications
View All Products

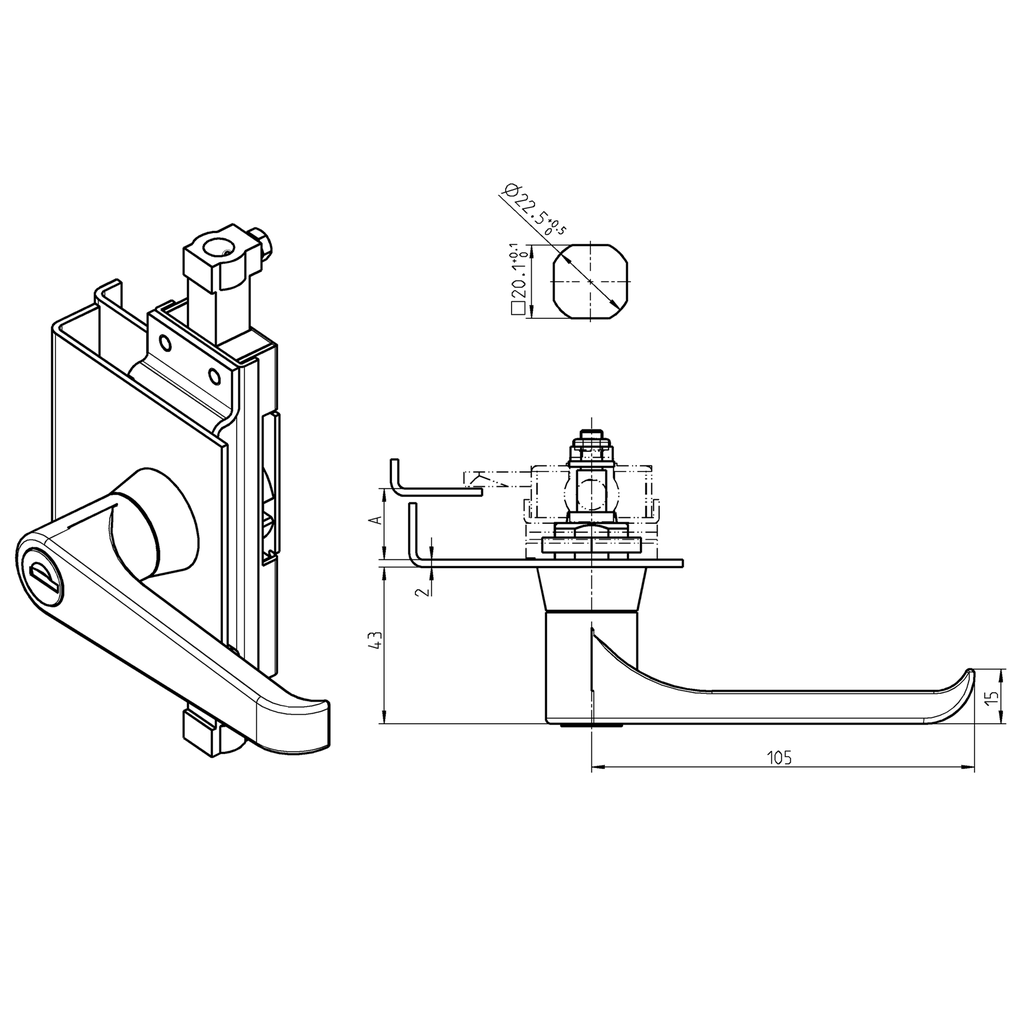

Here you can find the product data sheets and CAD files of this product
