L-handle non-keyed, Zinc die chrome-plated
L-handle non-keyed, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated

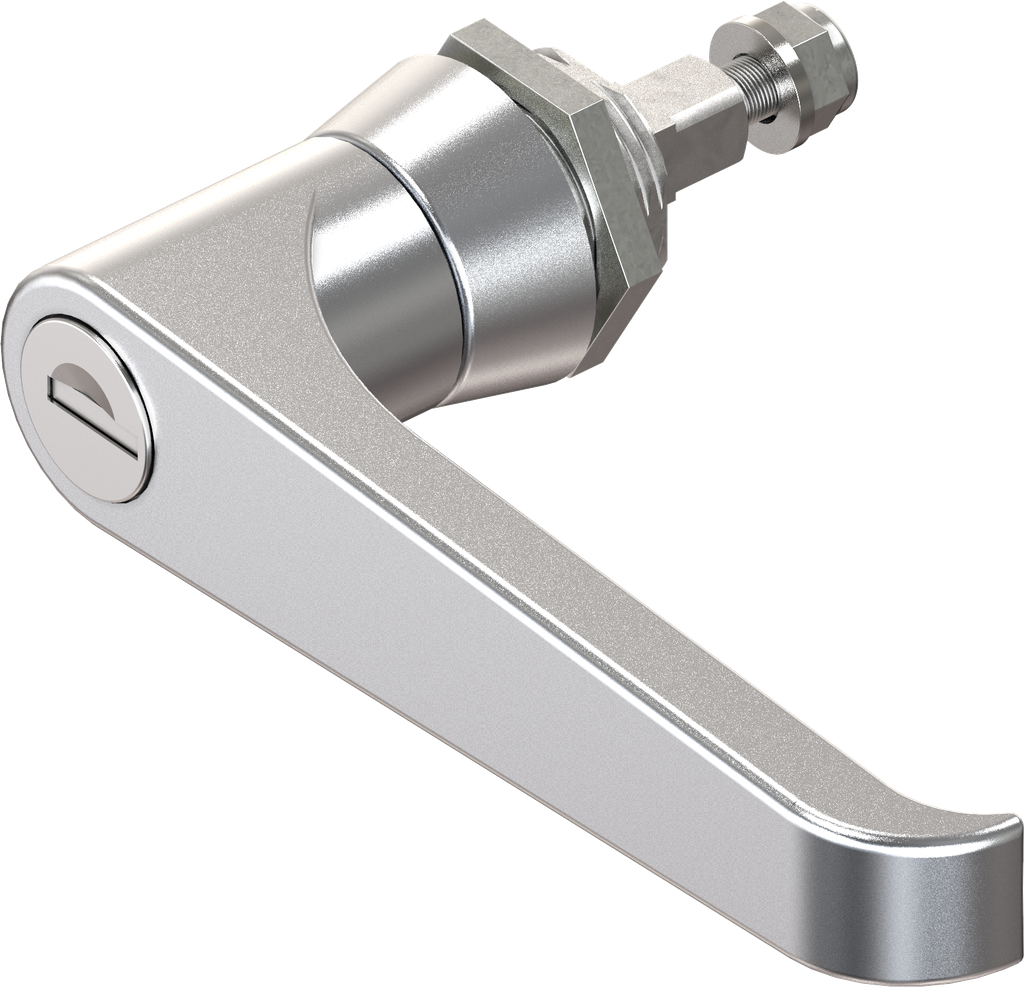

L-handle keyed EK 333, Zinc die chrome-plated; 1103-U3

https://www.emka.com/products/1103-u3 https://www.emka.com/web/image/product.template/62325/image_1920?unique=f86255a

for screw-on version, A = 20 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1103-U3
    Product Type: Quarter turn
    Program: 1103
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: L-handle
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Door thickness is or up to: 2
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Rod control accessories
    Rod control
    Keys

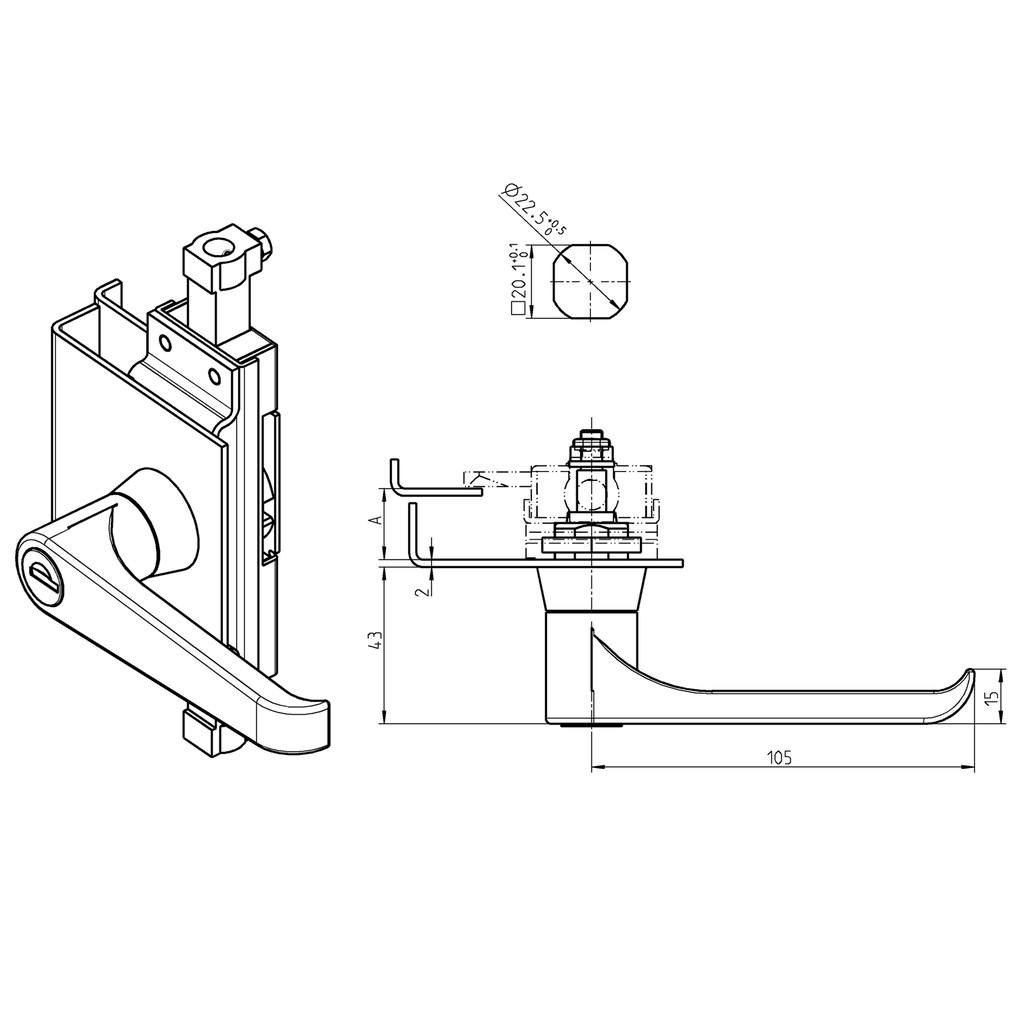

    Here you can find the product data sheets and CAD files of this product
