T-handle, non-keyed, Zinc die chrome-plated
T-handle, non-keyed, Zinc die chrome-plated
L-handle non-keyed, Zinc die chrome-plated
L-handle non-keyed, Zinc die chrome-plated

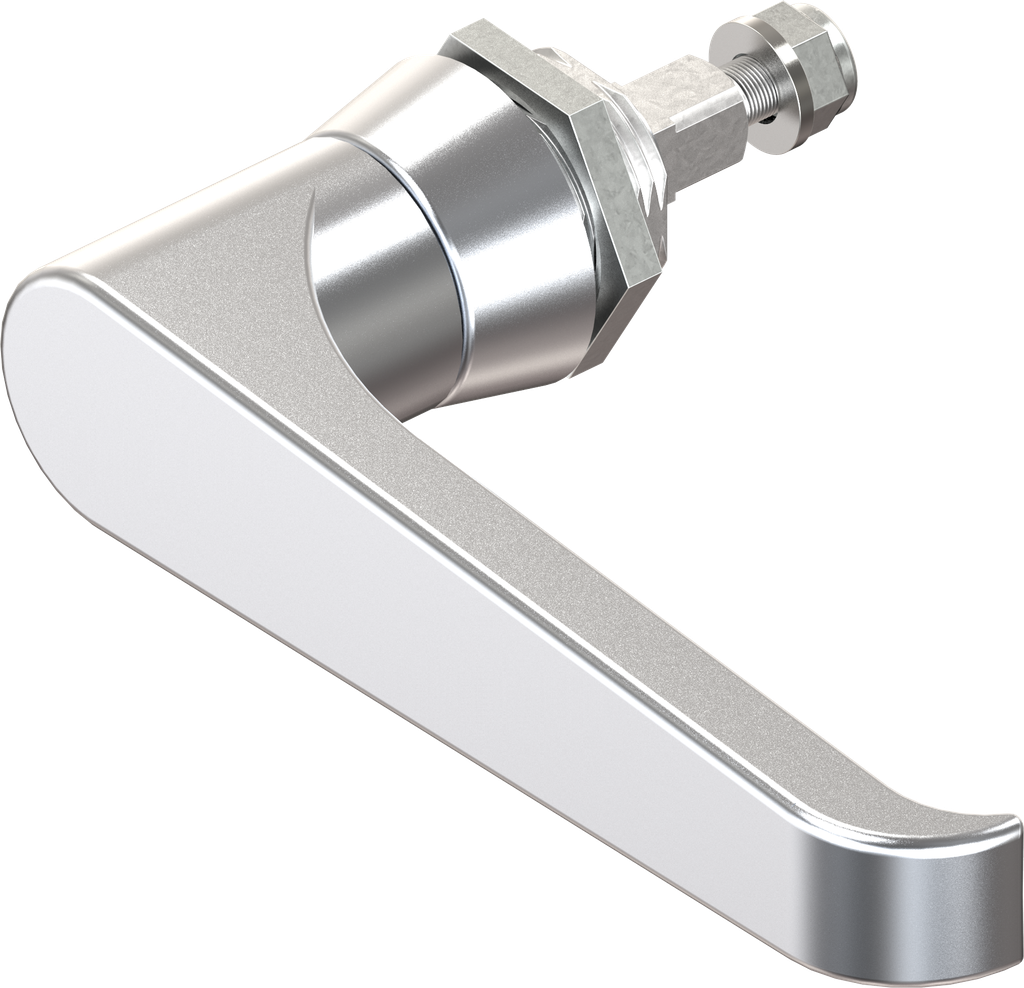

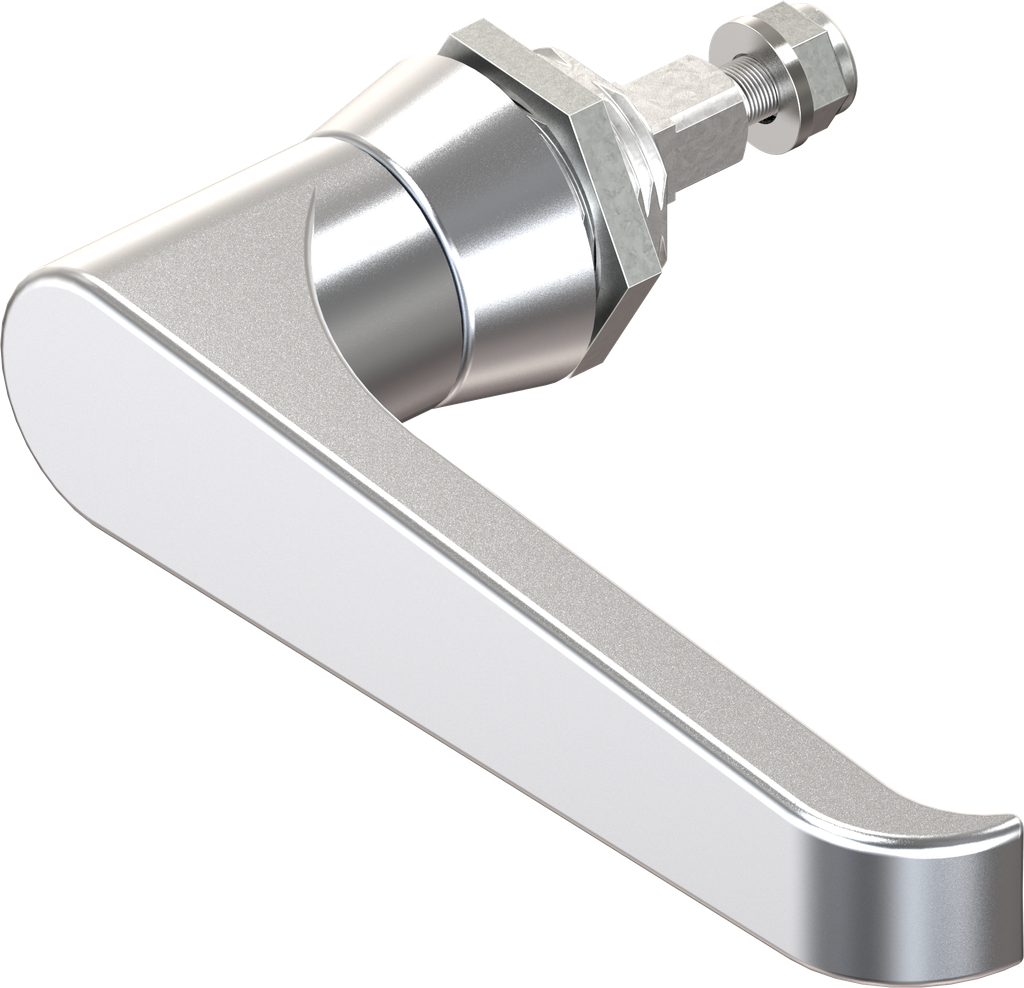

L-handle non-keyed, Zinc die chrome-plated; 1103-U1

https://www.emka.com/products/1103-u1 https://www.emka.com/web/image/product.template/62323/image_1920?unique=f1e3a5a

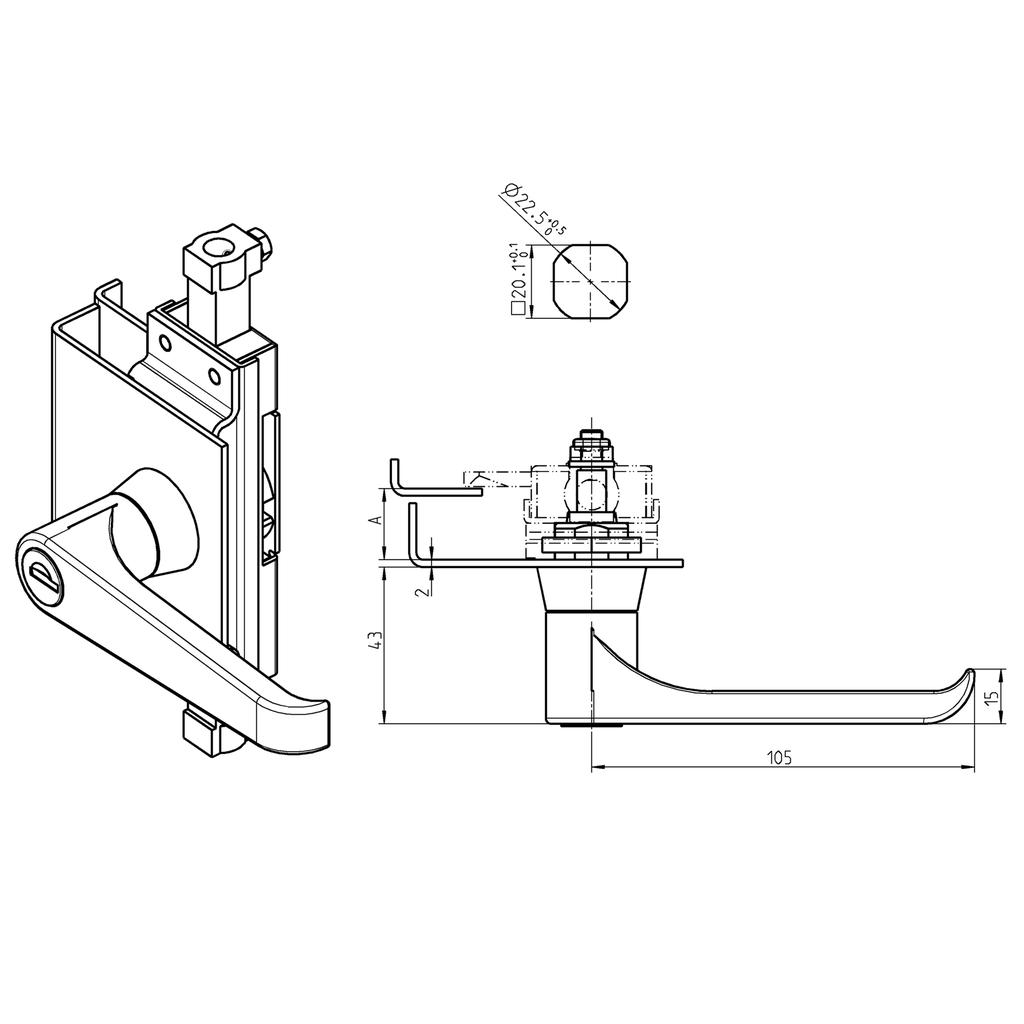

for screw-on version, A = 20 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1103-U1
    Product Type: Quarter turn
    Program: 1103
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: L-handle
    Locking set: No locking set, blind
    Door Version : Left,Right
    Door thickness is or up to: 2
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Rod control accessories
    Rod control
    Here you can find the product data sheets and CAD files of this product
