Sealing profile made of fire protection material, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black

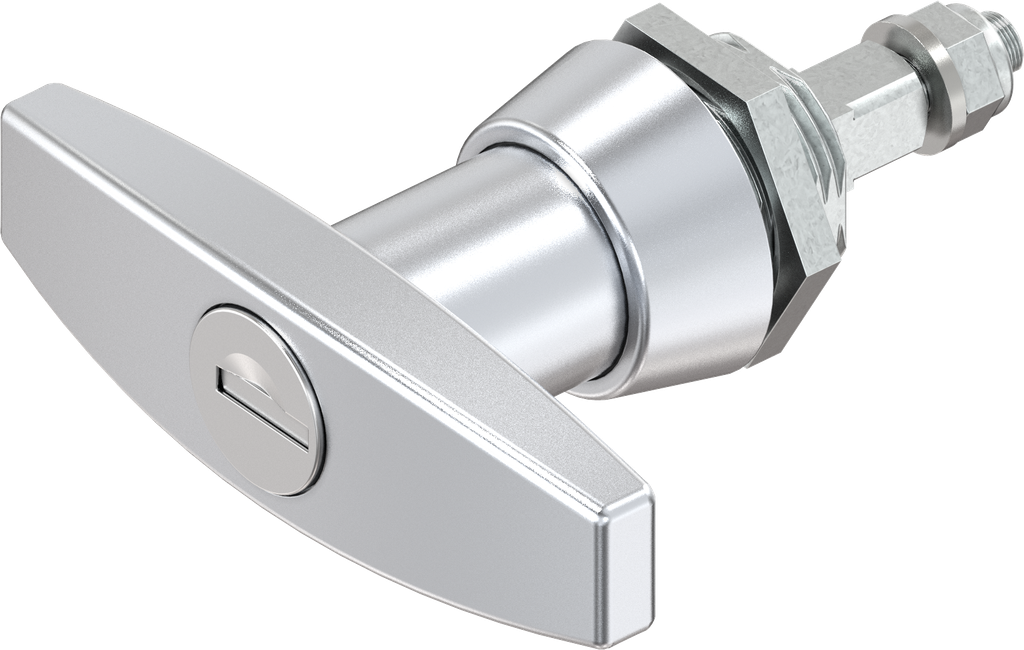

T-handle, keyed EK 333, Zinc die chrome-plated
T-handle, keyed EK 333, Zinc die chrome-plated

T-handle, keyed EK 333, Zinc die chrome-plated; 1102-U3

https://www.emka.com/products/1102-u3 https://www.emka.com/web/image/product.template/216104/image_1920?unique=ce38eda

for screw-on version, A = 20 mm

    This combination does not exist.

    Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1102-U3
    Product Type: Quarter turn
    Program: 1102
    Catalog sheet: 2A-140
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Fixing type of housing : nut fixing
    Housing Head Shape: Round
    Handle Art: T-handle
    Suitable for door thicknesses up to: 2 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Quarter turn accessories
    Rod control accessories
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
