Round rod L = 1100 mm, Steel zinc-plated
Round rod L = 1100 mm, Steel zinc-plated
Sealing profile made of fire protection material, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black

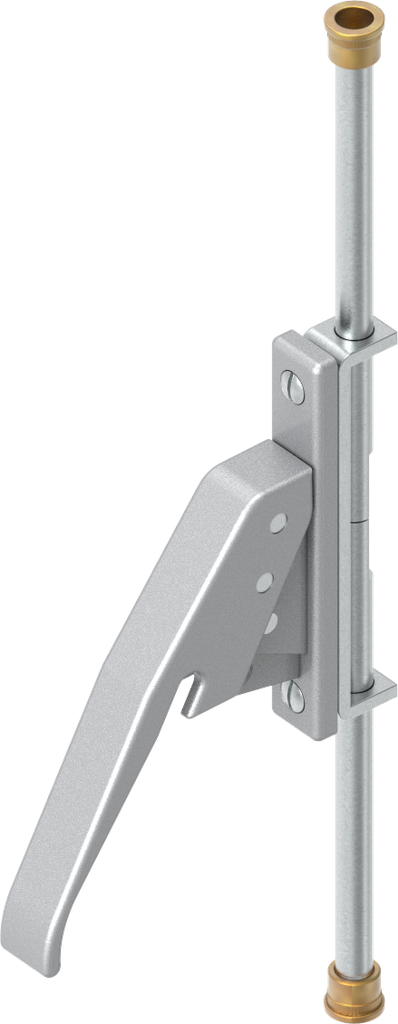

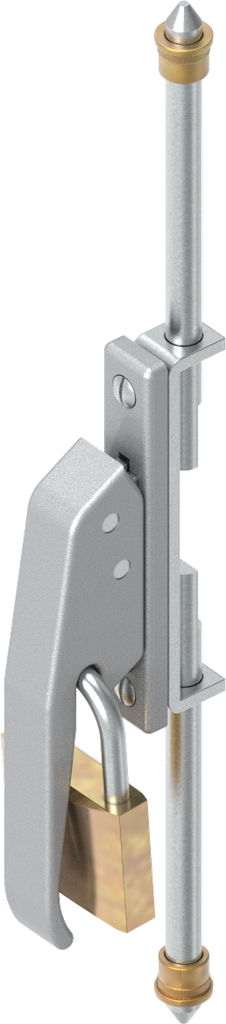

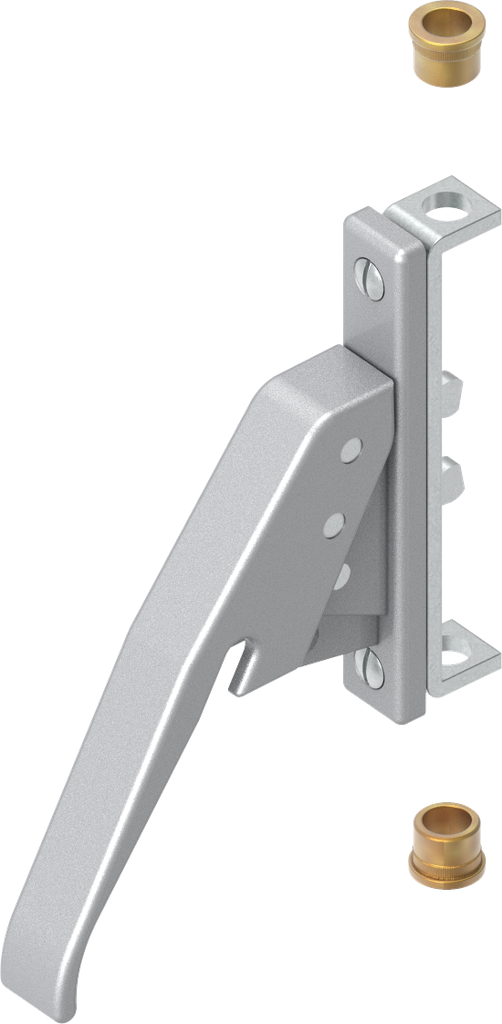

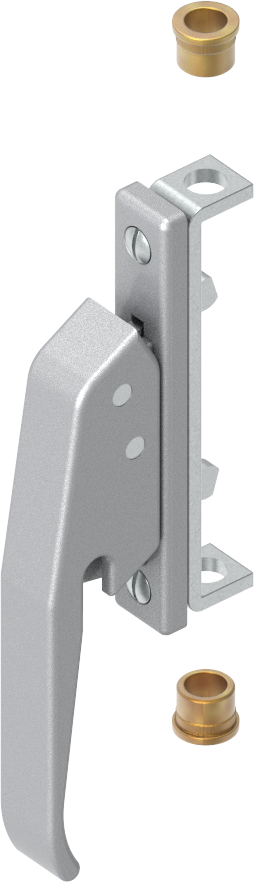

Lever for padlock, Zinc die white aluminium powder-coated; 1099-U6

https://www.emka.com/products/1099-u6 https://www.emka.com/web/image/product.template/215983/image_1920?unique=409fefd

for lever locking system

    This combination does not exist.

    Inside the sealing
    Contact Us

    Product information:

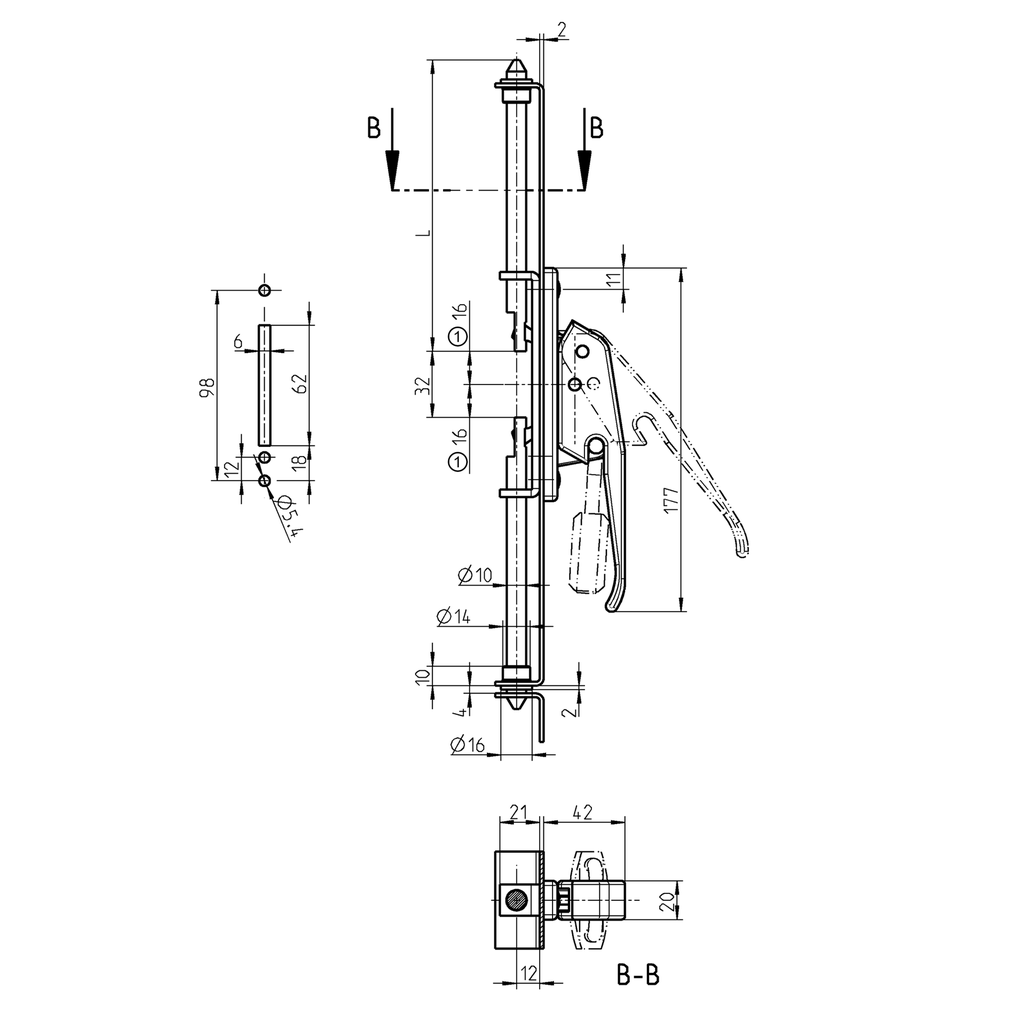

    1 = Stroke
    Internal Reference: 1099-U6
    Product Type: Lever locking system
    Program: 1099
    Catalog sheet: 2B-230
    Material of the module : Zinc die
    Surface of the module: white aluminium powder-coated
    Number of Possible Locking Points: 2 points
    Mounting Positions : Inside the sealing
    For padlock: Yes
    Padlock Art: Padlock with shackle dimension Ø 7.5
    No Specifications
    View All Products
    Rod
    Here you can find the product data sheets and CAD files of this product
