Ring handle quarter turn, Stainless steel AISI 316Ti
Lever, Polyamide GF black
Product information:

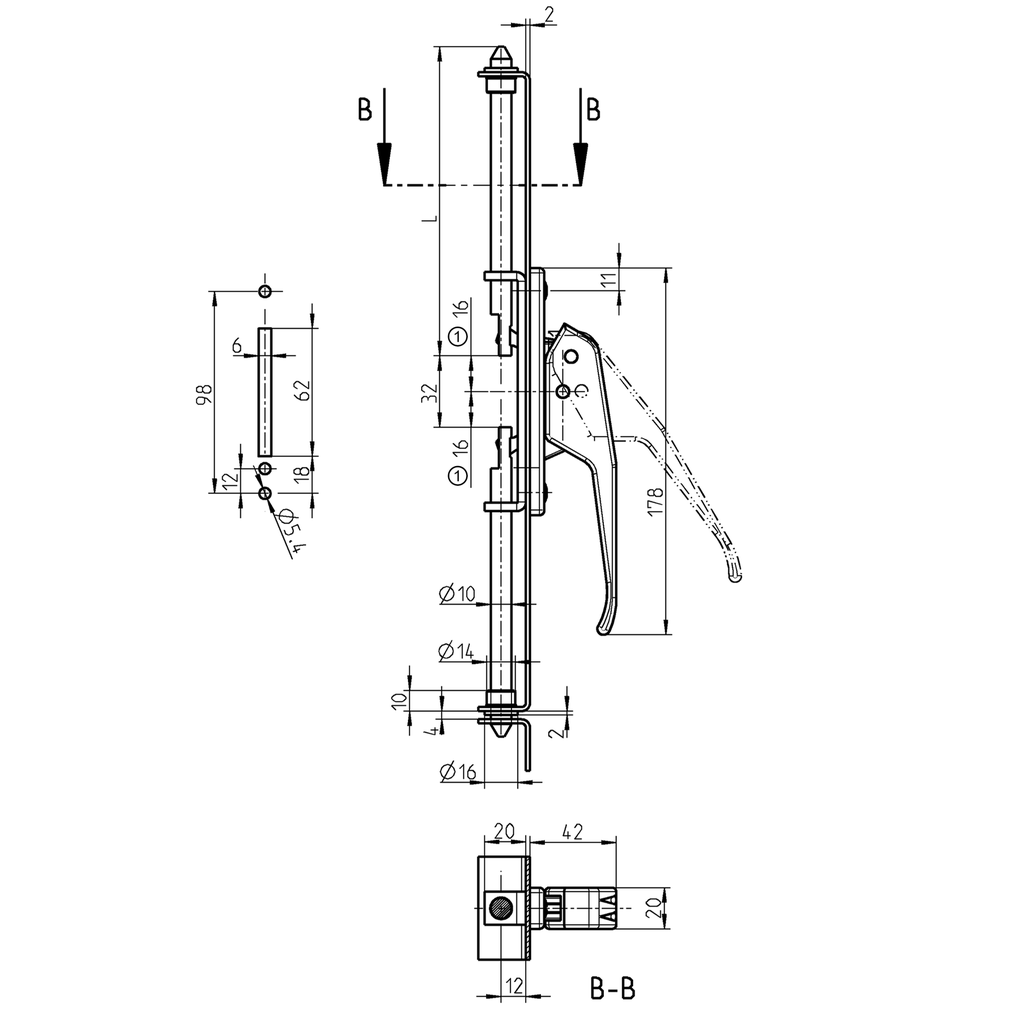

1 = Stroke
Internal Reference:
1099-U1
Product Type:
Lever locking system
Program:
1099
Catalog sheet:
2B-230
Material of the module :
Zinc die
Surface of the module:
white aluminium powder-coated
Number of Possible Locking Points:
2 points
Mounting Positions :
Inside the sealing
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
