Telescopic cover stay with push button to release, Steel zinc-plated
Telescopic cover stay with push button to release, Steel zinc-plated
Telescopic cover stay with push button to release, Steel zinc-plated
Telescopic cover stay with push button to release, Steel zinc-plated

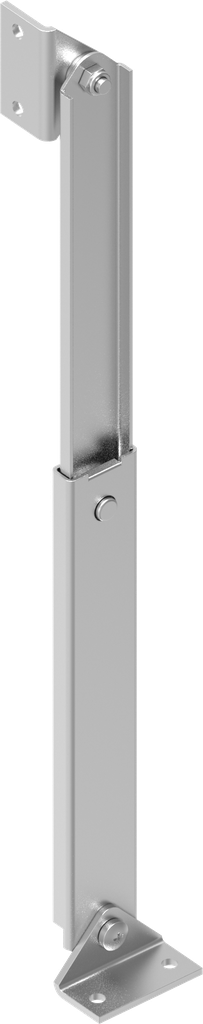

Telescopic cover stay with push button to release, Stainless steel AISI 304; 1097-U5-PC

https://www.emka.com/products/1097-u5-pc https://www.emka.com/web/image/product.template/62305/image_1920?unique=ca256d1

    This combination does not exist.

    Contact Us
    Internal Reference: 1097-U5-PC
    Product Type: Cover stay
    Program: 1097
    Catalog sheet: 8C-140
    Material of the module : Stainless steel AISI 304
    2D-Nut: Thread M6
    Lid Supports / Flap Stays: Telescopic cover stay with push button
    No Specifications
    View All Products
    Hinge
    2D nut

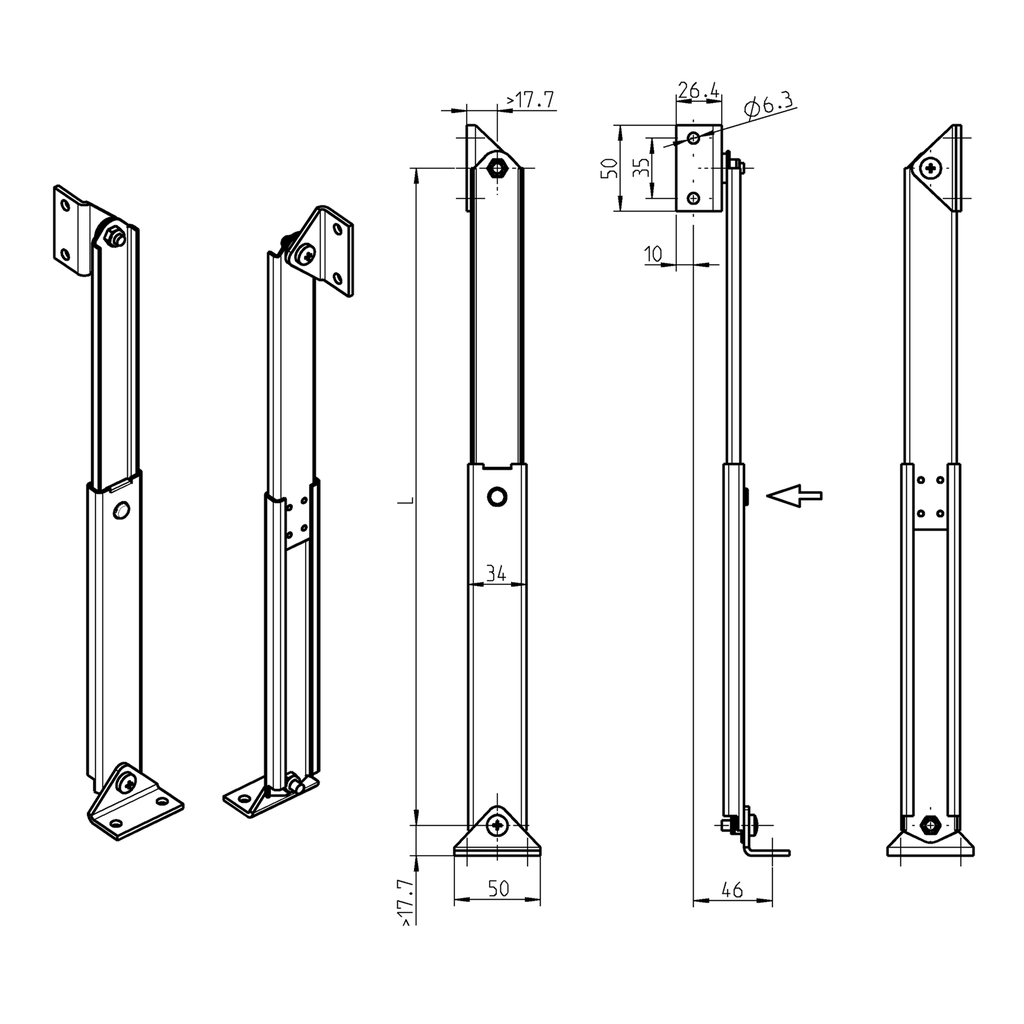

    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 8C-140
    Product data sheet
    CAD file | 1097-U5-PC_igs
    CAD file | 1097-U5-PC_stp
