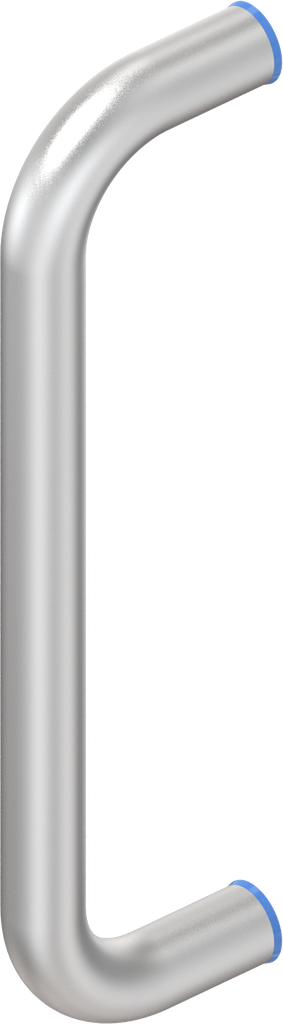

Bow-type handle for hygienic areas, Stainless steel AISI 316L; 1095-U39-200PK

https://www.emka.com/products/1095-u39-200pk https://www.emka.com/web/image/product.template/215479/image_1920?unique=c7beaff

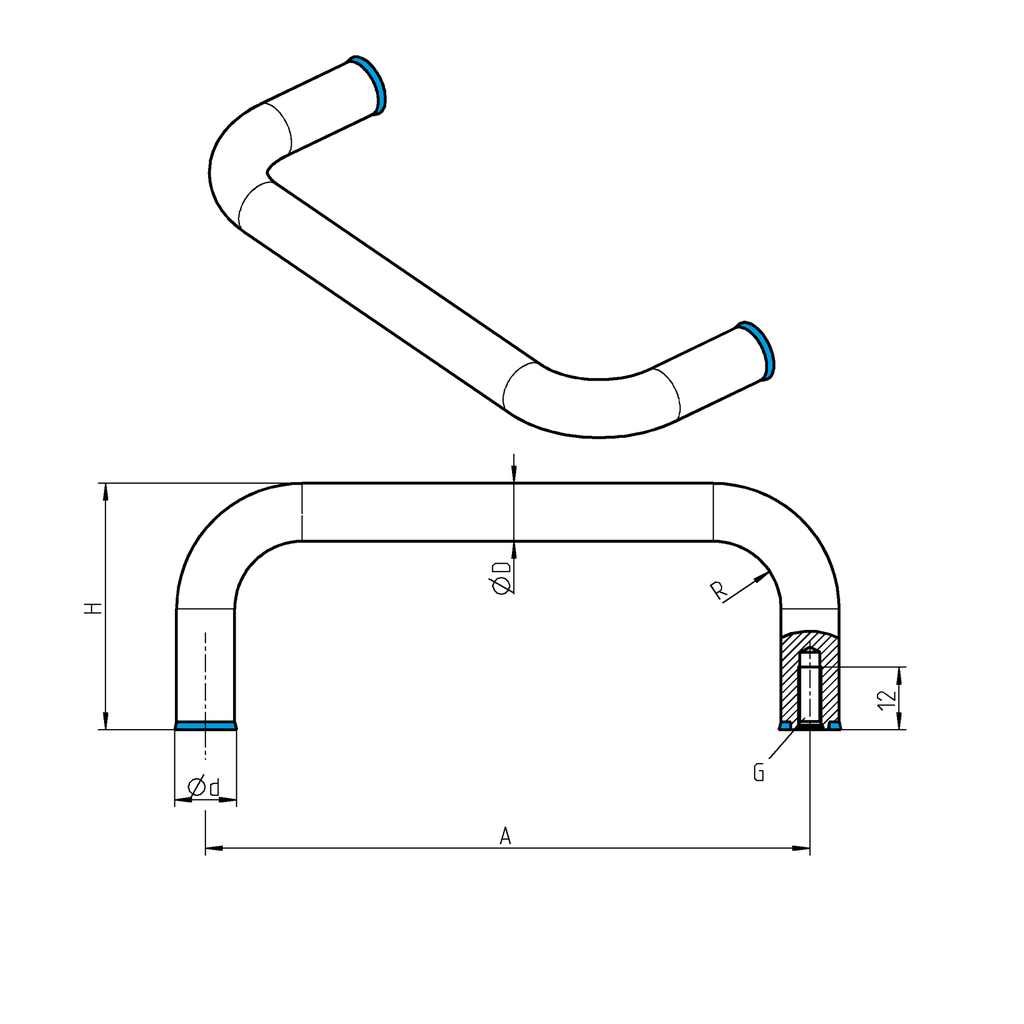

A = 200 mm

    This combination does not exist.

    Contact Us

    Product Benefits:

    Stainless steel bow-type handle for hygienic areas with flat seal flush on the outside
    Internal Reference: 1095-U39-200PK
    Product Type: Handle
    Program: 1095
    Catalog sheet: 6A-200
    Material of the module : Stainless steel AISI 316L
    Dimension A: 200 mm
    Fixing type of handle: screw-on from inside
    Dimension d: 16.80 mm
    Dimension D: 16 mm
    G = thread specification: M6
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 59 mm
    Dimension R: 18 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-200
    CAD file | 1095-U39-200PK_igs
    CAD file | 1095-U39-200PK_stp
