Bow-type handle, Steel black plastic-coated
Bow-type handle, Steel black plastic-coated
Machine handle, Aluminium black
Machine handle, Aluminium black

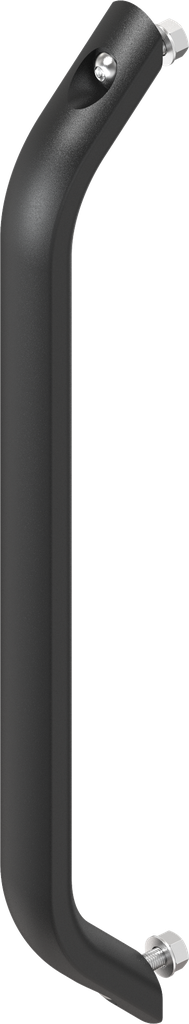

Machine handle, Aluminium black; 1095-U36-500AA

https://www.emka.com/products/1095-u36-500aa https://www.emka.com/web/image/product.template/215474/image_1920?unique=f86255a

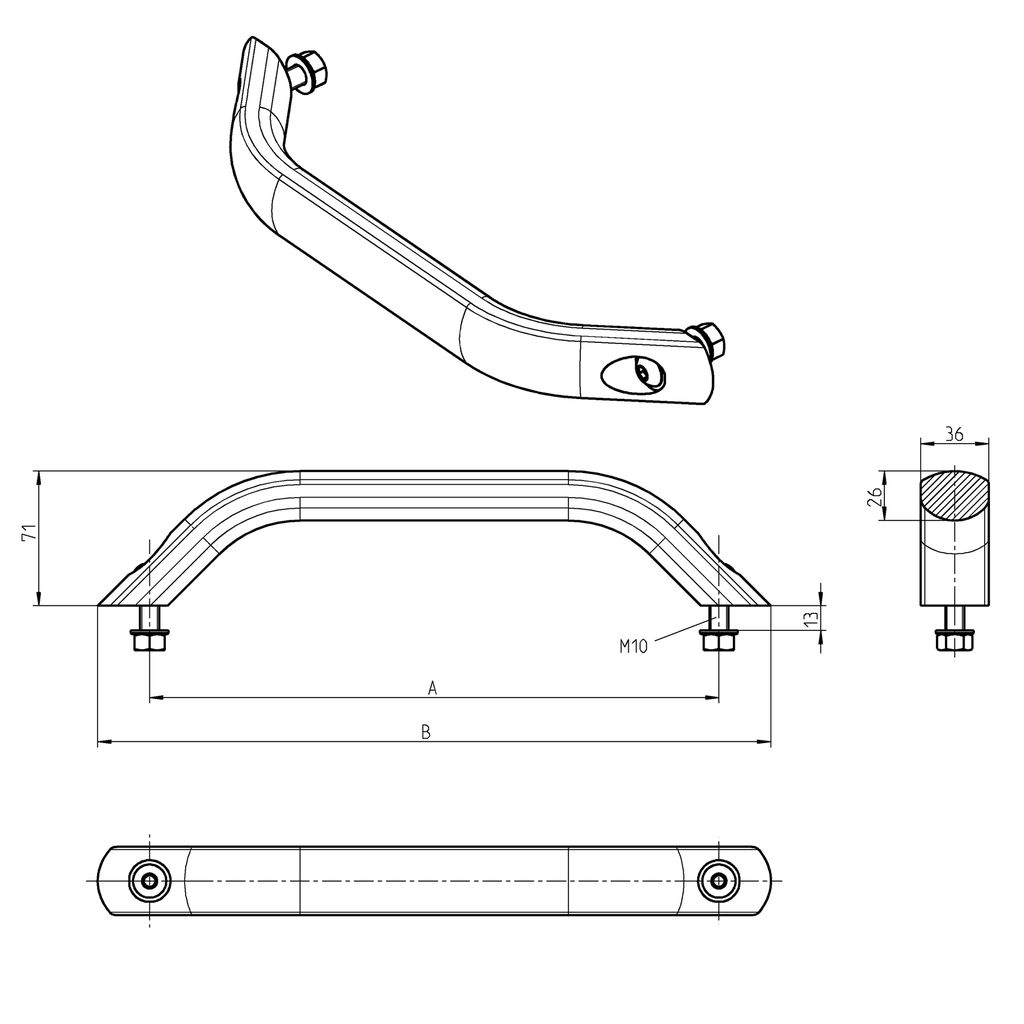

A = 500 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U36-500AA
    Product Type: Handle
    Program: 1095
    Catalog sheet: 6A-210
    Material of the module : Aluminium
    Surface of the module: black
    Dimension A: 500 mm
    Dimension B: 555 mm
    Fixing type of handle: screw-on from outside
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-210
    CAD file | 1095-U36-500AA_igs
    CAD file | 1095-U36-500AA_stp
