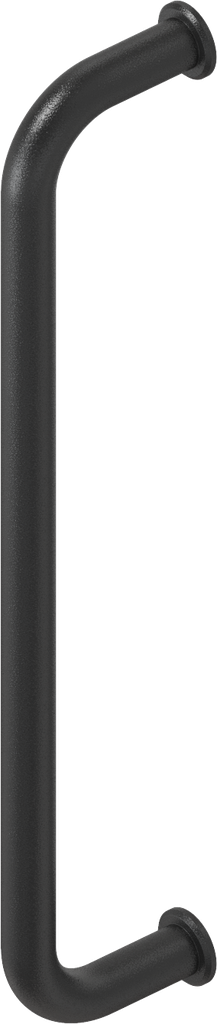

Bow-type handle, Steel black plastic-coated; 1095-U35-200RA

https://www.emka.com/products/1095-u35-200ra https://www.emka.com/web/image/product.template/215473/image_1920?unique=824f0e6

A = 200 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U35-200RA
    Product Type: Handle
    Material: Steel
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-190

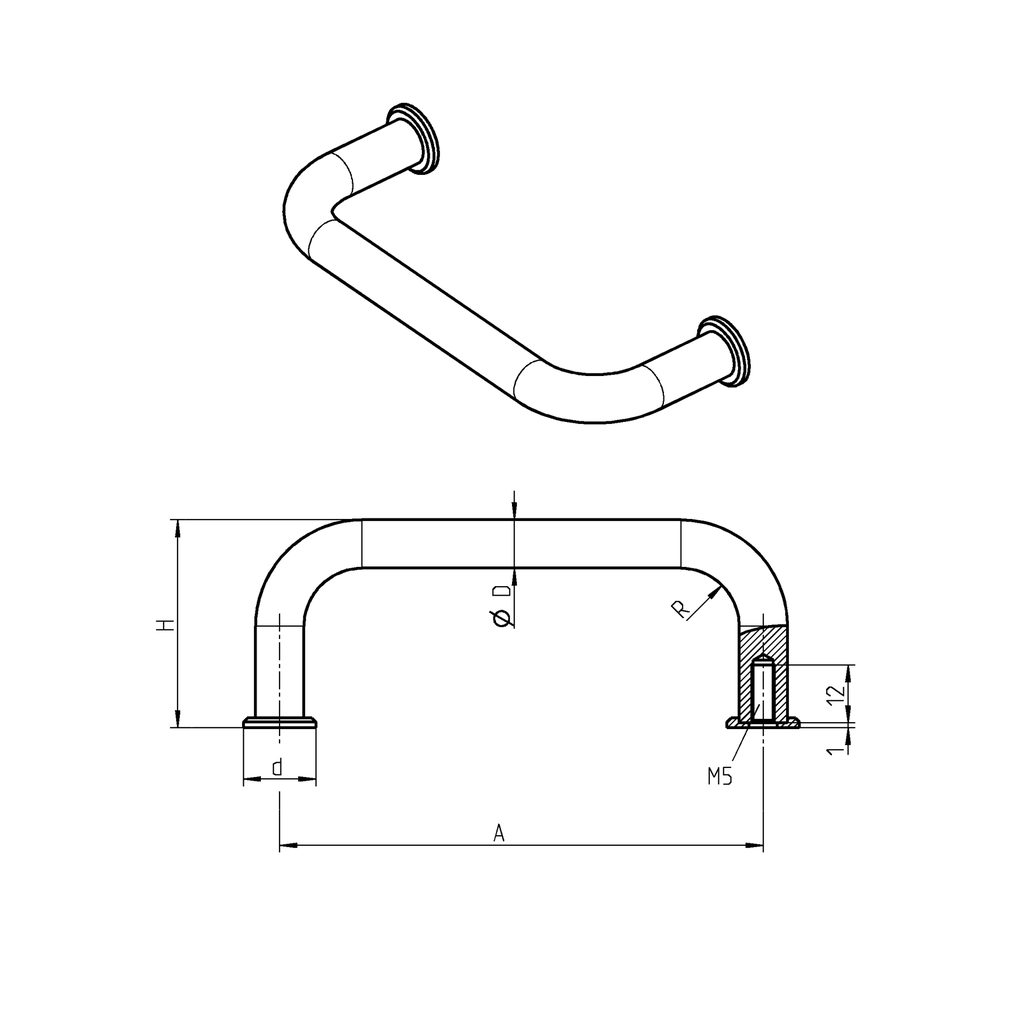

    Dimension A: 200 mm
    Fixing type of handle: screw-on from inside
    Dimension d: 15 mm
    Dimension D: 10 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 43 mm
    Dimension R: 12 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-190
    CAD file | 1095-U35-200RA_igs
    CAD file | 1095-U35-200RA_stp
