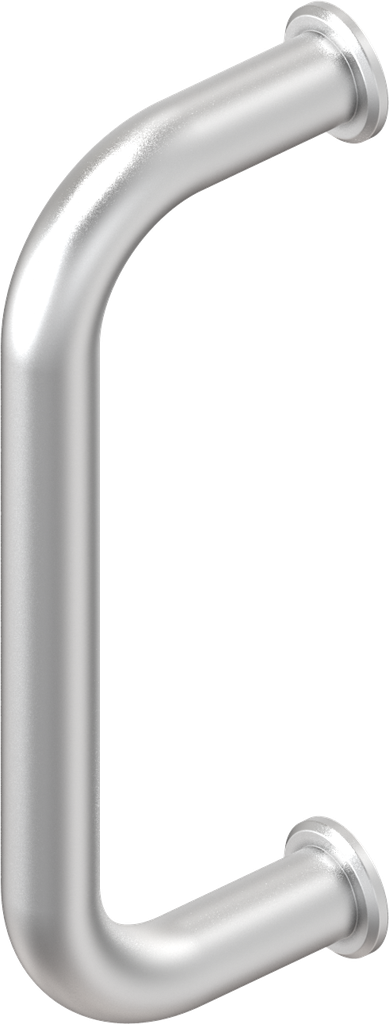

Bow-type handle, Stainless steel AISI 316L; 1095-U35-100PK

https://www.emka.com/products/1095-u35-100pk https://www.emka.com/web/image/product.template/215468/image_1920?unique=f86255a

A = 100 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U35-100PK
    Product Type: Handle
    Material: Stainless steel AISI 316L
    Program: 1095
    Catalog sheet: 6A-190

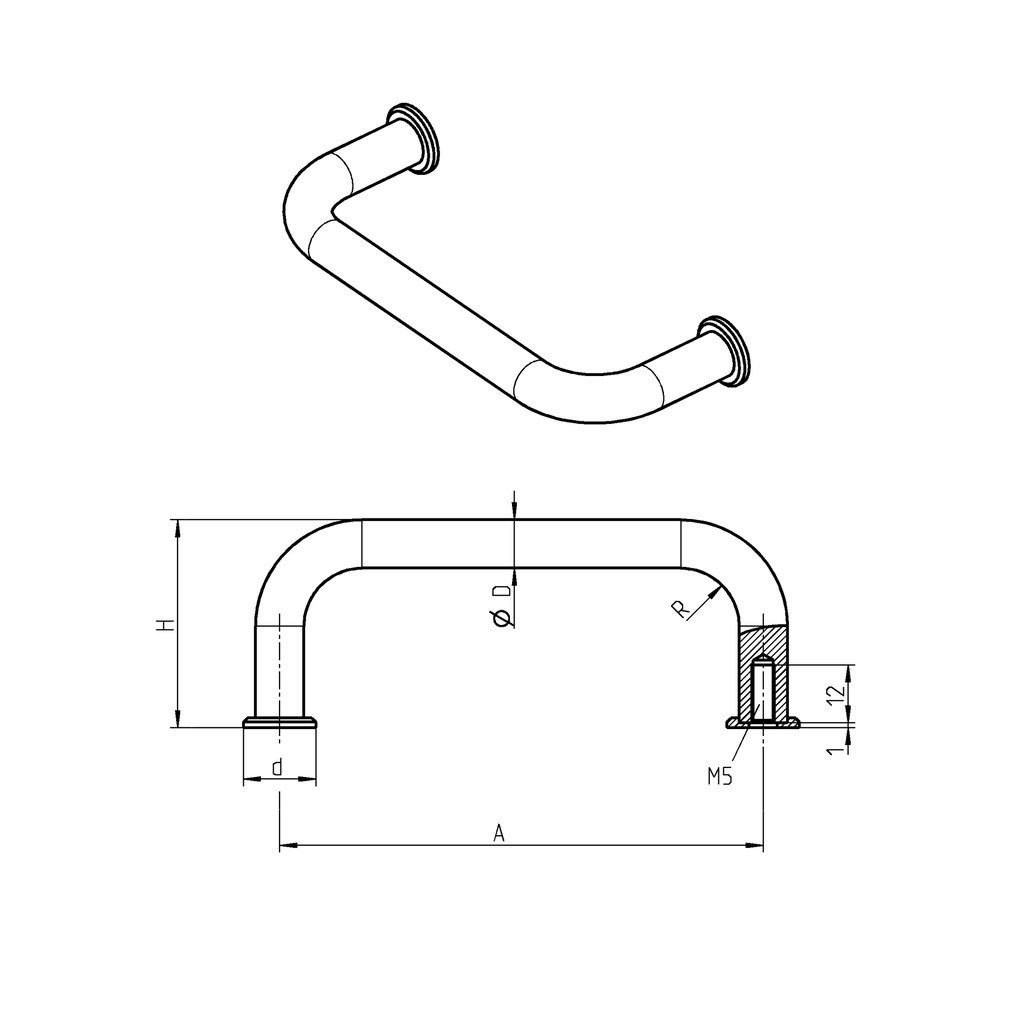

    Dimension A: 100 mm
    Fixing type of handle: screw-on from inside
    Dimension d: 15 mm
    Dimension D: 10 mm
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 43 mm
    Dimension R: 12 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-190
    CAD file | 1095-U35-100PK_igs
    CAD file | 1095-U35-100PK_stp
