Edge handle, Aluminium black
Edge handle, Aluminium black
Edge handle, Aluminium black
Edge handle, Aluminium black

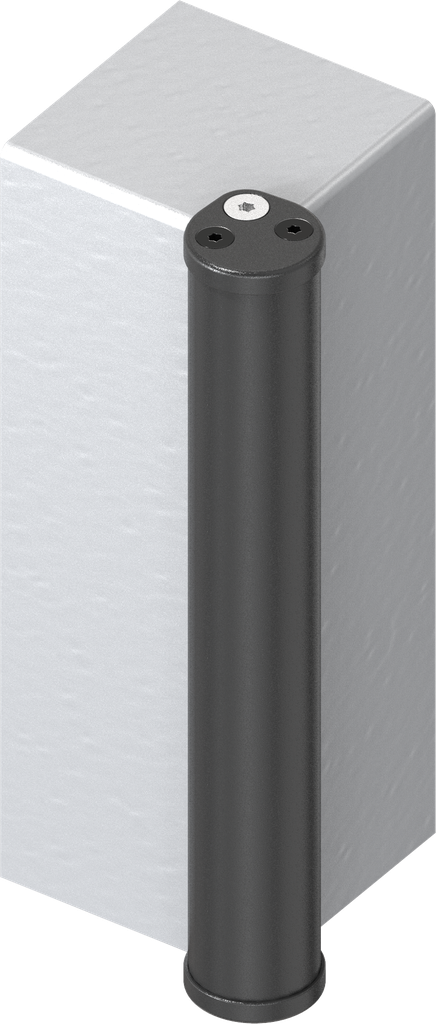

Edge handle, Aluminium black; 1095-U33-400AA

https://www.emka.com/products/1095-u33-400aa https://www.emka.com/web/image/product.template/62283/image_1920?unique=2a18f4f

A = 400 mm

    This combination does not exist.

    Contact Us

    Akeneo Note:

    Fixing material is not included in scope of delivery.
    Internal Reference: 1095-U33-400AA
    Product Type: Handle
    Program: 1095
    Catalog sheet: 6A-420
    Material of the module : Aluminium
    Surface of the module: black

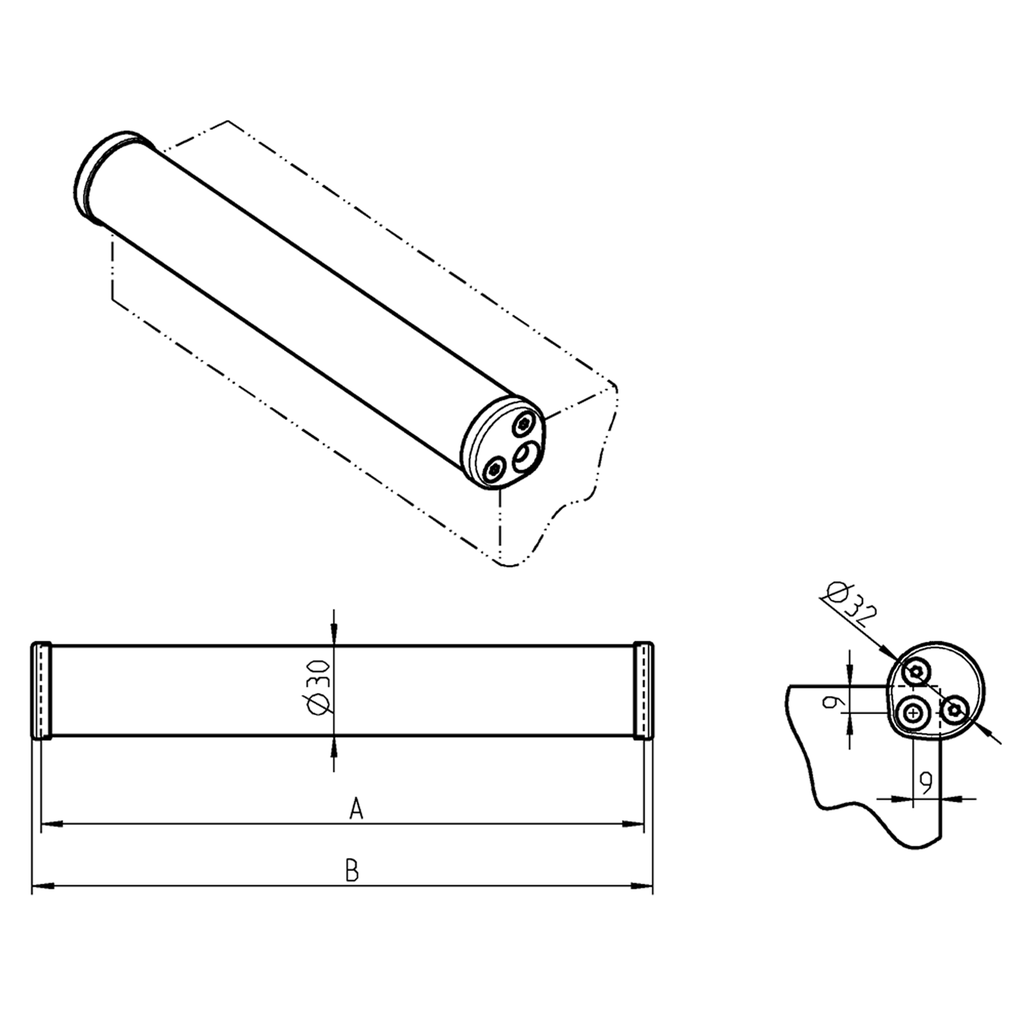

    Dimension A: 400 mm
    Dimension B: 406 mm
    Fixing type of handle: screw-on from outside
    Handle Art(2): Edge handle
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
