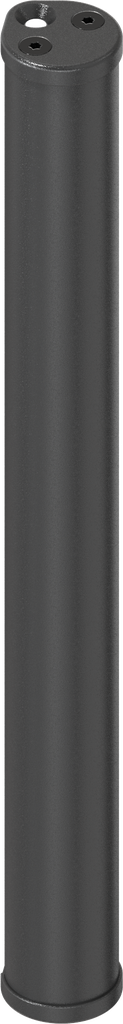

Edge handle, Aluminium black; 1095-U33-300AA

https://www.emka.com/products/1095-u33-300aa https://www.emka.com/web/image/product.template/62282/image_1920?unique=165925b

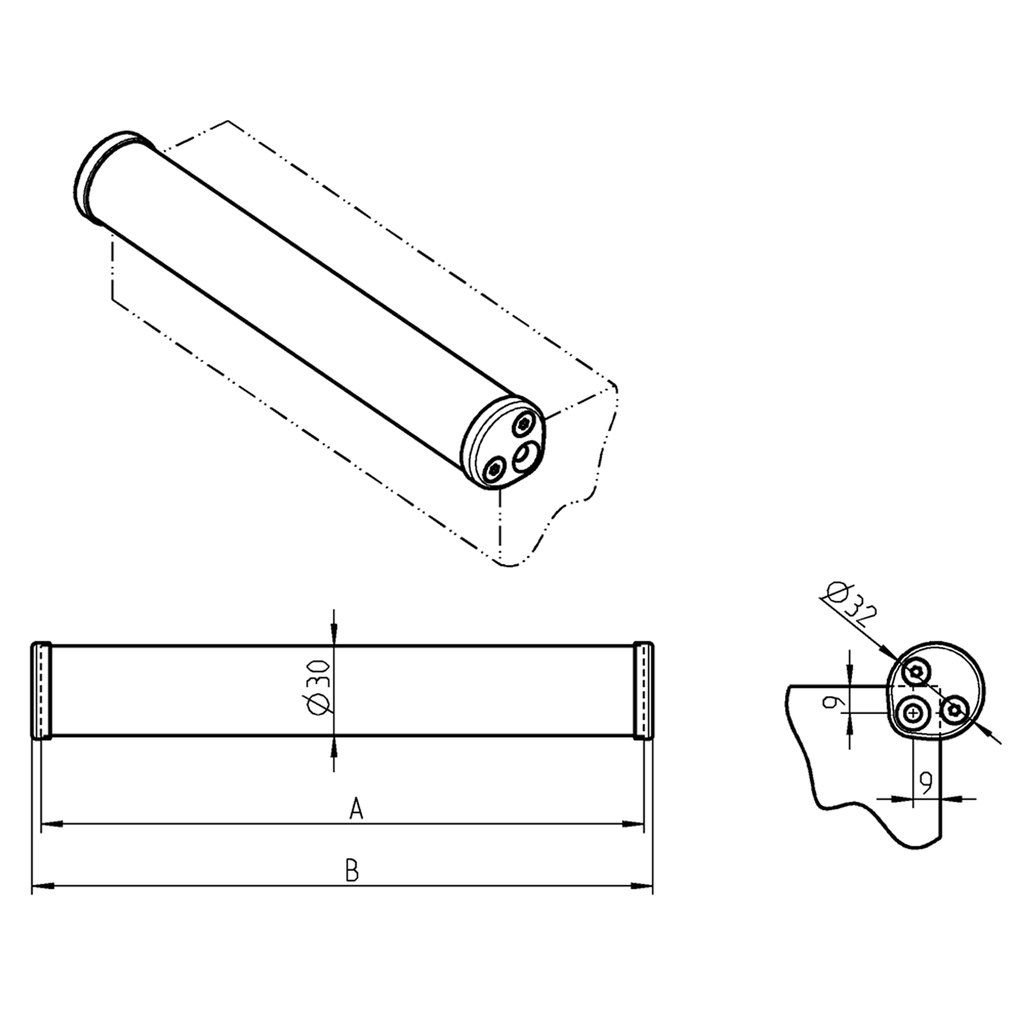

A = 300 mm

    This combination does not exist.

    Contact Us

    Akeneo Note:

    Fixing material is not included in scope of delivery.
    Internal Reference: 1095-U33-300AA
    Product Type: Handle
    Program: 1095
    Catalog sheet: 6A-420
    Material of the module : Aluminium
    Surface of the module: black
    Dimension A: 300 mm
    Dimension B: 306 mm
    Fixing type of handle: screw-on from outside
    Handle Art(2): Edge handle
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
