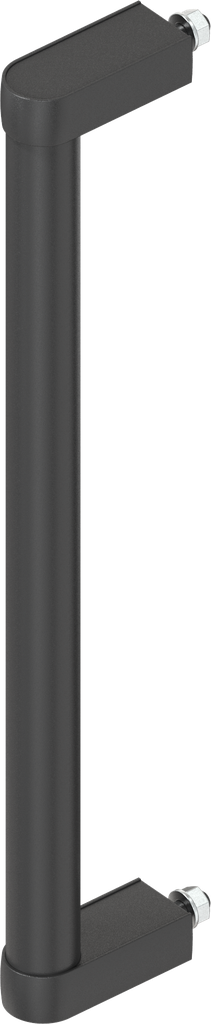

Tube handle, Aluminium black plastic-coated; 1095-U31-400AA

https://www.emka.com/products/1095-u31-400aa https://www.emka.com/web/image/product.template/215458/image_1920?unique=2a18f4f

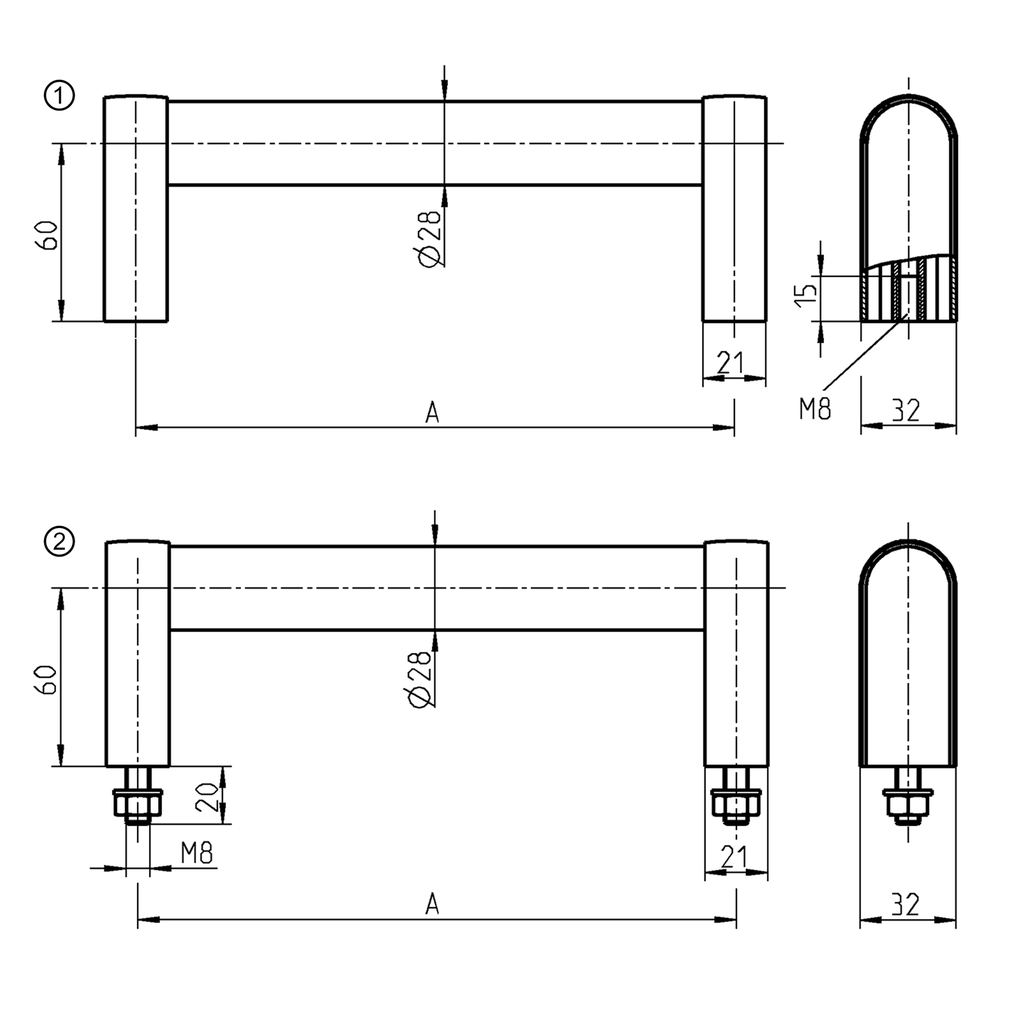

A = 400 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U31-400AA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-360
    Dimension A: 400 mm
    Execution: ②
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x20
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-360
    CAD file | 1095-U31-400AA_igs
    CAD file | 1095-U31-400AA_stp
