Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated
Tube handle, Aluminium black plastic-coated

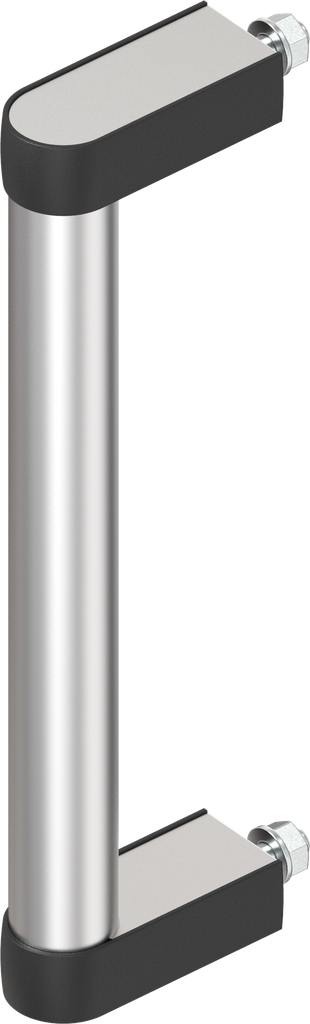

Tube handle, Aluminium anodized; 1095-U31-250NA

https://www.emka.com/products/1095-u31-250na https://www.emka.com/web/image/product.template/215457/image_1920?unique=2a18f4f

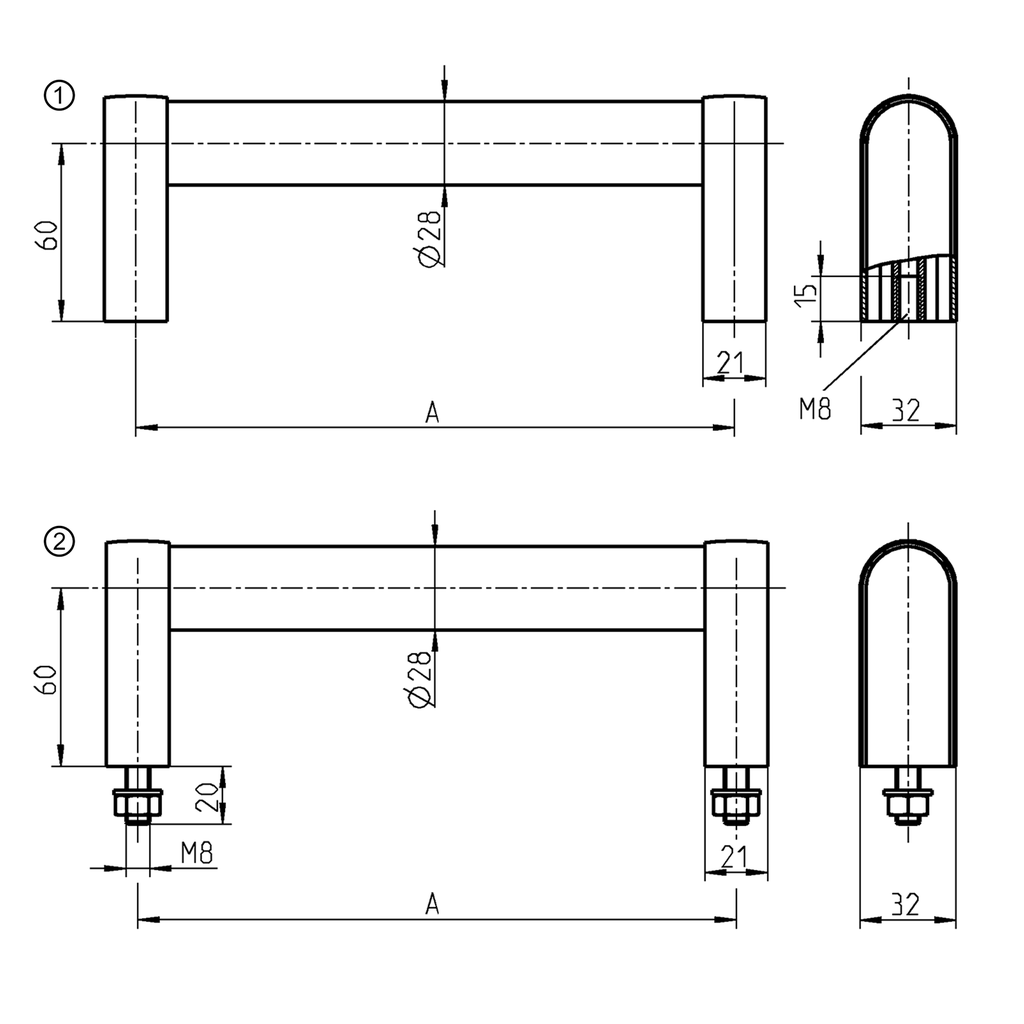

A = 250 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-U31-250NA
    Product Type: Handle
    Material: Aluminium
    Program: 1095
    Surface: anodized
    Catalog sheet: 6A-360
    Dimension A: 250 mm
    Execution: ②
    Fixing type of handle: screw-on from inside
    G = thread specification: M8x20
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-360
    CAD file | 1095-U31-250NA_igs
    CAD file | 1095-U31-250NA_stp
